2.3 Front Panel Introduction

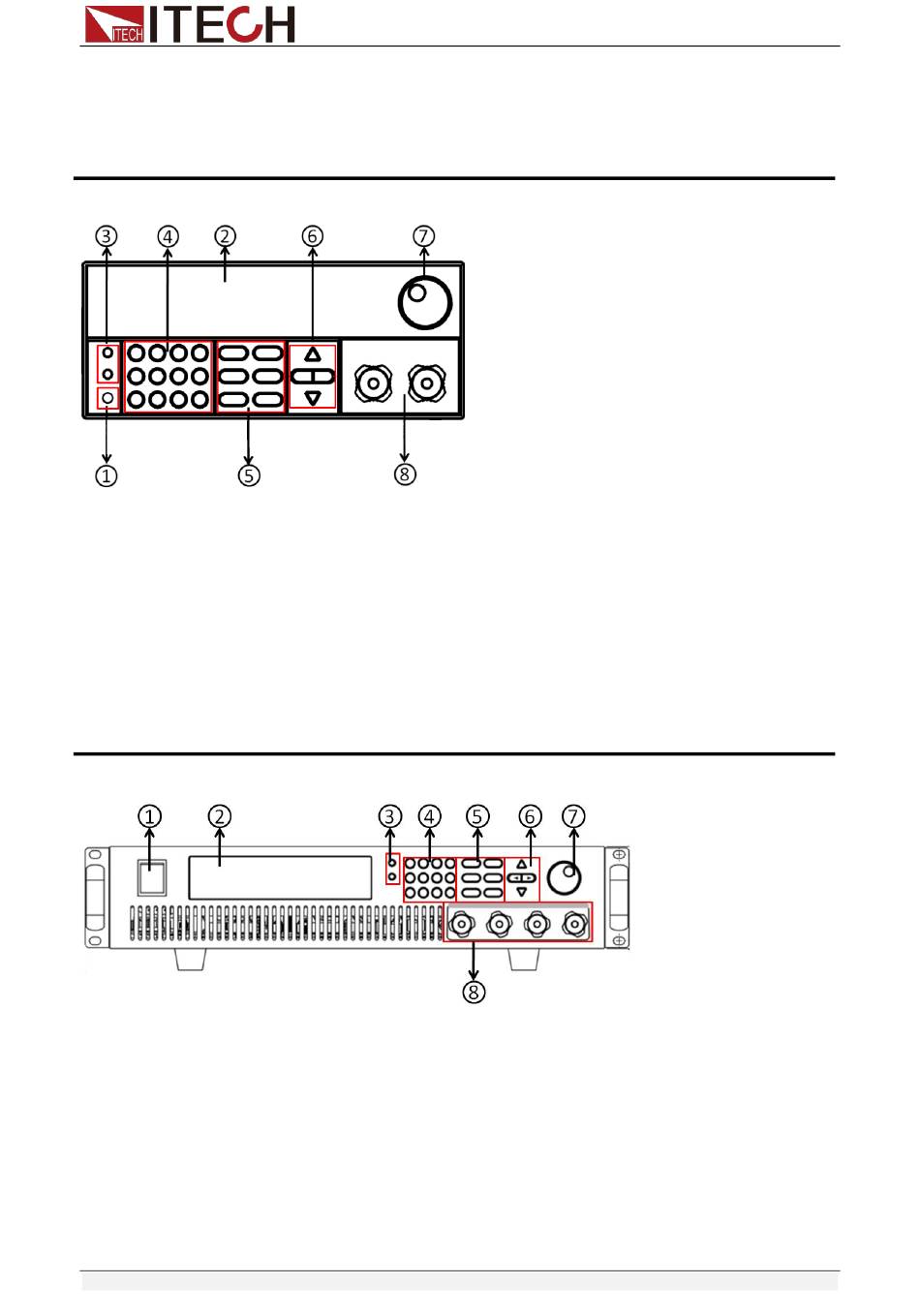

IT8500+ series electronic load different models have different front panels, the
front panels and keyboards of different models are shown as below.
IT8511+/IT8511A+/IT8511B+/IT8512+/IT8512A+/IT8512B+/IT8512C+/IT8512H+
Model
13C+
① Power switch
② Vacuum fluorescent display (VFD)
③ Compound key and the local switch key
④ Number key:
Set the parameters value, achieve the
menu's function by key combination
IT8513B+/IT8514B+/IT8514C+ Model
① Power switch
② Vacuum fluorescent display (VFD)
③ Compound key and the local switch key
④ Number key:
Set the parameters value, achieve the
menu's function by key combination
⑤ Function key:
Set the operation mode
Control the input state: On/Off
⑥ Direction function
⑦ Rotary knob
⑧ Input terminal
⑤ Function key:
Set the operation mode
Control the input state: On/Off
⑥ Direction function
⑦ Rotary knob
⑧ Input terminal
