Drain
Ports
Bluetooth
ID# Label
Included Equipment
Spectrometer
Cuvette and Lid (10)
USB Cable
Optional Equipment
Fiber Optic Probe
Also Required
Software for Computer or Tablet
PASCO Spectrometry
Available free for Mac, PC, iOS, and Android* devices at
the PASCO web site: www.pasco.com/spectrometer
*NOTE: The Android tablet needs Bluetooth capability.

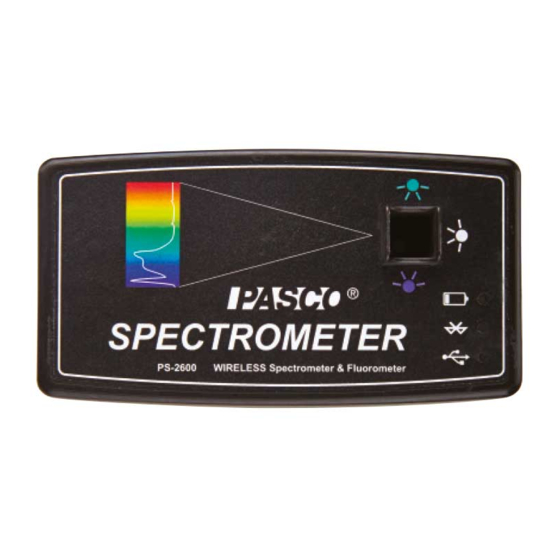

Spectrometer
Top
Cuvette Holder
Light Path
Bottom
Part Number
PS-2600
PS-2538
PS-2601
®
techsupp@pasco.com
PS-2600
Cuvette and Lid (10)
Software: Other Sources
The PASCO Spectrometry software is also available from the
Apple App Store and from Google play.
Initial Step: Charge the Battery
The PASCO Spectrometer is partially charged at the factory. The
PASCO Spectrometer battery is charged using the USB cable
connected to a USB port or USB charger. Let the Spectrometer be
connected for at least four hours before use. Leave the
Spectrometer off while charging. As the battery is charging, the
Battery Status LED (light-emitting diode) will blink red. When
the battery is fully charged, the Battery Status LED shines green.
The charger circuit inside the unit turns itself off when the unit is
fully charged, so it can't be overcharged.
+1 916 786 3800
Reference Guide
013-14074A
Right End
USB
ON/OFF
Port
Button
Battery Status LED
Bluetooth Status LED
USB Status LED
Left End
Reset Button Access
