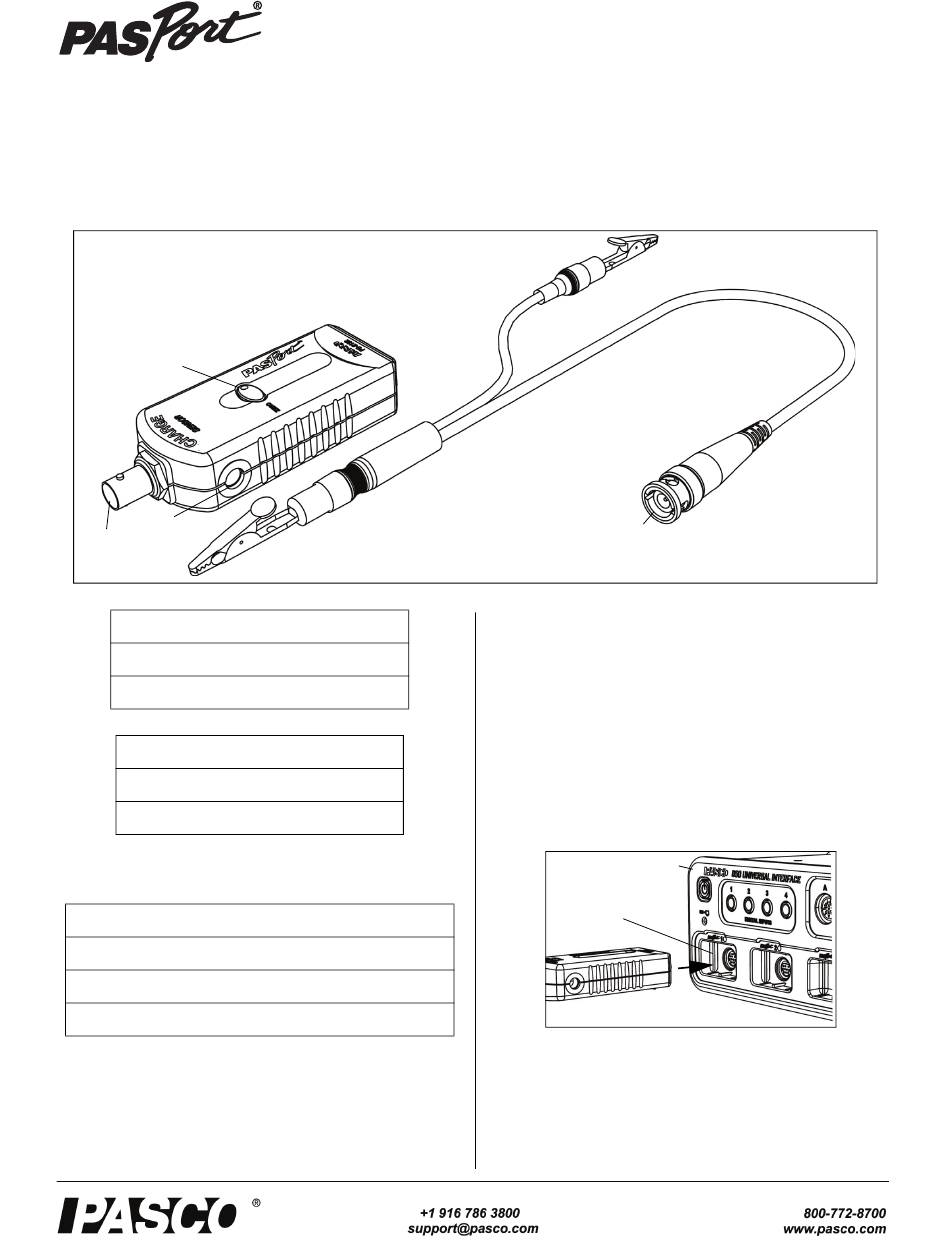

PASCO Pasport PS-2132 Instruction Sheet

ZERO
Button
Threaded
BNC
Hole
Port
.

Included Items

Charge Sensor
BNC-to-Alligator Clip Cable

Required Items*

PASCO Interface
PASCO Data Acquisition Software
*See the PASCO catalog or the PASCO web site at www.pasco.com
for more information.

Recommended Items*

Faraday Ice Pail (ES-9042A)
Charge Producers and Proof Plane (ES-9057C)
PASPORT Sensor Extension Cable (PS-2500)

Introduction

The PS-2132 Charge Sensor measures charge in coulombs
(C) and voltage in volts (V). The sensor is designed to work
with a PASPORT-compatible interface (such as the UI-5100
850 Universal Interface) and PASCO data acquisition soft-
Charge Sensor
PS-2132
ware (such as PASCO Capstone) to measure charge and volt-
age.
The sensor includes a BNC-to-Alligator Clip cable that can
be connected to the BNC port on the sensor and to electro-
static equipment such as the Faraday Ice Pail. The sensor
also has a "ZERO" button that can be used to zero the sensor
by removing residual charge.

Setup the Sensor

•
NOTE: If more distance is needed between the sensor and
the interface, plug the sensor into the included Sensor Exten-
sion Cable, and then plug the cable into the interface.
•
BNC-to-Alligator
Clip Cable
BNC Plug
Plug the sensor into one of the PASPORT input ports of
a PASCO PASPORT-compatible interface.
Interface
PASPORT
Input Port
Sensor
Start the PASCO data acquisition software.
