PASCO Pasport PS-2136 Quick Start

3-Axis Acceleration-Altimeter
PS-2136
Sensor Specifications:
Sensor ranges:
Accuracy:
Default sample rate:
Maximum sample rate:
*
The altitude is the height relative to sea level (in meters). Altitude
readings will vary with local variations in barometric pressure. The
sensor will resolve better than 0.3 meters.
®
Procedure:
Acceleration: -10 to +10 g
*:
Altitude 0 to 7000 meters
Acceleration: 1%
*
Altitude : 1 meter for changes not
exceeding 100 meters
20 samples/per second
20 samples/per second
800-772-8700 • 916-786-3800 • techsupp@pasco.com • www.pasco.com
Ac celera tion Quick S tart

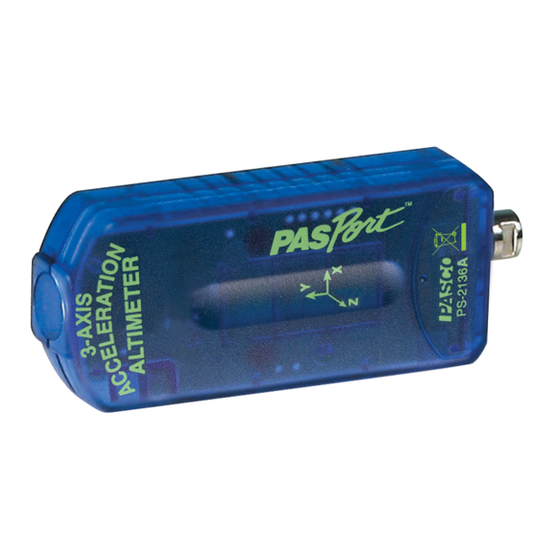

The PS-2136 3-Axis Acceleration Altimeter measures acceleration (in m/s/s or g)
along three axes (x,y, and z) and altitude (in feet or meters).
A d d i t i o na l E q ui p me n t N ee d e d
™
• PASPORT interface (USB Link, PowerLink, etc.) with USB-compatible computer
or a PS-2000 Xplorer
®
• EZscreen or DataStudio
E qu i p m en t S e t up
1. Connect the PASPORT interface to a USB port on your computer or to a USB hub.
2. Connect the sensor to a PASPORT interface. (If using an Xplorer in the classroom,
connect the Xplorer cable to your computer.)
3. The software launches when it detects a PASPORT sensor. Select a point of entry.
1
software (version 1.8.5 or later)
2
3
CARD 1A
012-08511A
