PASCO PS-2601 Instruction Sheet

Spectrometer Fiber Optic Probe
Included Equipment

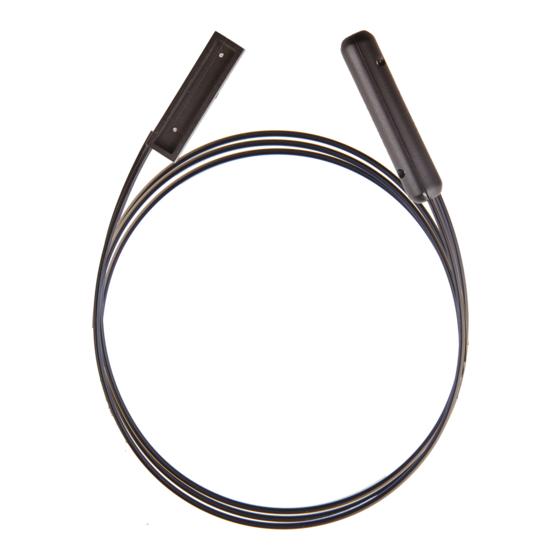

Fiber Optic Probe
Required Equipment
Spectrometer
Required for the Spectrometer
Software for Computer or Tablet
PASCO Spectrometry
Available free for Mac, PC, iOS, and Android* devices at
the PASCO web site: www.pasco.com/spectrometer
*NOTE: The Android tablet needs Bluetooth capability.
Software: Other Sources
The PASCO Spectrometry software is also available from the
Apple App Store and from Google Play.
®
Fiber Optic
Cable
Place in the cuvette
opening of the PS-2600
Spectrometer.
Part Number
PS-2601
PS-2600
PS-2601
Arrows show
which way to
orient the probe.
Introduction
The PASCO Fiber Optic Probe is specifically designed for use
with the PASCO Spectrometer (PS-2600) in introductory
spectroscopy experiments. The Fiber Optic Probe makes it
possible to examine the spectra of objects and substances that
cannot be put into the plastic cuvettes that come with the
Spectrometer. With the Fiber Optic Probe and Spectrometer,
measure intensity, absorbance, transmittance, and fluorescence.
Using the Fiber Optic Probe with the
Spectrometer
The end of the Fiber Optic Probe that fits into the cuvette
opening of the Spectrometer has arrows on its label. Turn the
rectangular housing so that the arrows point toward the sensing
element (away from the light emitting diode) inside the
Spectrometer, and put the housing into the cuvette opening.
Sensing element
Instruction Sheet
012-14335A
Fiber Optic
Housing
Fiber Optic
Window
Direction that
arrows
should point
Cuvette
opening
