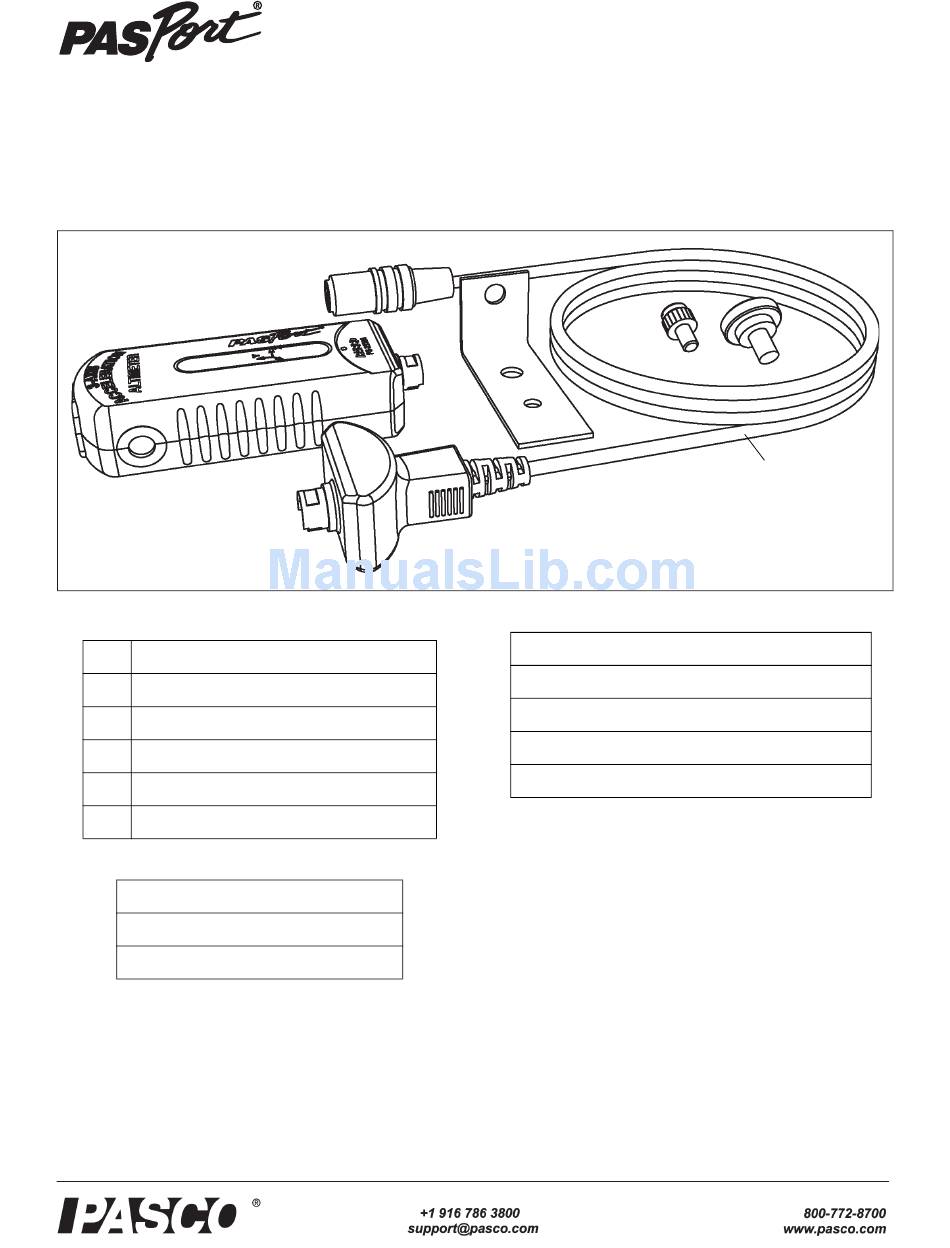

PASCO PS-2136A Instruction Sheet

3-axis acceleration/altimeter sensor

Advertisement

Quick Links

3-Axis Acceleration/Altimeter Sensor
1.
.

Included Items

1.
3-Axis Acceleration/Altimeter Sensor
2.
Mounting Bracket
3.
Smaller Thumbscrew
4.
Larger Thumbscrew
5.
Sensor Extension Cable (PS-2500)

Required Items*

PASCO Interface
PASCO Data Collection Software
*See the PASCO catalog or the PASCO web site at www.pasco.com
for more information.
PS-2136A
2.

Recommended Items*

PASCO Cart
PASCO Dynamics Track
Angle Indicator
PASCO Xplorer GLX Vest
The PS-2136A 3-Axis Acceleration/Altimeter Sensor
is capable of five simultaneous measurements:
acceleration (change of velocity with respect to time)
in three axes: X, Y, and Z, resultant acceleration,
and altitude. The units of measure for acceleration
2
include m/s
(acceleration due to Earth gravity), and the units for
Altitude include meters (m) and feet (ft).
The sensor is designed to work with a
PASPORT-compatible interface and PASCO data
collection software.
Instruction Sheet
0 1 2 - 0 8 5 1 1 D
3.
5.
(meters per second squared) and g
4.
