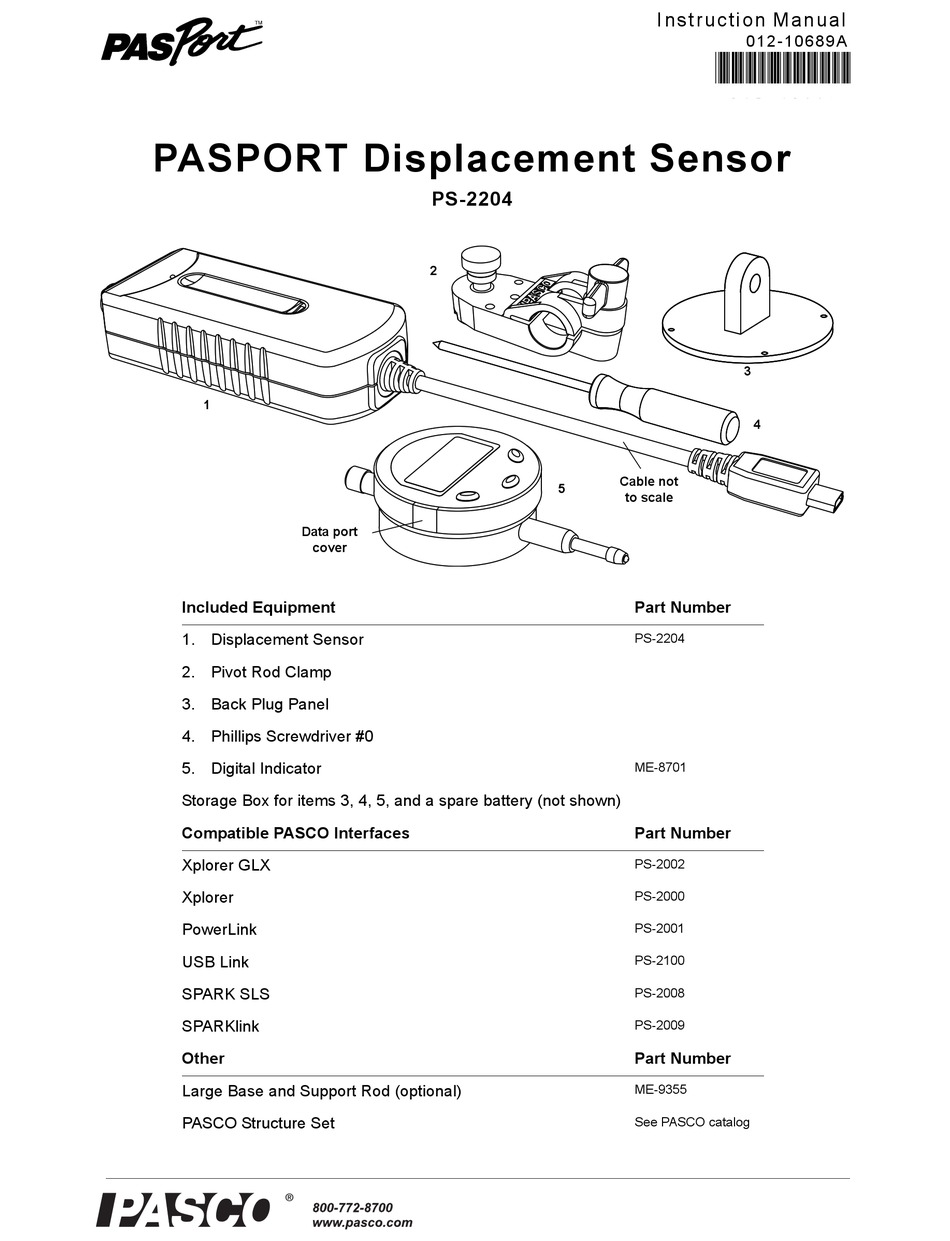

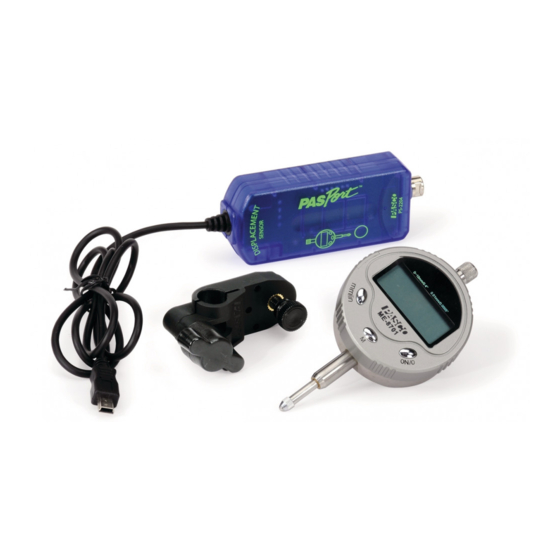

PASPORT Displacement Sensor
1
Data port
cover
Included Equipment
1. Displacement Sensor
2. Pivot Rod Clamp
3. Back Plug Panel
4. Phillips Screwdriver #0
5. Digital Indicator
Storage Box for items 3, 4, 5, and a spare battery (not shown)
Compatible PASCO Interfaces
Xplorer GLX
Xplorer
PowerLink
USB Link
SPARK SLS
SPARKlink
Other
Large Base and Support Rod (optional)
PASCO Structure Set
®
PS-2204
2
5
Instruction Manual
012-10689A
*012-10689*
3
4
Cable not
to scale
Part Number
PS-2204
ME-8701
Part Number
PS-2002
PS-2000
PS-2001
PS-2100
PS-2008
PS-2009
Part Number
ME-9355
See PASCO catalog

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PASPORT PS-2204 and is the answer not in the manual?

Questions and answers

Related Manuals for PASCO PASPORT PS-2204

Summary of Contents for PASCO PASPORT PS-2204

  • Page 1 2. Pivot Rod Clamp 3. Back Plug Panel 4. Phillips Screwdriver #0 5. Digital Indicator ME-8701 Storage Box for items 3, 4, 5, and a spare battery (not shown) Compatible PASCO Interfaces Part Number Xplorer GLX PS-2002 Xplorer PS-2000 PowerLink...
  • Page 2 The Displacement Sensor is ideally suited to measure the small deflections of mem- bers of a structure built using one of PASCO’s Structure Sets. For example, the sensor can dynamically measure the deflection of the road bed of a bridge when a load is applied to the structure.

  • Page 3: Measurement Setup

    M o d e l N o . P S - 2 2 0 4 S e t u p About the Digital Indicator The Digital Indicator has a four and one-half digit liquid crystal display (LCD), a measuring head, lower sleeve, and three function buttons (ON/O, M, and mm/in). Zero-setting can be done at any position of the measuring head to allow differential measurement..

  • Page 4: Hardware Setup

    DataStudio Setup If you will be using the PASPORT Displacement Sensor with a computer, install the latest version of DataStudio first. Check the PASCO web site at www.pasco.com for information. When you connect the PASPORT Displacement Sensor to the computer through a PASPORT interface, the PASPortal window will launch automatically (if Data- Studio is not already running).

  • Page 5: Specifications

    M o d e l N o . P S - 2 2 0 4 M e a s u r e m e n t s Measurements The following are examples of Digits displays for displacement in millimeters (mm) and thousandths of an inch (mils).

  • Page 6: Technical Support

    Email: support@pasco.com Limited Warranty For a description of the product warranty, see the PASCO catalog. Copyright The PASCO scientific 012-10689A PASPORT Displacement Sensor Instruction Manual is copyrighted with all rights reserved. Permission is granted to non-profit educational institutions for reproduction of any part of this manual, providing the reproductions are used only in their laboratories and classrooms, and are not sold for profit.
