PROTO1 Xplained Pro." on page
12). It lacks any GND/VCC rails so they needs to be connected directly.
These boards can be found at a low cost from lots of vendors on internet.

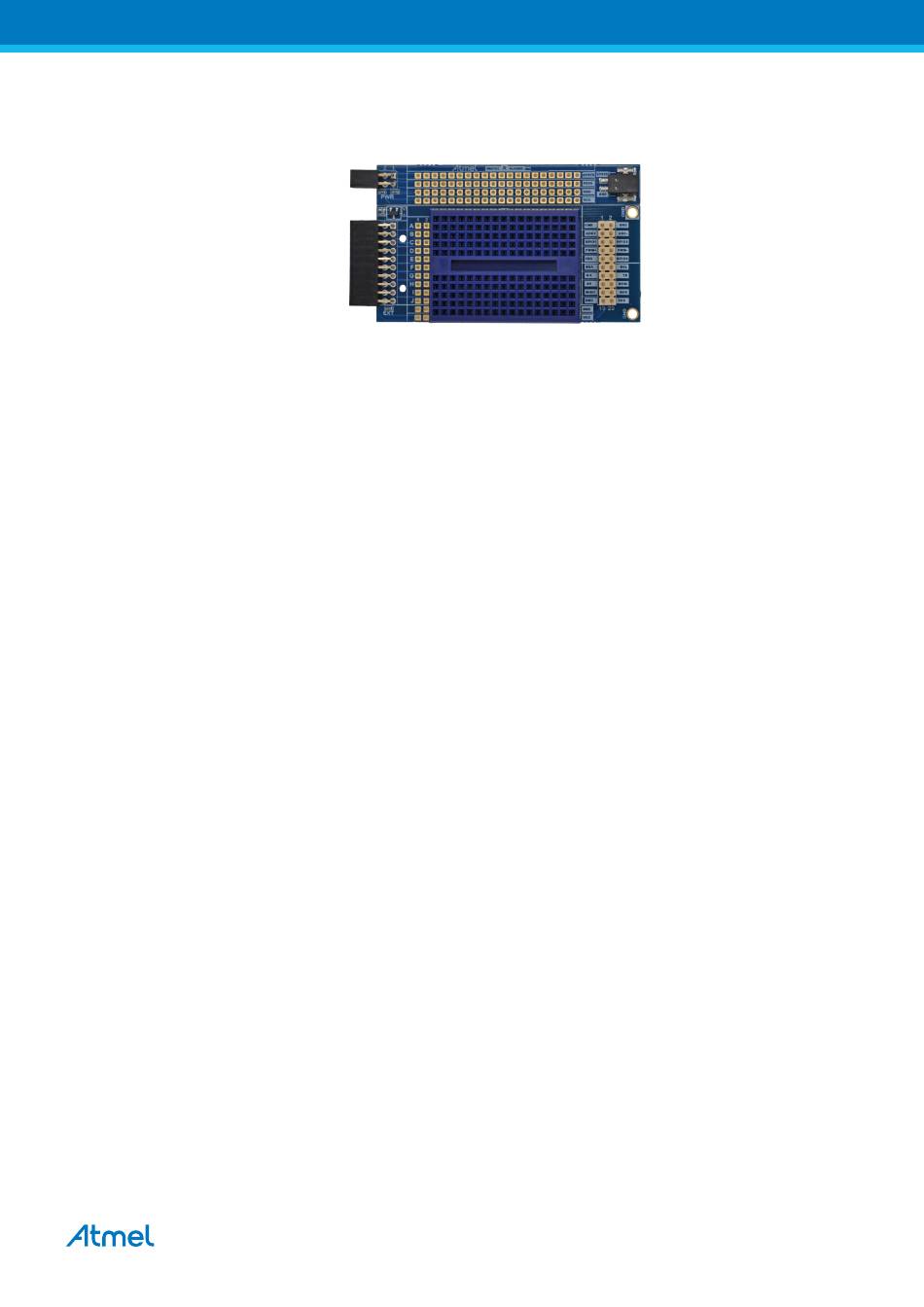

Figure 4-8. Solderless Breadboard Mounted on PROTO1 Xplained Pro.
Atmel PROTO1 Xplained Pro [USER GUIDE]
12
42080B-MCU-10/2013
