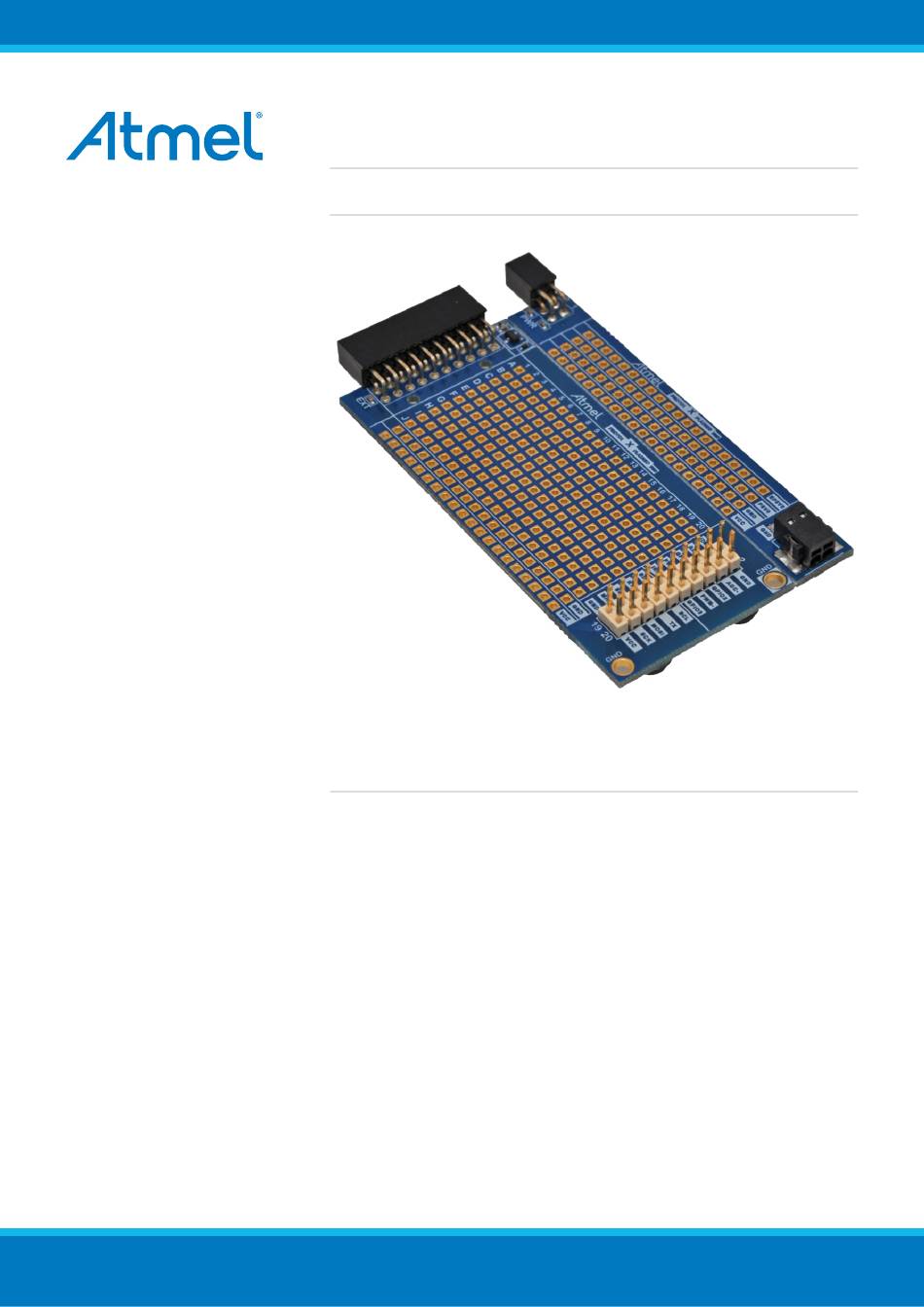

USER GUIDE
Atmel PROTO1 Xplained Pro
Preface

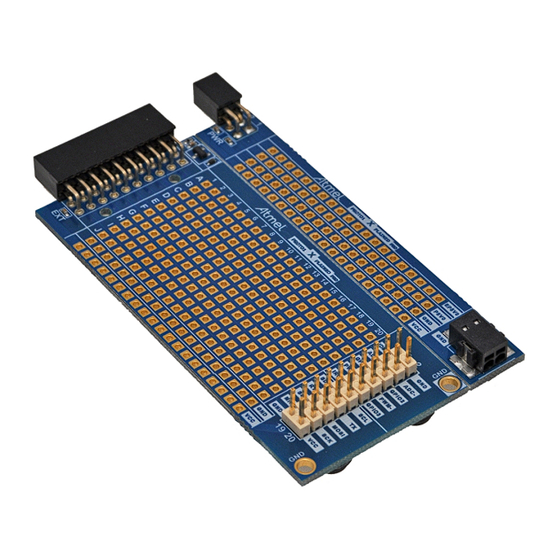

The Atmel® PROTO1 Xplained Pro extension board is a development board
that can be used to prototype small circuits and easy connect it to Xplained Pro
MCU boards through one of the standard extension headers. It includes an ID
chip and will be recognized by Atmel Studio. It can also be used to interface
older Xplained top-modules like sensor boards. There is a separate connector
available to connect external power to a Xplained Pro series evaluation kits. This
section can be separated from the prototype section to be used standalone or
not at all.
42080B-MCU-10/2013
Advertisement
Table of Contents
Related Manuals for Atmel PROTO1 Xplained Pro
Summary of Contents for Atmel PROTO1 Xplained Pro
-
Page 1: Preface
Xplained Pro MCU boards through one of the standard extension headers. It includes an ID chip and will be recognized by Atmel Studio. It can also be used to interface older Xplained top-modules like sensor boards. There is a separate connector available to connect external power to a Xplained Pro series evaluation kits. -
Page 2: Table Of Contents
Features ................3 1.2. Kit Overview ................. 3 2. Getting Started ................ 5 2.1. Three Steps to Start Exploring the Atmel Xplained Pro Platform ..5 2.2. Connecting PROTO1 Xplained Pro to the Xplained Pro MCU Board.................. 5 2.3. -
Page 3: Introduction
Support for Xplained series extension modules Kit Overview The Atmel PROTO1 Xplained Pro board is a generic prototyping extension board for the Xplained Pro platform. It connects to any standard extension header on any Xplained Pro MCU board and thus is offers an easy way to do prototyping with the Xplained Pro platform. - Page 4 Figure 1-1. PROTO1 Xplained Pro Extension Board, Top View. Figure 1-2. PROTO1 Xplained Pro Extension Board, Bottom View. Atmel PROTO1 Xplained Pro [USER GUIDE] 42080B-MCU-10/2013...
-
Page 5: Getting Started
Studio. 2. Launch Atmel Studio. 3. Connect PROTO1 Xplained Pro to an Xplained Pro MCU board and connect a USB cable to DEBUG USB port on the Xplained Pro MCU board. Connecting PROTO1 Xplained Pro to the Xplained Pro MCU Board. -
Page 6: Xplained Pro
Xplained Pro is an evaluation platform that provides the full Atmel microcontroller experience. The platform consists of a series of Microcontroller (MCU) boards and extension boards that are integrated with Atmel Studio, have Atmel Software Framework (ASF) drivers and demo code, support data streaming and more. -
Page 7: Power Header
Pro is connected to the EXT1 extension header on the the Xplained Pro MCU board. It can be used to power the Xplained Pro MCU board from an external source or to get internal power from the Xplaiend Pro MCU board to the PROTO1 Xplained Pro Atmel PROTO1 Xplained Pro [USER GUIDE]... -
Page 8: Hardware User Guide
PROTO1 Xplained Pro Extension Headers The PROTO1 Xplained Pro has two 20-pin headers. One is angled (left side of the board) and is intended to be connected to a Xplained Pro MCU board, standard extension header. The other is a vertical header (right side of the board) that can be used to connect signals to the prototype area or to attach other extension modules to it. -
Page 9: Proto1 Xplained Pro Id System
The PROTO1 Xplained Pro board has the Xplained Pro hardware identification system implemented. When the board is connected via an Atmel Xplained Pro MCU board to Atmel Studio it will be identified and relevant information like the user guide will be shown. By default the ID device on the board is connected to the right angled extension header and the ID X pin of the vertical extension header on the right side of the board is unconnected. -
Page 10: Connecting The Proto1 Xplained Pro
Now any connected Xplained Pro extension modules that are plugged into the vertical extension header on the right side of the board will be detected by Atmel Studio, the PROTO1 Xplained Pro extension board will not longer be detected. Connecting the PROTO1 Xplained Pro The lower part of the PROTO1 Xplained Pro board can be connected to all Xplained Pro MCU evalutation kits standard extension headers. -
Page 11: Connecting Xplained Extension Boards
Connecting Xplained Extension Boards It is also possible to interface Xplained top-modules via the PROTO1 Xplained Pro board. The signal layout on the extension connector below the white line, i.e. pins 11 - 20 is identical to the J1 connector (communication connector) on the Xplained series MCU boards (see Figure 4-6, “External Connector.”... - Page 12 12). It lacks any GND/VCC rails so they needs to be connected directly. These boards can be found at a low cost from lots of vendors on internet. Figure 4-8. Solderless Breadboard Mounted on PROTO1 Xplained Pro. Atmel PROTO1 Xplained Pro [USER GUIDE]...
-
Page 13: Hardware Revision History And Knonwn Issues
Revision 2 of PROTO1 Xplained Pro is the initial released version. PROTO1 Xplained Pro boards with a serial number that ends with a number lower than 19048 may have a wrong revision programmed into the Xplained Pro ID chip. This will only affect the information displayed by the Atmel Kits extension in Atmel Studio. -
Page 14: Document Revision History
Document revision history Document Date Comment revision 42080B 09/2013 Added errata about revision 2 of the board. 42080A 25/02/2013 First release Atmel PROTO1 Xplained Pro [USER GUIDE] 42080B-MCU-10/2013... -
Page 15: Evaluation Board/Kit Important Notice
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns. - Page 16 Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
