ACPL-C799 Evaluation Kit Board
User Guide

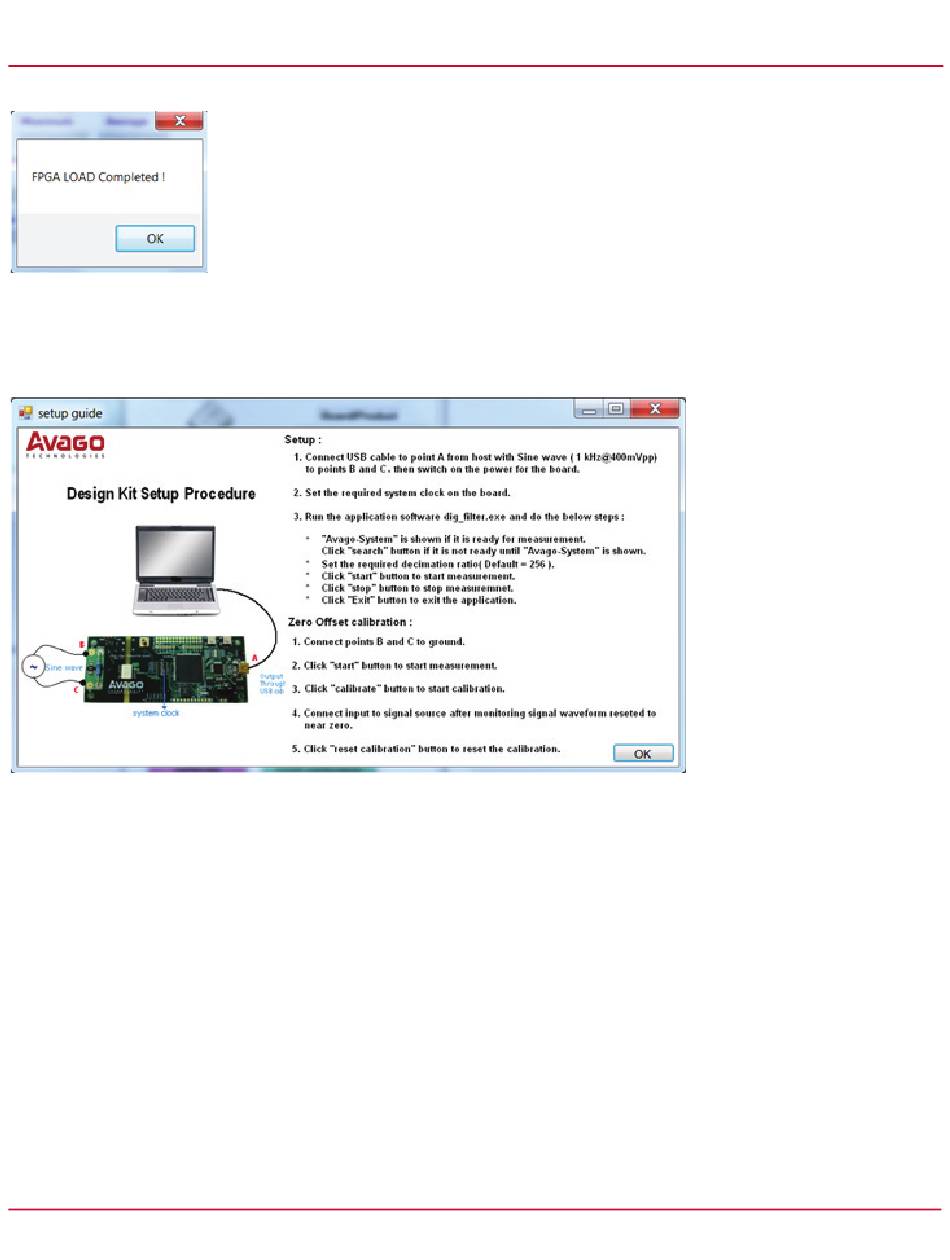

Figure 5 FPGA LOAD Completed! Pop-up
4.
For quick help guide, click Help on the top-right corner of the application GUI, then select setup guide. The help guide also
described the calibration procedure to zero the offset.
Figure 6 Help – setup guide
Broadcom
- 5 -
Application GUI
