ACPL-C799 Evaluation Kit Board
User Guide
Sinc3_VHDL.txt – Sinc3filter codes in VHDL
—
Sine wave files – sine waves configured to different frequencies 500 Hz, 1000 Hz, and 2000 Hz that can be played from any
—
audio players
3. Save the softcopy folder into a PC directory location. See the appendix for descriptions of the major components on the
evaluation board, the schematic diagrams and PCB layout.
4. Connect the evalboard to the PC using the provided USB cable. Turn on switch SW1. The red "5VIN" LED will light up indicating
the presence of a USB connection. Install the CDM20830_Setup.exe USB chipset driver file. The driver will install two ports, USB
Serial Converter A and USB Serial Converter B. To verify that the installation is successful, open Device Manager (right-click on
Computer, select Properties, then click Device Manager), under "Universal Serial bus controllers", the two ports "USB Serial
Converter A" and "USB Serial Converter B" should appear.
5. Each time the evalboard SW1 is turned on, the board goes through a series of power-on sequences. When completed, the
green "DONE" LED comes on to indicate completion of the power-on sequences.
6. Go to the PC directory, and run the dig_filter_50_rev1.exe application program. Refer to the application GUI screen capture as
4. If the evalboard is connected and SW1 switched on, Avago-System text message appears on the right of
shown in Figure
the Search button. If SW1 is not turned on, an error message appears, as shown in
GUI appears. The text message System not connected!! will appear instead.

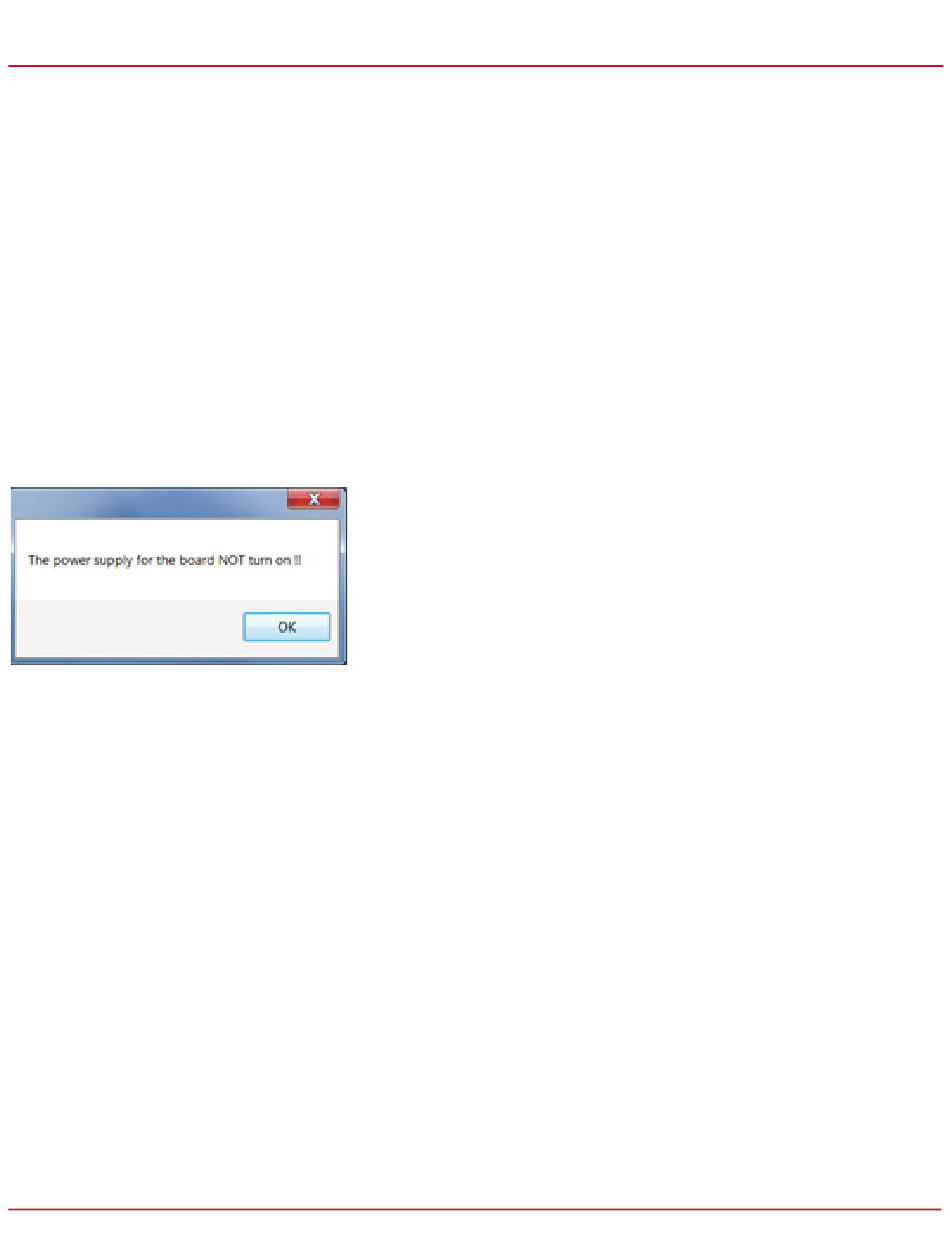

Figure 3 Error Message
7. Switch on SW1. Go to the application GUI, and click the Search button once. Now, the text message changes to
Avago-System to indicate that the connection is established.
Broadcom
- 3 -
Figure 3. Click OK once, and the application
Preparation and Setup
