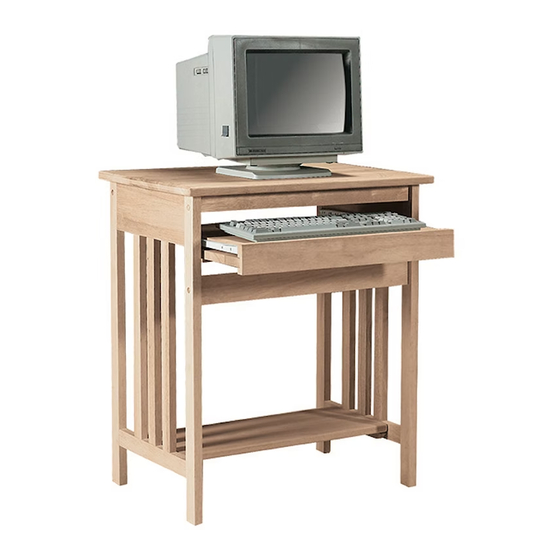

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION COMPUTER STAND Item No. : 273 ITEM NO : 273 Printed in Vietnam REVISED MAY 15, 2014 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
- Page 3 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Long bolt Flat washer (6x35mm) (6.5x19mm) Spring washer Wood screw (6.5x13mm) M4x35mm Allen key...
- Page 4 STEP 2 Attach the bottom shelf (C) with bolts (1), and washers (2) and (3) as shown below. Tighten with the Allen key (5) ITEM NO : 273 Printed in Vietnam REVISED MAY 15, 2014 - 4 -...
- Page 5 STEP 3 Insert the keyboard tray (D) into the unit as shown below. STEP 4 Slide panel (F) into the grooves underneath the keyboard tray (D) as shown below. ITEM NO : 273 Printed in Vietnam REVISED MAY 15, 2014 - 5 -...
