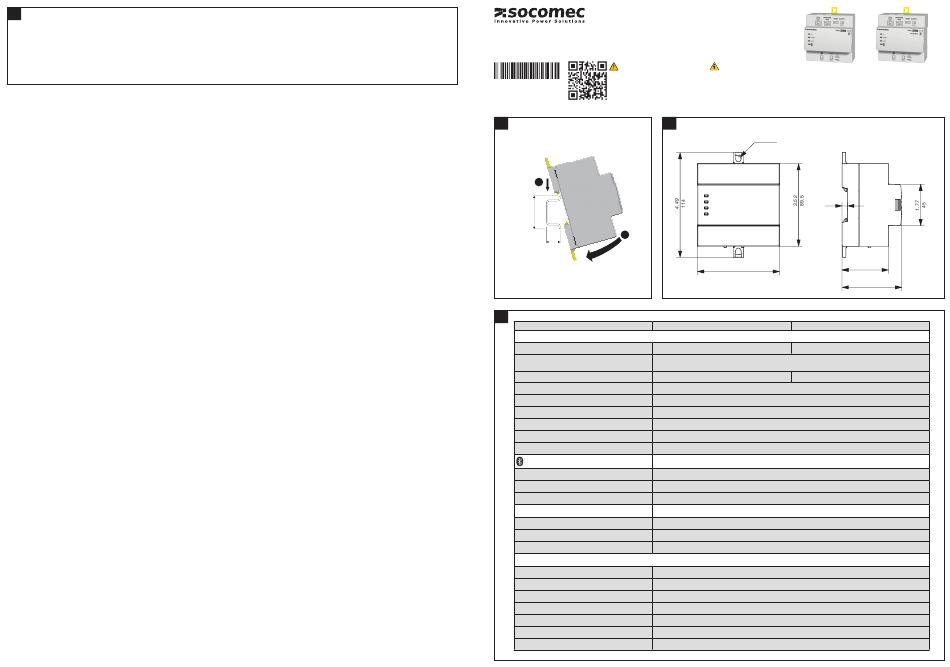

socomec DIRIS Digiware M-50 Quick Start Manual

7
SPECIAL WARNING FOR USA AND CANADA
This device complies with part 15 of the FCC Rules. Canada, Industry Canada (IC) Notices
Operation is subject to the following two conditions: This device complies with Industry Canada license-
(1) This device may not cause harmful interference, exempt RSS standard(s). Operation is subject to the
(2) this device must accept any interference received, following two conditions: (1) this device may not cause
including interference that may cause undesired opera- interference, and (2) this device must accept any interfe-
tion. (§15.19 (3)). rence, including interference that may cause undesired
operation of the device.
FCC ID: 2AT66-DIRISDGWM IC ID: 25318-DIRISDGWM
CORPORATE HQ CONTACT: SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE. Non contractual document
Le présent appareil est conforme aux CNR d' ISED appli-
cables aux appareils radio exempts de licence. L'exploi-
tation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris
un brouillage susceptible de provoquer un fonctionnement
indésirable.

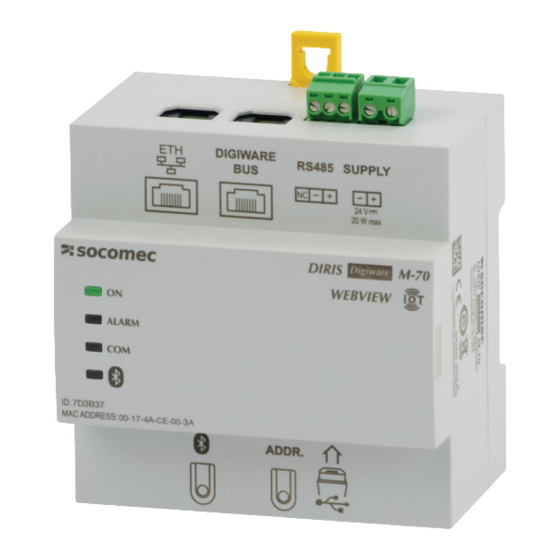

DIRIS Digiware M-50 &
Multi-protocol communication gateways
This symbol indicates that the full instruction
manual, declaration of conformity EU-type
548749B
examination certificate are available on the
Socomec website:
www.socomec.com/operating-instructions
www.socomec.com
1 1
a Mounting
L
1
1.38
35
2
0.29 or 0.59
7,5 or 15
DIN rail mounting with access to front face only
2
Technical characteristics
Communication characteristics
Default IP address
Ethernet RJ45 10/100 Mbs
Embedded software
Max connected devices
RJ45 Digiware bus
RS485 2-3 wires
Speed
RJ9 port
Micro USB
Bluetooth Low Energy
Use
Operating frequency
EIRP Power
Electrical characteristics
Power supply
Supply protection
Consumption
Environmental characteristics
Use
Storage temperature
Operating temperature
Humidity
Maximum operating altitude
Pollution degree
Protection class
M-70
DIRIS Digiware M-50
Please consult safety
Ref. 4829 0221
warning (ref. 546660)
before installing the
devices.
b Dimensions (in/mm)
Ø 0.24 Ø 0.24
Ø 6 Ø 6
0.24 0.24
6 6
3.5 3.5
89 89
DIRIS Digiware M-50 DIRIS Digiware M-70
192.168.0.4 192.168.0.4
Gateway: MODBUS TCP / RTU
BACnet IP / SNMP v1 v2 v3
- WEBVIEW-M
32
Input
Input (Master) / Output (Slave)
9600 bds (10 devices max) / 38400 bds - 115200 bds (32 devices max)
Not used yet
For configuration
No feature implemented yet
2402 to 2480 MHz
6.23 dBm (measured max. average)
24 VDC +/- 10%, 20 W max
Integrated into SOCOMEC supply (ref. 4829 0120) or use 24 VDC 1 A gG/Am fuse
2.5 VA
Indoor
-25 ... +70 °C
-10 ... +55 °C
95 % at +40 °C without condensation
2000 m
2
IP 40 (front face)
DIRIS Digiware M-70
Ref. 4829 0222
1.97 1.97
50 50
2.56 2.56
65 65
