Mounting the Camera and Telescopic Rods
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally (tilt axis).
A pair of telescopic rods* must be used to mount the prompter system.
A camera mounting plate may also be required between the head
support and the camera body to allow installation of the prompter
system. Different sizes of mounting plates are available, depending on
the type of camera being used.
*The MT-RED mounting plate does not require the telescopic rods.
For more information on the camera mounting plate options available,
see the section Camera Mounting Components on page 5.

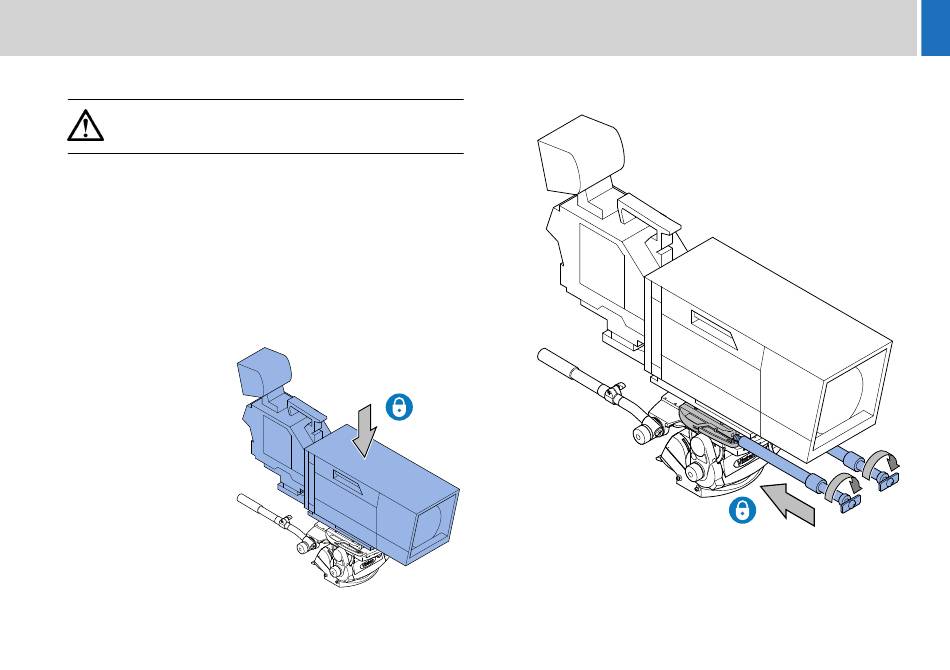

Direct Mounting to the Camera Head Support
1.
Fit the camera and any
fixing plate being used
to the top of the camera
head support.
2.
Screw the telescopic rods (TR-5, TR-7 or TR-12) into the mounting
holes on the front of the camera head support.
