Configuration

Control Panel Buttons

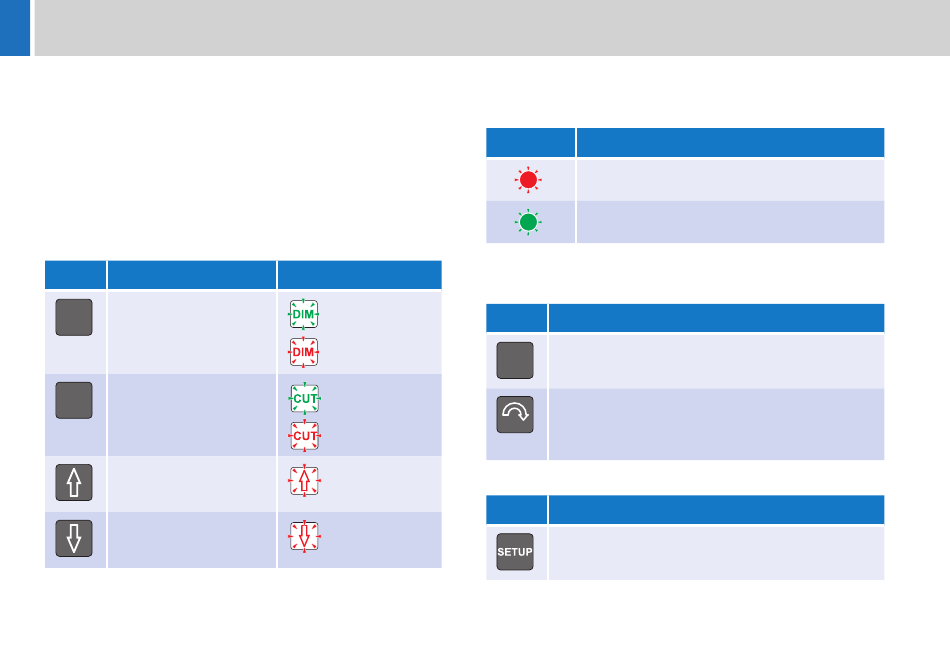

The buttons on the control panel are used to configure the setup of the
prompter monitor screen. The buttons have legends to indicate their
function, and are back-illuminated.
The control panel buttons are clustered in four distinct groups.
Backlight Control Buttons
This is a group of four buttons and an indicator LED to control the
function of the monitor's backlight. The button legends change colour
depending on their current status.
Button Button Function
Activates a mode to dim
the backlight after a
DIM
predetermined period of
prompter inactivity*.
Activates a mode to turn
the backlight off after a
CUT
predetermined period of
prompter inactivity*.
Increases the normal
backlight operating
brightness.
Decreases the normal
backlight operating
brightness.
*To exit either mode, press the DIM or CUT button again.
30
Eco +Plus+ LED
The Eco +plus+ LED provides an indication of the current status of the
monitor backlight.
LED Colour
Direct Access Buttons
Colour Status
These two buttons provide quick access to common functions.
When DIM mode
selected. Button
When CUT or no
mode selected.
When CUT
mode selected.
When DIM or no
mode selected.
Setup Button
Button
Backlight Status
Backlight operating at the selected full brightness.
DIM or CUT mode is in operation due to prompter
inactivity.
Button Function
INPUT SELECTION button steps to the next available
video input.
I/P
PICTURE ROTATION button steps through all four
combinations of horizontal and vertical scanning
directions, allowing the appropriate picture orientation
for direct or mirror viewing to be set.
.
Button Function
SETUP button to activate the on-screen engineering
setup menu.
