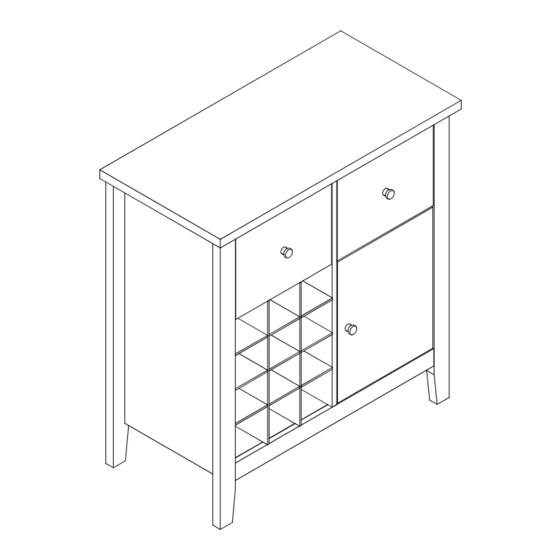

Luna Sideboard With Wine Rack
Assembly lnstructions - Please keep for future reference
459/6077
hygena
Dimensions
Width - 80cm
Depth - 40cm
Height -85cm
Important - Please read these instructions fully before starting assembly
Customer Helpline: 0345 6400 800
If you need help or have damaged or missing parts, call the
Issue 1-28-10-15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hygena Luna 459/6077
Summary of Contents for hygena Luna 459/6077
- Page 1 Luna Sideboard With Wine Rack Assembly lnstructions - Please keep for future reference 459/6077 hygena Dimensions Width - 80cm Depth - 40cm Height -85cm Important - Please read these instructions fully before starting assembly Customer Helpline: 0345 6400 800 If you need help or have damaged or missing parts, call the...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not recommend the components and tools listed on to its nal position (in the same pages 2 and 3. use of power room) as possible. Remove all ttings from the drill/drivers Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Inside Underside Side panel (left) Top panel (83x38x5cm) (80x40x2.5cm) Inside Side panel (right) Divider (83x38x5cm) (68x37.5x1.5cm) Lower apron (66x5x1.5cm) Base panel (66x36x1.5cm) Drawer back X 2 (29x20x1.2cm) Back panel X 2 (70x34x0.3cm) - Page 4 Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Drawer Side Panel (left) X 2 Drawer Base X 2 (35x20x1.2cm) (34.4x29.4x0.3cm) Drawer Front X 2 Wine Rack panel (Horizontal) X 3 (31.8x25x1.5cm) (32.8x37x0.5cm) Upper Apron (66x2x1.5cm)
-
Page 5: Tools Required
Components - Fittings 0345 6400 800 Large locking nut x 8 Wooden dowel x 20 (6X30mm) Metal dowel x 20 Drawer runner x 4 (L342mm) Small locking nut x 12 Screw x 8 (3x12mm) Wood screw x 11 (4x30mm) Screw x 3 (4x18mm) Handle x 3 Screw x2 (3x10mm) Screw x 2 (5x40mm) - Page 6 Preparing panels Place top , lower apron , drawer front drawer side panels at onto the oor with the xing holes facing up. Screw metal dowels into all panels as shown. Insert wood dowels into , side frames and lower apron as shown.
- Page 7 Preparing side panels Place left and right side frames at on the oor with the xing holes facing up. Fit drawer runners to side frames and both sides of divider using screws Assemble plastic door catch to divider using screws...
- Page 8 Step 3 Assembling panels : Locate apron onto base panel Insert large locking nuts into the underside of base panel as shown. Turn locking nuts clockwise to secure. b: Insert wood dowels into the bottom edge of divider Front Cut out Assemble divider to base panel...
- Page 9 Step 5 Assembling top With help stand the unit upright. Insert wood dowels into the top of side frames and divider Locate top into position. Insert small locking nuts into side panels Insert large locking nuts into divider Turn locking nuts clockwise to secure.
- Page 10 Step 7 Assembling back panel With help, carefully lay the unit face down onto the oor. a: Locate back panels into position. b: Secure back panels using screws...
- Page 11 Step 8 Assembling Drawer Locate drawer sides onto drawer front Insert small locking nuts into the drawer sides as shown. Turn locking nuts clockwise to secure. : Slide drawer base into the grooves. Locate drawer back between drawer side panels and secure using screws Fit handle...
- Page 12 Step 9 Locating drawers Extend the drawer runners fully out. Locate the drawers onto the runners and secure using screws as shown.
- Page 13 Step 10 Assembling shelf and door a: Insert shelf support pins at the desired height. Carefully locate shelf onto the support pins. b: Assemble hinges to door using screws Fit handle to door using screw c: Assemble door to left side panel using screws...
- Page 14 Step 11 Hinge adjustment To move doors up or down, loosen screws as shown and move doors to suit. Once doors are aligned, insert 2 more screws into the hinge plates and fully tighten all screws. To move doors in or out, loosen screw shown and move doors to suit.
- Page 15 Step 12 Fixing to the wall It is recommended that the wall to ensure stability. Assemble wall straps to the back of the unit using screws and washer With help, move the unit to the desired location. locations on the wall and remove the unit.
