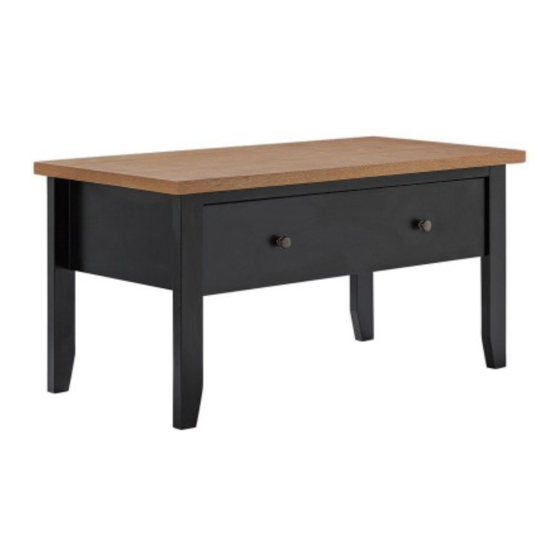

Luna Coffee Table
Assembly lnstructions - Please keep for future reference
460/5339
hygena
Dimensions
Width - 90cm
Depth - 45cm
Height -45cm
Important - Please read these instructions fully before starting assembly
Customer Helpline: 0345 6400 800
If you need help or have damaged or missing parts, call the
Issue 1-23-10-15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hygena Luna 460/5339
Summary of Contents for hygena Luna 460/5339
- Page 1 Luna Coffee Table Assembly lnstructions - Please keep for future reference 460/5339 hygena Dimensions Width - 90cm Depth - 45cm Height -45cm Important - Please read these instructions fully before starting assembly Customer Helpline: 0345 6400 800 If you need help or have damaged or missing parts, call the...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not components and tools listed on to its final position (in the same recommend the pages 2 and 3. use of power room) as possible. Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 inside underside Side frame (left) (42.5x42x5cm) (90x45x2.5cm) inside groove Front stretcher Rear stretcher (with groove) Side frame (right) (74x50x1.5cm) (74x50x1.5cm) (42.5x42x5cm) Drawer side panel (right) Drawer back Back panel (31x11.9x1.2cm) - Page 4 Components - Fittings 0345 6400 800 Wooden dowel x 10 (6X30mm) Metal dowel x 13 Small locking nut x 9 Wood screw x 8 (4x30mm) Drawer runner x 2 (L342mm) Screw x 4 (3x12mm) Screw x 2 (4x10mm) Wood screw x 2 (4x25mm) Handle x 2 Large locking nut x 4 Tools required...
- Page 5 Preparing panels Place top , side frames , and drawer front flat onto the floor with the fixing holes facing up . Screw metal dowels into all panels as shown. Note: Screw metal dowels as far as shown. Do not overtighten.
- Page 6 Assembling stretchers Locate front and rear stretchers between side frames Note: Ensure the groove in the top surface of rear stretcher is correctly aligned with the grooves in the side the frames. Rear Front Insert large locking nuts into the holes in the underside Align of stretchers Grooves...
- Page 7 Step 5 Assembling Drawer Align grooves : Locate drawer sides and support onto drawer front Note: Ensure the grooves on all panels align at the bottom. Insert small locking nuts into the drawer sides and support as shown. Turn locking nuts clockwise to secure.
- Page 8 Step 6 Locating drawer With help, turn the whole unit upright. Extend the drawer runners fully out. Locate the drawer onto the runners and secure using screws as shown. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group.
