SnapServer XSR40 Add-on/Spare PCIe Card

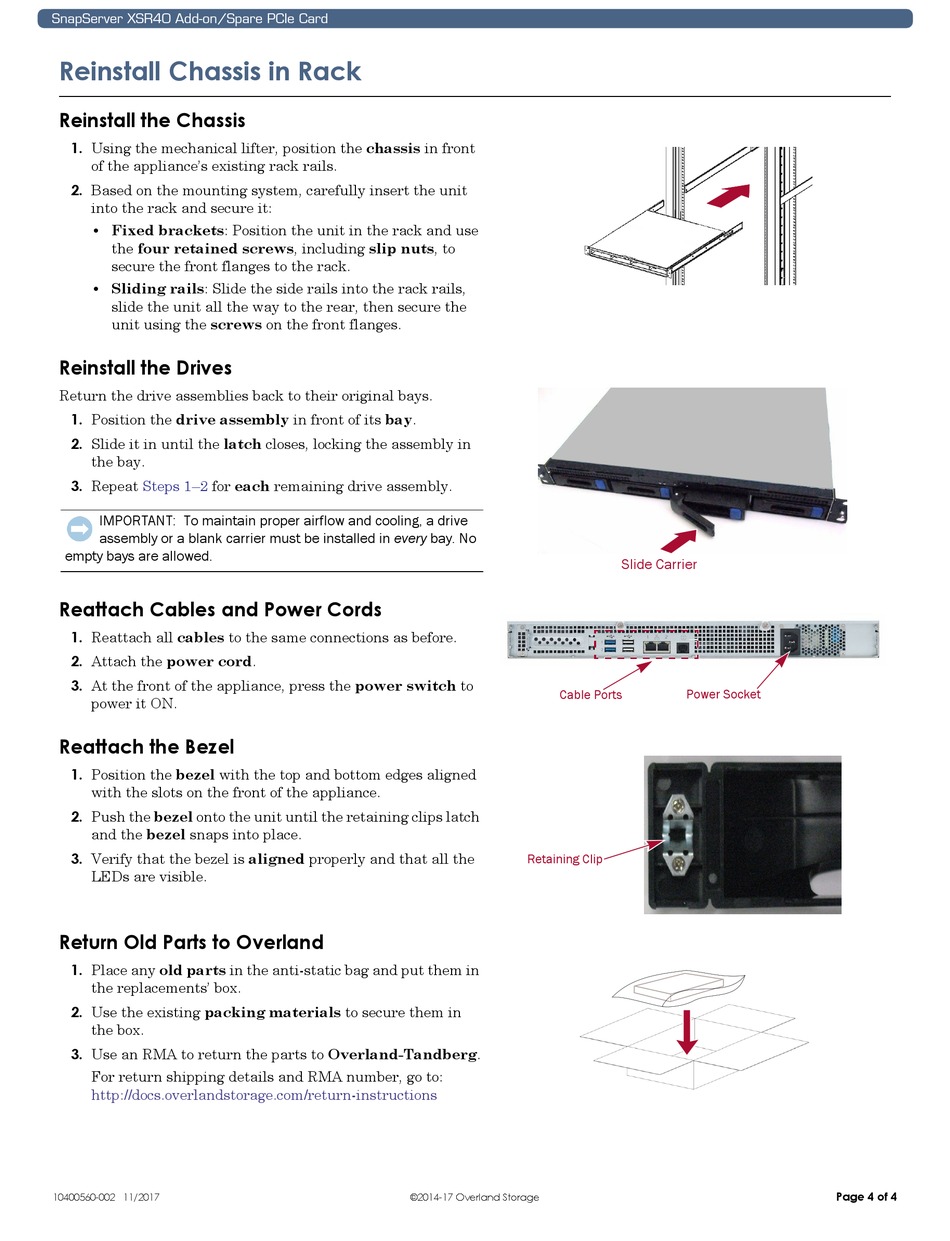

Reinstall Chassis in Rack

Reinstall the Chassis

1. Using the mechanical lifter, position the chassis in front
of the appliance's existing rack rails.
2. Based on the mounting system, carefully insert the unit
into the rack and secure it:
• Fixed brackets: Position the unit in the rack and use
the four retained screws, including slip nuts, to
secure the front flanges to the rack.
• Sliding rails: Slide the side rails into the rack rails,
slide the unit all the way to the rear, then secure the
unit using the screws on the front flanges.

Reinstall the Drives

Return the drive assemblies back to their original bays.
1. Position the drive assembly in front of its bay.
2. Slide it in until the latch closes, locking the assembly in
the bay.
3. Repeat Steps 1–2 for each remaining drive assembly.
IMPORTANT: To maintain proper airflow and cooling, a drive
assembly or a blank carrier must be installed in every bay. No
empty bays are allowed.

Reattach Cables and Power Cords

1. Reattach all cables to the same connections as before.
2. Attach the power cord.
3. At the front of the appliance, press the power switch to
power it ON.

Reattach the Bezel

1. Position the bezel with the top and bottom edges aligned
with the slots on the front of the appliance.
2. Push the bezel onto the unit until the retaining clips latch
and the bezel snaps into place.
3. Verify that the bezel is aligned properly and that all the
LEDs are visible.

Return Old Parts to Overland

1. Place any old parts in the anti-static bag and put them in
the replacements' box.
2. Use the existing packing materials to secure them in
the box.
3. Use an RMA to return the parts to Overland-Tandberg.
For return shipping details and RMA number, go to:
http://docs.overlandstorage.com/return-instructions
10400560-002 11/2017
Cable Ports
Retaining Clip
©2014-17 Overland Storage
Slide Carrier
Power Socket
Page 4 of 4

