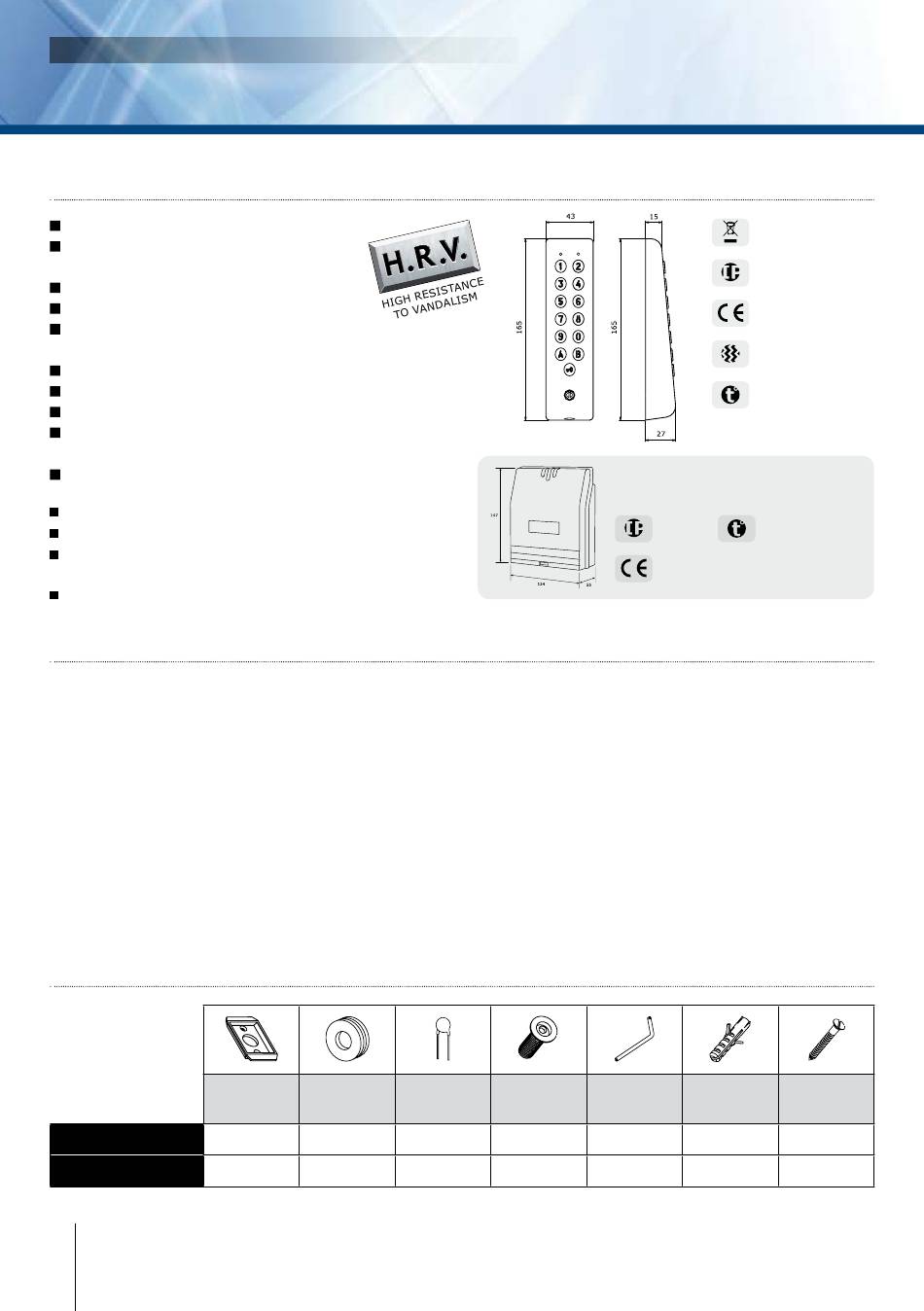

INSTALLATION MANUAL
PROFIL100EC
Illuminated Mullion Weatherproof Keypad with remote Electronics

1] PRODUCT PRESENTATION

Stainless steel.
Narrow: Ideal for installation
on an aluminium section.
Backlit.
2 relays.
Recommended for activating
and deactivating your alarm system.
Surface-mount.
Free voltage.
Installation with Diax
PCB of remote electronics
protected with a varnish coating.
100 user codes.
Audible and visual feedback.
Dimensions (L x W x D): 165 x 43 x 27mm.
Power supplies:
12v to 24v ac or 12v to 48v dc.
consumptions: 30 to 100mA.
2] NOTES & RECOMMENDATIONS
Cable
- The distance between the PrOFIL100Ec
and the remote electronic can not exceed
more than 10 meters.
- Make sure that the cable is not near by a high
voltage cables (ex: 230v ac).
- recommended cable between the PrOFIL100Ec
and the remote electronics: 2 twisted pairs
(4 wires) SYT1 0.8MM.
Mounting recommendations
Mount the keypad on a flat surface to avoid
any vandalism and to insure the best mounting.

3] MOUNTING KIT

Mounting plate
electronics box
Remote electronics
PROFIL100EC
cdvi.com
2 2
cdvigroup.com
screws.
®
Wiring
for remote
sealed cap
1 2
- -
Security advice
- For security advice reasons, change
the factory default master code.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).
Installation recommendations
To secure the system from back electromagnetic
fields do not forget to mount the varistor
in parallel on the lock.
Recommended power supplies
suitable for the PROFIL100EC
ArD12 (230v input) or BS60 (230v input).
(M5x8 Diax
®
Varistor
screw)
- -
1 1
WEEE & RoHS
IP64
CE certification
Environmental tests:
vibrations
-25°C to +70°C
remote electronics, supplied
with the PrOFIL100Ec keypad
IP52 -25°C to +70°C
CE certification
T20 Diax Plastic
®
Spanner anchors
- 2
1 2
(M4x30)
mounting
screws
2
2
