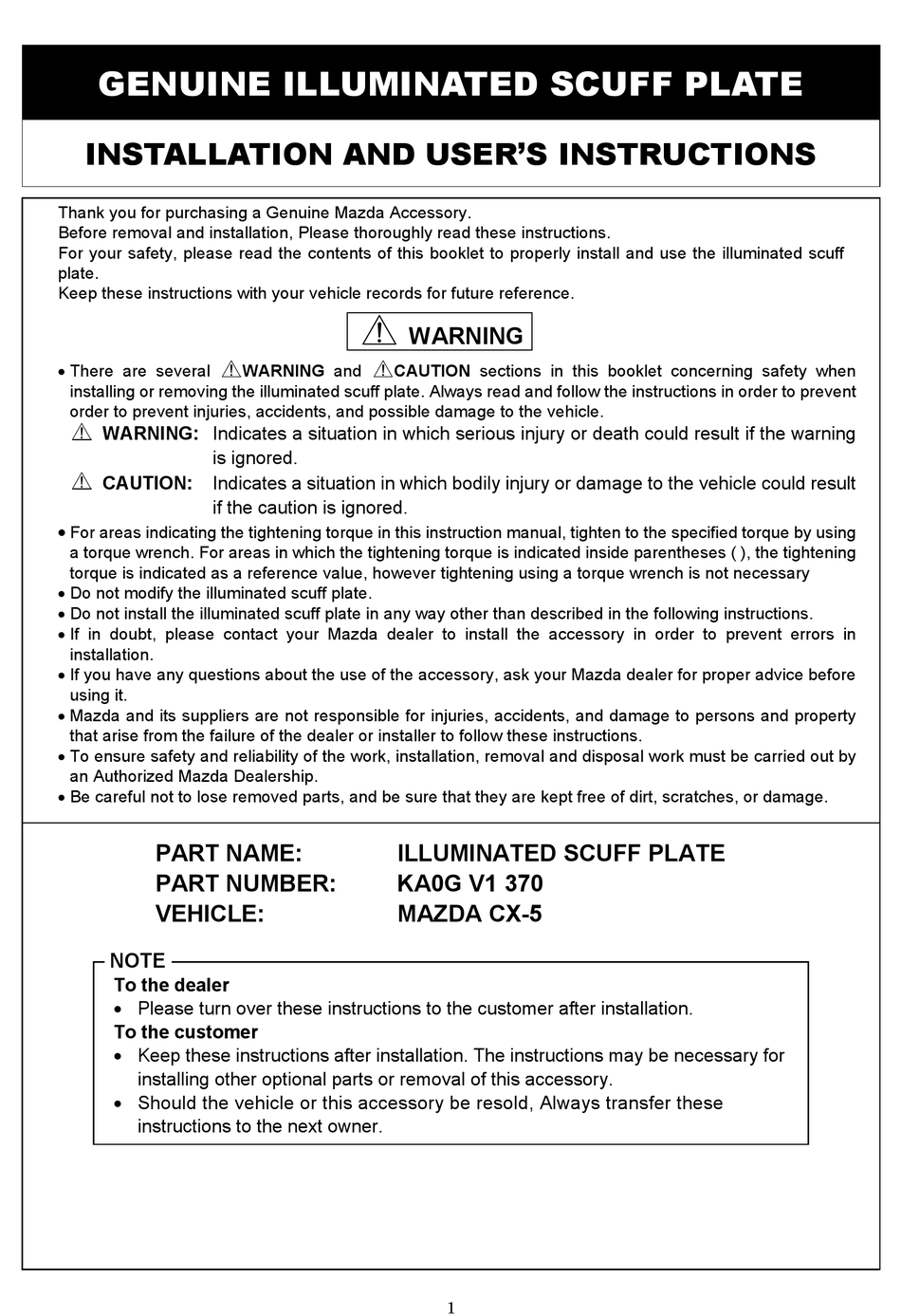

Mazda KA0G V1 370 Installation And User Instruction Manual

GENUINE ILLUMINATED SCUFF PLATE
INSTALLATION AND USER'S INSTRUCTIONS
Thank you for purchasing a Genuine Mazda Accessory.
Before removal and installation, Please thoroughly read these instructions.
For your safety, please read the contents of this booklet to properly install and use the illuminated scuff
plate.
Keep these instructions with your vehicle records for future reference.
 There are several
installing or removing the illuminated scuff plate. Always read and follow the instructions in order to prevent
order to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the warning
is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle could result
if the caution is ignored.

For areas indicating the tightening torque in this instruction manual, tighten to the specified torque by using
a torque wrench. For areas in which the tightening torque is indicated inside parentheses ( ), the tightening
torque is indicated as a reference value, however tightening using a torque wrench is not necessary
 Do not modify the illuminated scuff plate.
 Do not install the illuminated scuff plate in any way other than described in the following instructions.
 If in doubt, please contact your Mazda dealer to install the accessory in order to prevent errors in
installation.
 If you have any questions about the use of the accessory, ask your Mazda dealer for proper advice before
using it.
 Mazda and its suppliers are not responsible for injuries, accidents, and damage to persons and property
that arise from the failure of the dealer or installer to follow these instructions.
 To ensure safety and reliability of the work, installation, removal and disposal work must be carried out by
an Authorized Mazda Dealership.
 Be careful not to lose removed parts, and be sure that they are kept free of dirt, scratches, or damage.
PART NAME:
PART NUMBER:
VEHICLE:
NOTE
To the dealer
 Please turn over these instructions to the customer after installation.
To the customer
 Keep these instructions after installation. The instructions may be necessary for
installing other optional parts or removal of this accessory.
 Should the vehicle or this accessory be resold, Always transfer these
instructions to the next owner.
WARNING
WARNING and CAUTION sections in this booklet concerning safety when
ILLUMINATED SCUFF PLATE
KA0G V1 370
MAZDA CX-5
1
