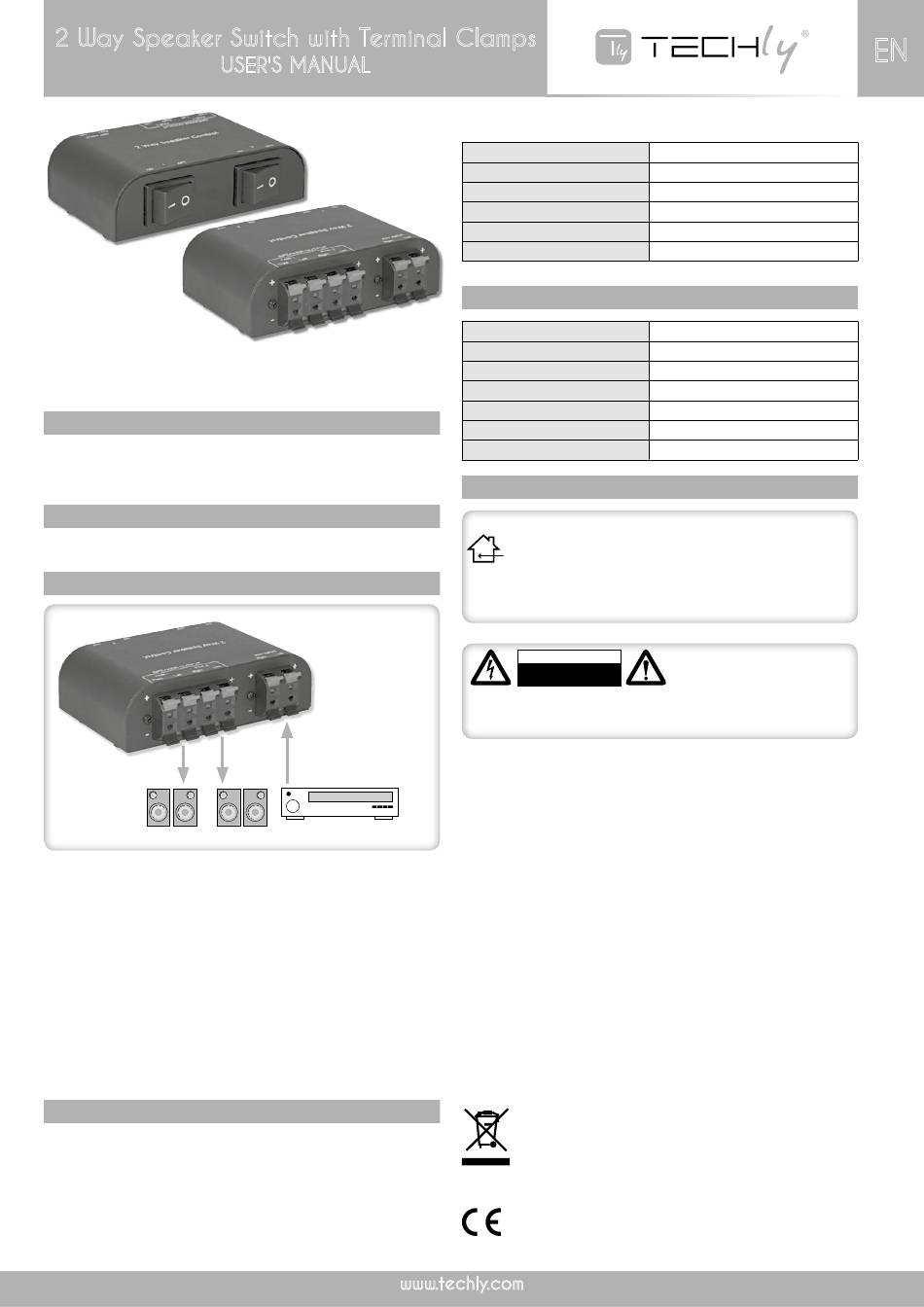

Techly IDATA AU-266 User Manual page 2

2 Way Speaker Switch with Terminal Clamps
Dear customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
IntroduCtIon
The product is designed to use two pairs of loudspeakers connected to
one amplifier. The pairs of loudspeakers can be used simultaneously or
separately. The product features a metal housing and two separate rocker
switches. This design eliminates interference and volume reduction.
PACKAGe ContentS
• Main unit x1
• User Manual x1
ConneCtIon
Speaker
1) Failure to observe the following instructions can lead to damage to the
product, the loudspeakers and the amplifier.
2) Turn off the amplifier before connecting the cables. Check all cable
connections before turning on the amplifier.
3) Insert the strands correctly into the connections. Failure to do so
poses a risk of short-circuiting.
4) Use suitable loudspeaker cables only. Contact a professional in case
of doubt.
5) Connect passive loudspeakers to the loudspeaker outputs only (no
active loudspeakers).
6) Connects the input source (e.g. DVD, PC, Mobile, TV) to the amplifier;
connects the amplifier to the AMP input terminals; connects the
loudspeakers with the SPEAKER OUTPUT terminals.
7) Refer to the user manual of the amplifier and the loudspeakers
concerning their respective technical data and any special information
concerning their connections.
oPerAtIon
• Turn on the amplifier and begin audio playback.
• Use the rocker switches to select one or both loudspeaker pairs (ON =
turn on / OFF = turn off).
If only one pair of loudspeakers is connected, the rocker switch
for the unused connection must be turned OFF. Otherwise correct
operation is not possible.
USER'S MANUAL
Audio Amplifier
Speaker
OBSERVE THE IMPRINTS OF THE CONNECTIONS
Load
Impedance
Cable length
Wire cross section
Operating conditions
Storage conditions
SPeCIFICAtIonS
Imprint
+
-
RIGHT
LEFT
SPEAKER OUTPUT
AMP INPUT
SAFetY PreCAutIon
INTENDED USE
We do not permit using the device in other ways like described
in this user's manual. Use the product only in dry interior rooms.
Not attending to these regulations and safety instruction
might cause fatal accidents, injuries, and damages to persons and
property. The manufacturer/supplier assumes no liability for damages
caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
technician when service is required. Disconnect the product from mains
and other equipment if a problem should occur. Do not expose the product
to water or moisture.
• Your product is not a toy and is not meant for children, because it
contains small parts which can be swallowed and can injure when
used inappropriately!
• Please install the system and devices attached to it in a way that
persons cannot be injured, or objects not be damaged for example by
dropping or stumbling.
• Please remove the packing materials, because children may cut
themselves on them while playing. Furthermore, there is a risk of
swallowing and inhalation of incidentals and insulating material.
• Avoid places with high temperatures, or humidity, or places which
might come into contact with water. Do not install the product close
to openings of air conditioners, or at places with an excessive amount
of dust or smoke.
• Do not install the product at places subject to vibration, or oscillation
• Do not modify and alter the product and any accessories! Do not use
any damaged parts.
• Keep enough space around all devices for a good ventilation and free
motion and to avoid damages.
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications
of the product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with
this symbol. It means that used electrical and electronic products
should not be mixed with general household waste. There is a
separate collections system for these products in compliance with
WEEE directive, otherwise contaminative and hazardous
substances can pollute the environment.
With the CE sign, Techly
the basic European standards and directives.
www.techly.com www.techly.com
150 W RMS per channel
4 - 16 Ω
max. 50 m
max. 2.5 mm²
-25 to +85 ºC, 20 – 75 % RH
-25 to +85 ºC, 20 – 75 % RH
Meaning
Positive connection
Negative connection
Right connection
Left connection
Loudspeaker output
Amplifier input
To reduce risk of electric shock,
this product should ONLY
be opened by an authorized
ensures that the product is conformed to
®
EN
