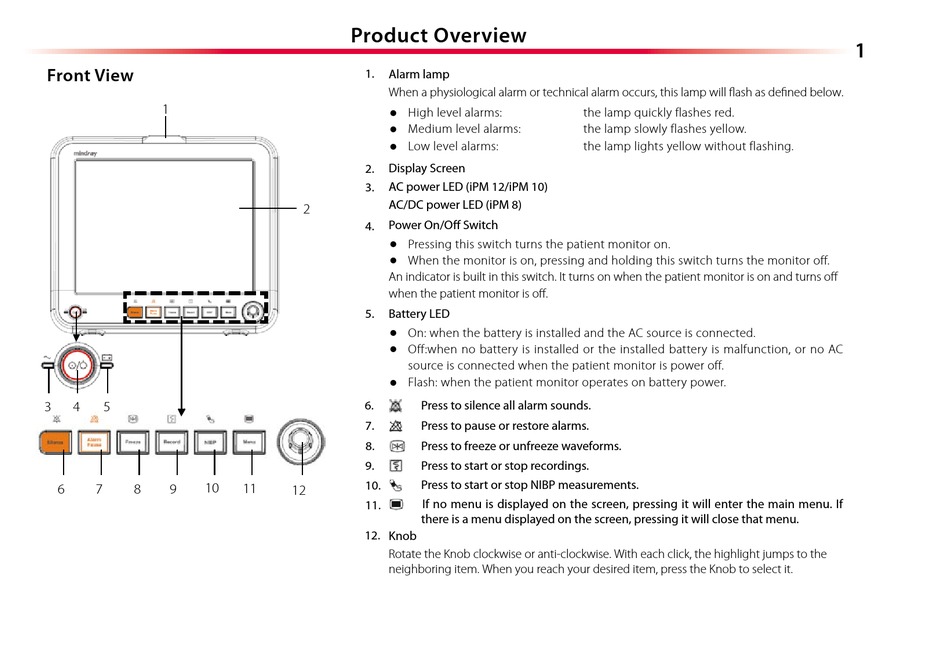

Front View; Product Overview - Mindray iPM Series Quick Manual

Front View

1
3 4 5
10
6 7 8 9

Product Overview

1.
Alarm lamp
When a physiological alarm or technical alarm occurs, this lamp will flash as defined below.



2. Display Screen
3. AC power LED (iPM 12/iPM 10)
AC/DC power LED (iPM 8)
2
Power On/Off Switch
4.


An indicator is built in this switch. It turns on when the patient monitor is on and turns off
when the patient monitor is off.
Battery LED
5.



6.
7.
8.
9.
10.
11
12
11.
12.
Knob
Rotate the Knob clockwise or anti-clockwise. With each click, the highlight jumps to the
neighboring item. When you reach your desired item, press the Knob to select it.
High level alarms:
Medium level alarms:
Low level alarms:
Pressing this switch turns the patient monitor on.
When the monitor is on, pressing and holding this switch turns the monitor off.
On: when the battery is installed and the AC source is connected.
Off:when no battery is installed or the installed battery is malfunction, or no AC
source is connected when the patient monitor is power off.
Flash: when the patient monitor operates on battery power.
Press to silence all alarm sounds.
Press to pause or restore alarms.
Press to freeze or unfreeze waveforms.
Press to start or stop recordings.
Press to start or stop NIBP measurements.
If no menu is displayed on the screen, pressing it will enter the main menu. If
there is a menu displayed on the screen, pressing it will close that menu.
the lamp quickly flashes red.
the lamp slowly flashes yellow.
the lamp lights yellow without flashing.
