- Page 1 Series Patient Monitor Quick Guide...
- Page 2 This Quick Guide is based on the maximum configuration and therefore some contents may not apply to your monitor. If you have any question, please contact us. © 2011 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved. Content in this guide is subject to change without prior notice.
-
Page 3: Front View

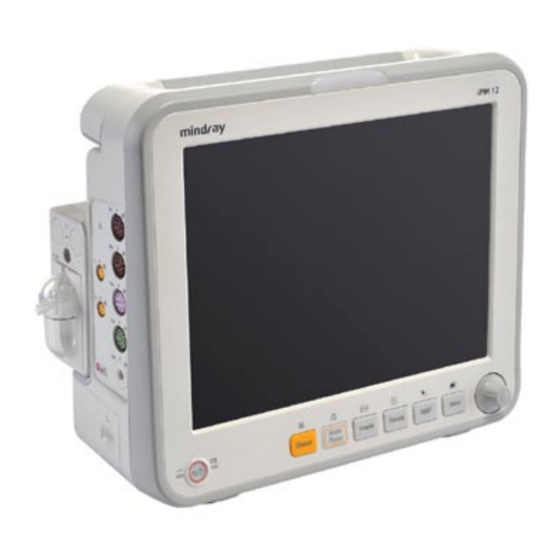

Product Overview Front View Alarm lamp When a physiological alarm or technical alarm occurs, this lamp will flash as defined below. High level alarms: the lamp quickly flashes red. Medium level alarms: the lamp slowly flashes yellow. Low level alarms: the lamp lights yellow without flashing. - Page 4 Product Overview Side View (iPM 0/iPM 8) Side View (iPM ) Handle Recorder Battery compartment Parameter module...
- Page 5 Product Overview Rear View (iPM /iPM 0) Rear View (iPM 8) AC Power Input Equipotential Grounding Terminal Parameter Module Slot USB Connectors Multifunctional Con- nector Network Connector VGA Connector DC Power Input...
-
Page 6: Screen Display
Basic Operations Screen Display Patient Information Area Physiological Alarm Area Parameter Area B Alarm Symbols Waveform Area Prompt Message Area Technical Alarm Area Parameter Area A QuickKeys Area... -
Page 7: Starting Monitoring
Basic Operations Getting Started Disconnecting from Power Turning Power on To disconnect the patient monitor from the AC power source, Before you start to make measurements, check the patient follow this procedure: monitor and plug-in modules for any mechanical damage and make sure that all external cables, plug-ins and accesso- Confirm that the patient monitoring is finished. -
Page 8: Using The Touch Screen
Basic Operations Using the Touchscreen Changing General Settings Setting up a Monitor Select screen items by pressing them directly on the patient mon- itor’s screen. You can enable or disable touchscreen operation by In situations where you install a patient monitor or change the pressing and holding the [Main Menu] QuickKey for 3 seconds. -
Page 9: Adjusting Alarm Volume
Basic Operations Setting the Date and Time Adjusting Alarm Volume Select [Main Menu] →[Maintenance >>]→[System Time Select the [Volume Setup] QuickKey, or [Main Menu]→ >>]. [Alarm Setup >>]→[Others]. Select [Alm Volume] and then select the appropriate vol- Set the date and time. ume: X-10, in which X is the minimum volume, depending on Select [Date Format] and toggle between [yyyy-mm-dd], the set minimum alarm volume (refer to the chapter Alarm),... - Page 10 Basic Operations Changing the Screen Layout You can enter the [Screen Setup] window as shown below by selecting [Main Menu] →[Screen Setup] →[Screen Layout >>]. In this window, you can allocate the positions of the parameters and Area A waveforms. The parameters or waveforms whose positions are not allocated will not be displayed.
-
Page 11: Care And Cleaning
Care and Cleaning Use only the substances approved by us and methods listed in this chapter to clean or disinfect your equipment. Warranty does not cover damage caused by unapproved substances or methods. Recommended cleaning agents are: Sodium hypochlorite bleach (diluted) ... - Page 12 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Mindray Building, Keji 12th Road South, Hi-tech Industrial Park, Nanshan, Shenzhen 518057 P.R. China Tel: +86 755 26582888 Fax: +86 755 26582680 www.mindray.com Comply with the requirements of the Council Direc- tive 93/42/EEC. Shanghai International Holding Corp.
