8
Area C
The monitor provides the following screens:

Normal Screen, or

Minitrends Screen, or

PAWP Screen, or

View Others Screen, or

ECG 7-Lead Full-Screen,or
You can select [Main Menu]→[Screen Layout>>]→[Choose
Screen] to choose a desired screen.
Basic Operations
Area A
Area B

Big Numerics Screen, or

OxyCRG Screen, or

C.O. Screen, or

ECG 7-Lead Half-Screen, or

ECG 12-Lead Full-Screen

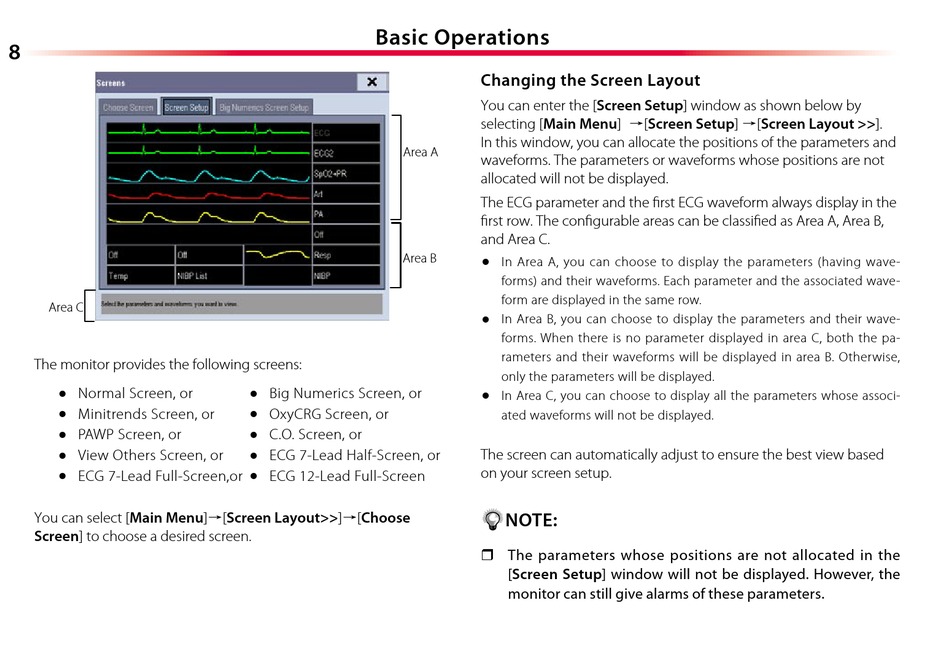

Changing the Screen Layout
You can enter the [Screen Setup] window as shown below by
selecting [Main Menu] →[Screen Setup] →[Screen Layout >>].
In this window, you can allocate the positions of the parameters and
waveforms. The parameters or waveforms whose positions are not
allocated will not be displayed.
The ECG parameter and the first ECG waveform always display in the
first row. The configurable areas can be classified as Area A, Area B,
and Area C.

In Area A, you can choose to display the parameters (having wave-
forms) and their waveforms. Each parameter and the associated wave-
form are displayed in the same row.

In Area B, you can choose to display the parameters and their wave-
forms. When there is no parameter displayed in area C, both the pa-
rameters and their waveforms will be displayed in area B. Otherwise,
only the parameters will be displayed.

In Area C, you can choose to display all the parameters whose associ-
ated waveforms will not be displayed.
The screen can automatically adjust to ensure the best view based
on your screen setup.
NOTE:
The parameters whose positions are not allocated in the

[Screen Setup] window will not be displayed. However, the
monitor can still give alarms of these parameters.
