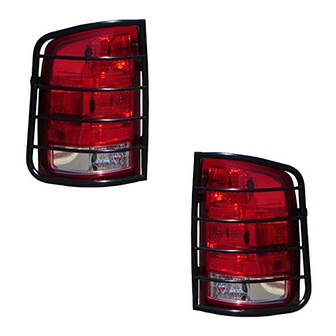

- Page 1 TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS TAIL LIGHT GUARD FOR FORD ESCAPE 08-11/MAZDA TRIBUTE 08-10 PART # 7G048806SS/7G048806A...
- Page 2 TAIL LIGHT GUARD 08-11 FORD ESCAPE & 08-10 TRIBUTE PARTS LIST: 1 Driver/Left Taillight Guard 2 4-.70mm x 15mm Phillips Screws 1 Passenger/Right Taillight Guard 2 4mm Lock Washers 2 Support Brackets 2 4mm x 8.65mm OD x .8mm Flat Washers 20mm x 33mm x 1.2mm Double Side Tape 4 ST5 x 30mm Phillips Self Tapping Screws Strips...
- Page 3 TAIL LIGHT GUARD 08-11 FORD ESCAPE & 08-10 TRIBUTE Double Sided Tape onto back of Support Bracket Fig 1 Fig 2 Support Bracket appx. 6" up from bottom (2) ST5 x 30mm Screws Fig 3 Fig 4 (Support Bracket) 4mm x 15mm Philips Screw 4mm Lock Washer 4mm Flat Washer...
