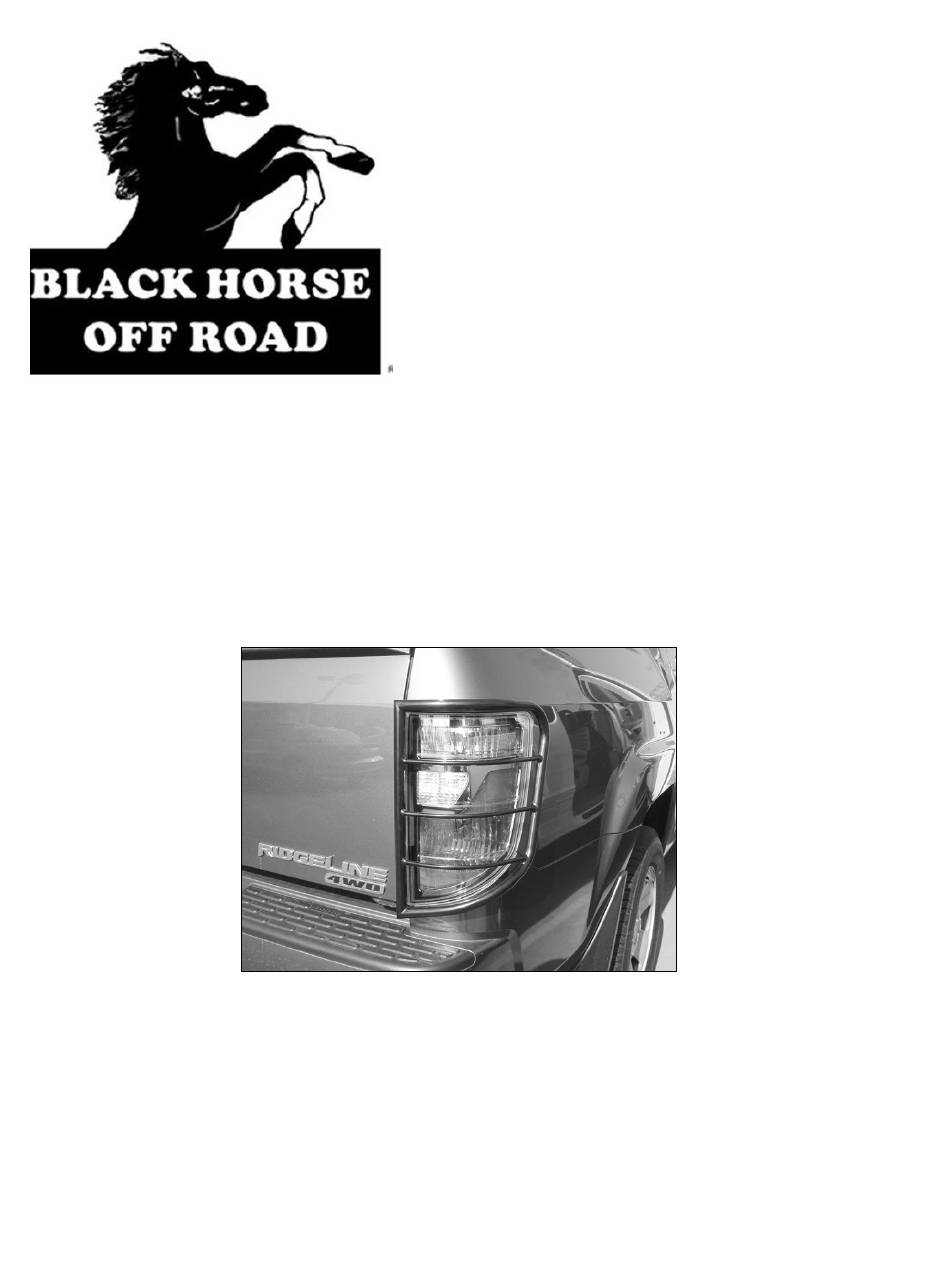

- Page 1 INSTA LLATION INSTRUCTIONS PART#: 7G152 506SS\7G152506A L LIGHT GUARD FOR 06-ON HONDA RIDGELINE...

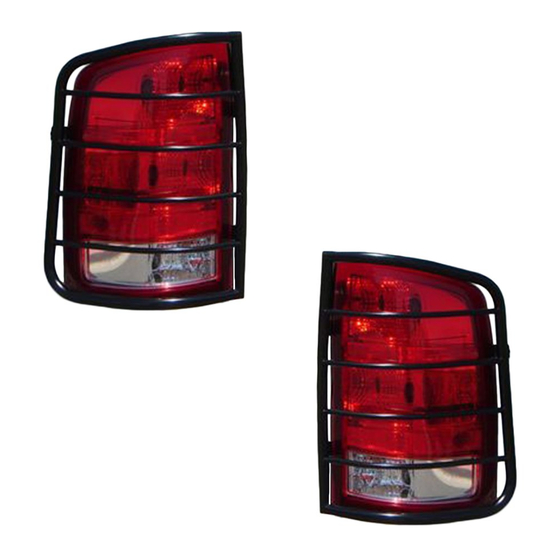

- Page 2 TAIL LIGHT GUARD FOR 06-ON HONDA RIDGELINE PARTS LIST: Driver/Left side Taillight Guard 4 SUS304 4.4mm ID x 8.65mm OD x .8mm Flat Washers 2 4mm Lock Washers Passenger/Right side Taillight Guard Support Brackets 2 ST4.2*19mm Self Tapping Screws 4-.70mm x 15mm Phillips Head Screws PROCEDURE: 1.
- Page 3 TAIL LIGHT GUARD FOR 06-ON HONDA RIDGELINE The alignment pins on the taillight To remove taillight assembly push into assembly, unscrew these two bushings. the two hex bolts, firmly grasp taillight assembly and pull evenly, straight back from vehicle. Do not pry assembly from vehicle or damage may result.
