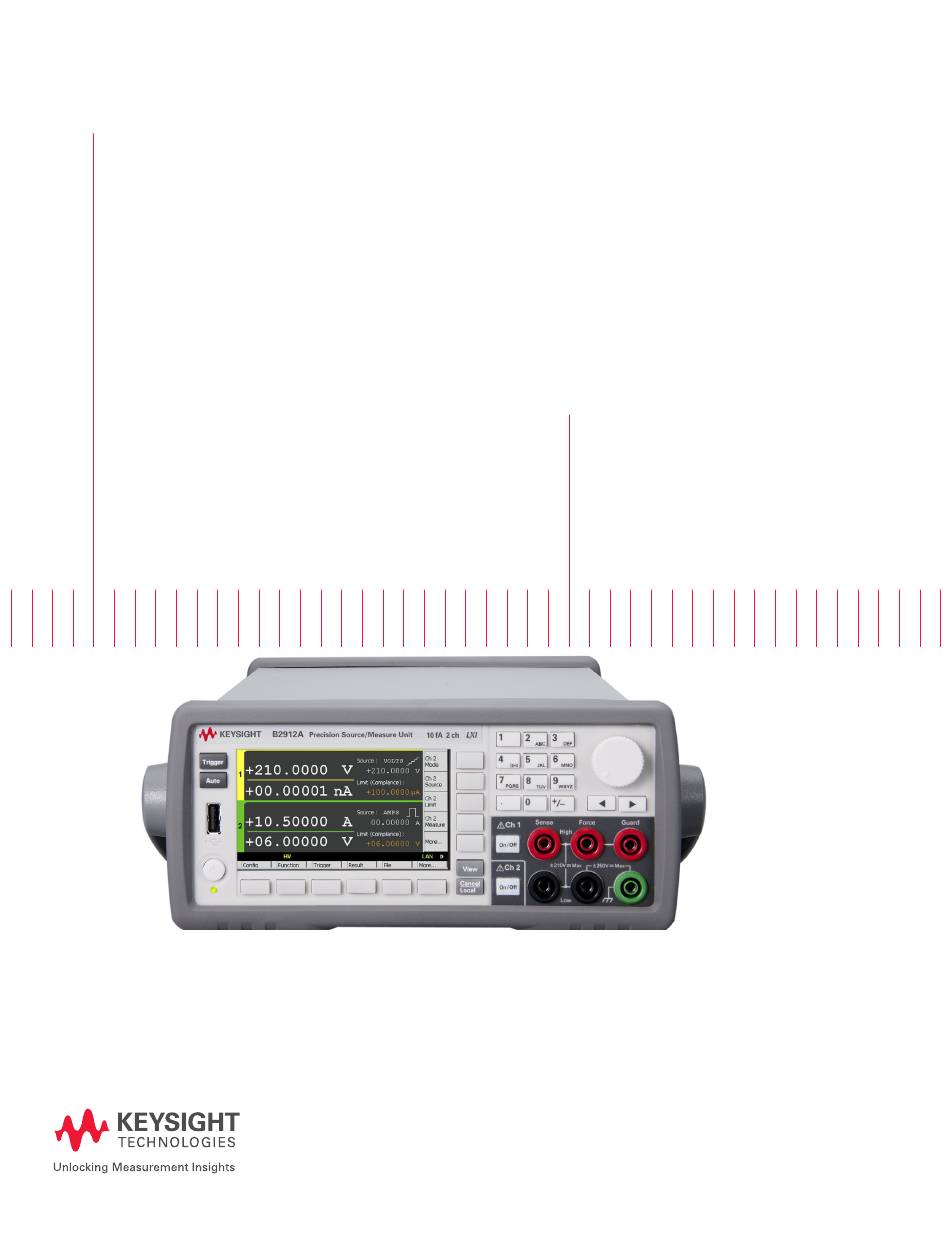

- Page 1 Keysight Technologies Using Source/Measure Unit as an Ammeter B2900A Precision Source/Measure Unit Demo Guide...
- Page 2 The Keysight B2900A Series Precision Source/Measure Unit (SMU) is a compact and cost-effective bench-top SMU with the capability to output and measure both voltage and current. The B2900A Series SMU enables you to make a wide range of current versus voltage (IV) measurements more accurately and quickly than ever before. In...
- Page 3 03 | Keysight | Using Source/Measure Unit as an Ammeter – Demo Guide Concept Figure 1 illustrates the connection diagram used in the demo to use the Keysight B2900A Series SMU as an ammeter. Since the current polarity of the SMU is opposite to an ammeter, the Low Force terminal of the channel has to be connected to the current output port of the device under test (DUT).
- Page 4 Demonstration Objective In the default setting, the low terminal of the channels in the Keysight B2900A Series SMU is grounded internally. However, the low terminal can be disconnected from the ground and kept floating. Configur- This demo illustrates the current mea-...
- Page 5 05 | Keysight | Using Source/Measure Unit as an Ammeter – Demo Guide to configure the Low terminal 4) Press and select , and then press state to FLOATING. If the low terminal state of the channel is set to FLOATING, you can see the status indicator on the GUI as below, although no indicator can be seen on being set to GROUNDED.
- Page 6 06 | Keysight | Using Source/Measure Unit as an Ammeter – Demo Guide to edit the Source value, and then enter 0 V to set the Source value to 0 V. 2) Press 3) Press to edit the Limit value, and then enter 100 mA to set the Limit value to 100 mA for example.
- Page 7 07 | Keysight | Using Source/Measure Unit as an Ammeter – Demo Guide 2-3. Perform the measurement 1) Press for the channel 1 to switch on its output terminal. 2) Press to perform a measurement repeatedly. Now you can see the measurement result on the GUI of the B2902/12A as below.
- Page 8 08 | Keysight | Using Source/Measure Unit as an Ammeter – Demo Guide 4) Press for the channel 2 to switch on its output terminal and enable the DUT. 4. Confirm measured current 4-1. Change View mode to Ch1 Single View. 1) Press repeatedly until Channel 1 Single View is displayed.
- Page 9 In the default setting, the instrument selects the appropriate measurement speed and range automatically to get the fine accuracy. However, you can also specify these parameters on the GUI of the B2900A Series SMU to meet a variety of the requirement to the measurement conditions.
- Page 10 SMU with the capability to output and measure both voltage and current. Although it has the capability to make a wide range of current versus voltage (IV) measurements as its intrinsic function, the B2900A Series SMU can be used as an ammeter easily.
- Page 11 (BP-9-7-17) www.keysight.com/find/b2900a DEKRA Certified ISO9001 Quality Management System www.keysight.com/go/quality Keysight Technologies, Inc. DEKRA Certified ISO 9001:2015 Quality Management System This information is subject to change without notice. © Keysight Technologies, 2017 Published in USA, December 1, 2017 5992-1710EN www.keysight.com...
