Speakman CPT-1000-TP Instructions

INSTRUCTIONS FOR MODELS
CPT-1000-TP
CPT-1300-TP
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPT-1000-TP-02
1

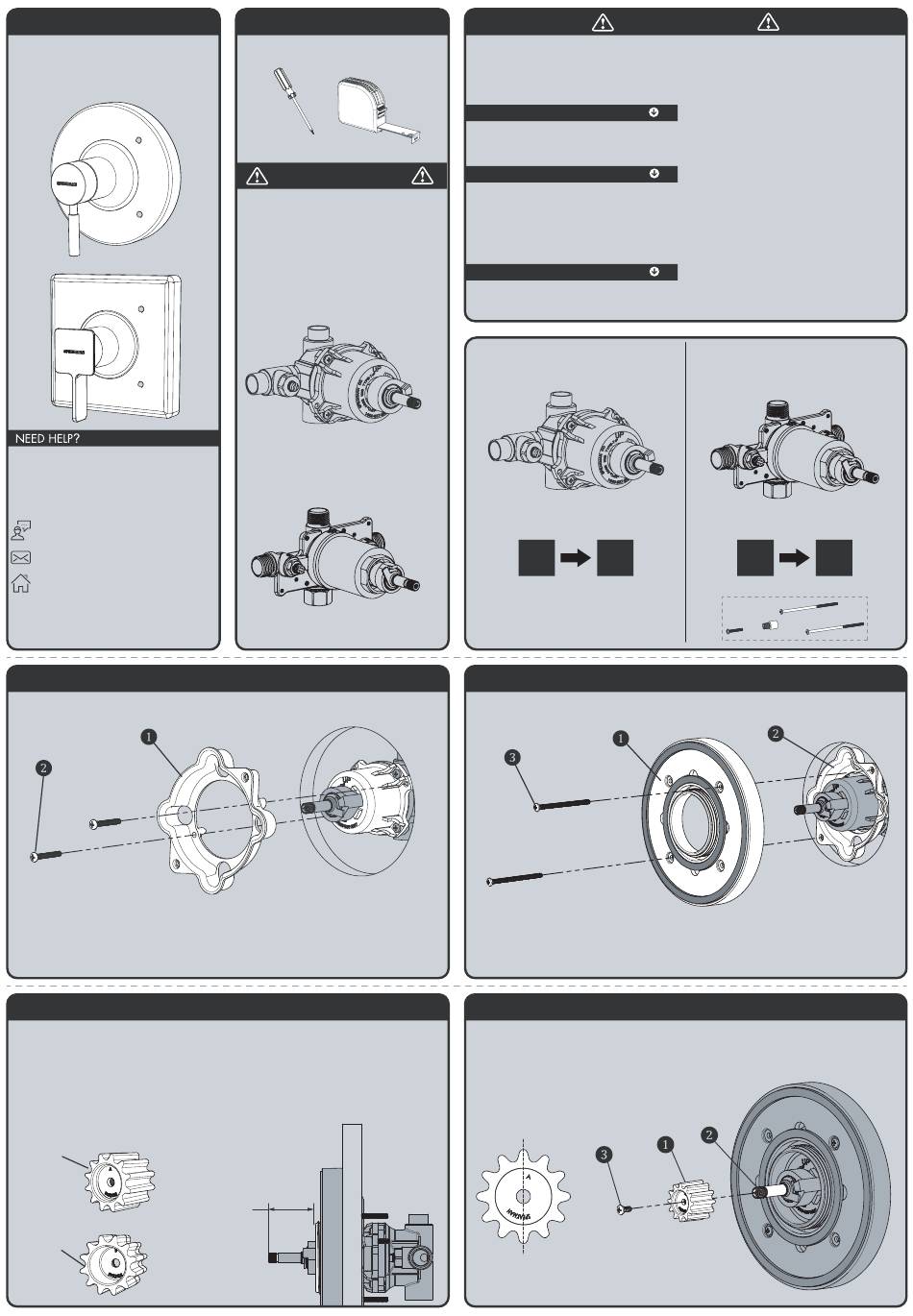

Clean front surface of wall. Install Valve Mounting Plate ❶ to Speakman Valve, using the 8-32 x 1-1/8"
screws ❷ provided. Take care to not over tighten mounting screws.
NOTE: The Valve Mounting Plate Assembly (1) should sit flush against the Speakman Valve when
installed correctly.
3
The Universal Valve Trim kit includes two Spindle Adapters that allow for both shallow and deep valve
mount installations. Measure the distance between the front lip of the Wall Mounting Plate and the end of
the Valve Spindle as shown below to determine correct selection of Spindle Adapter.
• If the measurement falls between 1-7/8" to
for installation.
• If the measurement falls between 1-3/8" to
for installation.
A
B

TOOLS AND SUPPLIES

Measuring
Phillips
Screwdriver Tape

IMPORTANT

• Circular Trim Package shown for reference. While
the appearance of your trim may be different, the
installation steps are the same.
• This Trim Package is intended to mount to the
following Speakman valves. Please verify the model
of your valve prior to installation.
SPEAKMAN
®
SentinelPro
CPV-5000 Thermostatic / Balance Pressure Valve
*NOT FOR USE WITH DIVERTER/VOLUME CONTROL MODELS
SPEAKMAN
®
SentinelPro
CPV-TP Thermostatic / Balance Pressure Valve
*NOT FOR USE WITH DIVERTER/VOLUME CONTROL MODELS
Cpv-5000 Installation

CPV-5000 INSTALLATION

2-1/2", the Spline Adapter marked "A" is needed
1-7/8", the Spline Adapter marked "B" is needed
MEASURE
• Do not over-tighten any connections or damage may occur.
• Be sure to read instructions thoroughly before beginning installation.

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to wear eye protection while cutting pipe.

MAINTENANCE

Your new Speakman Product is designed for years of trouble-free performance. Keep it looking new by cleaning it
periodically with a soft cloth. The use of harsh chemicals and abrasives on any of the Speakman custom finish products
may damage the finish and void the product warranty. Please be sure to only use approved cleaners. Please contact
Speakman for any clarification of acceptable cleaners.

WARRANTY

® Additional warranty information can be found at: www.speakman.com
If installing to a Speakman
CPV-5000 valve:
®
STEPS
1
2
Secure the Wall Mounting Plate ❶ to the Valve Mounting Plate ❷ using the 8-32 X 2½" Screws ❸
provided.
NOTE: The back surface of the Valve Mounting Plate Assembly (1) should sit flush against the wall when
installed correctly.
4
Confirm that the Valve is in the off position. Insert Spline Adapter ❶ (Spline Adapter selection
determined in STEP 3) over Valve Spindle ❷. One set of splines on the adapter must be oriented
perfectly vertical when installed, as shown below. Secure the Spline Adapter with the 8-32 X 3/8" Screw
❸ provided.
VERTICAL
LINE
IMPORTANT
If installing to a Speakman
CPV-TP valve:
STEPS
6 7
Cpv-Tp Installation HARDWARE BAG
CPV-5000 INSTALLATION
CPV-5000 INSTALLATION
11
