Summary of Contents for Regulus HSK 390 P

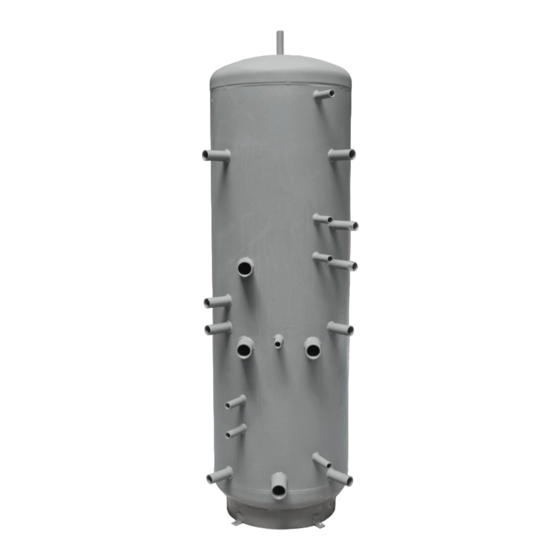

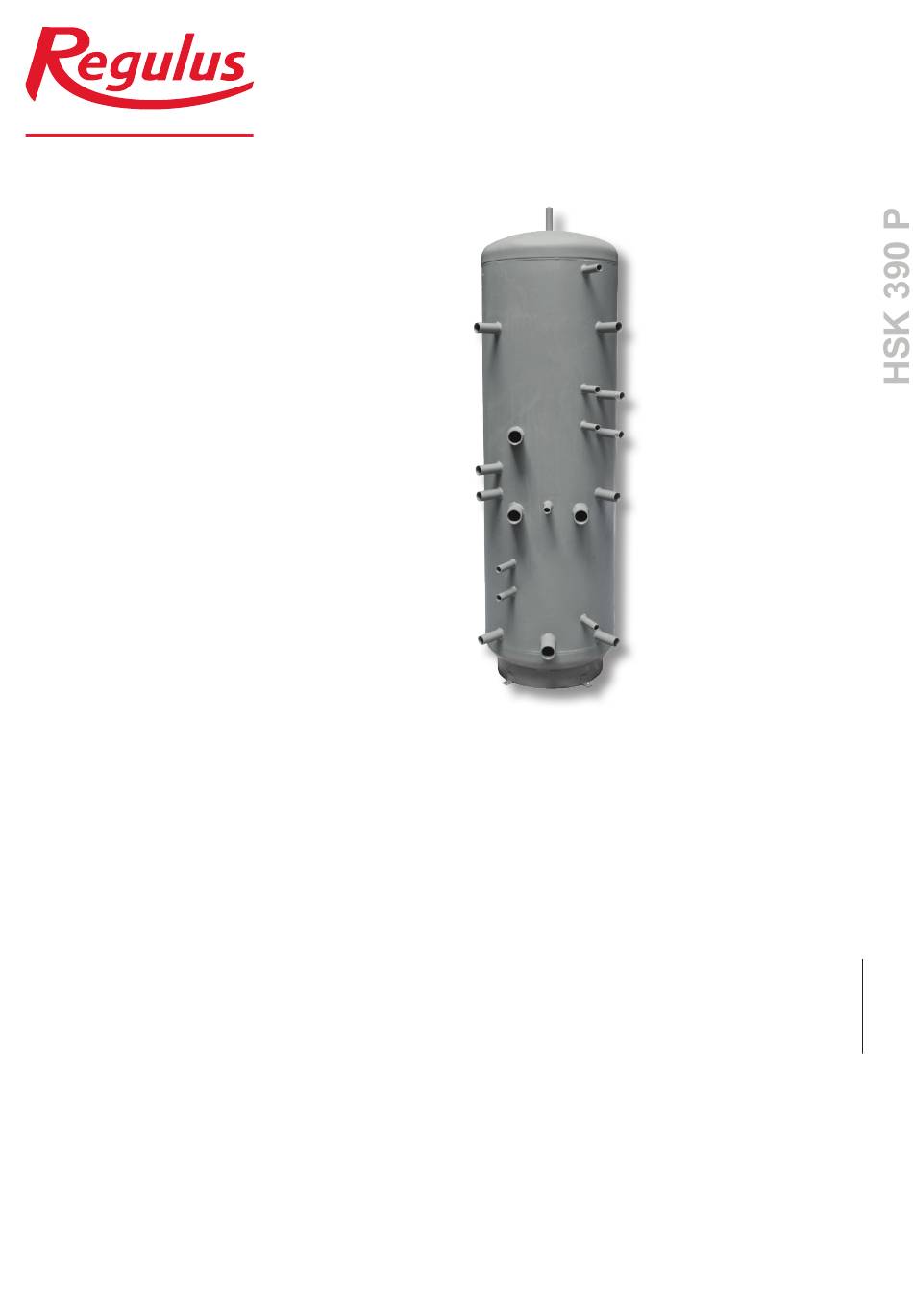

- Page 1 Installation and Operation Instructions THERMAL STORE with stainless-steel DHW tube heat exchanger HSK 390 P HSK 390 P...
-
Page 2: Table Of Contents
1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Packaging ............................2 General Information ............................3 Technical Data and Dimensions of HSK 390 P Thermal Store ..............4 Operation ................................ 5 Typical Layout Examples with Thermal Store ..................... 6 Installation and Commissioning ........................ -
Page 3: Description
1 - Description HSK P Thermal Stores are intended for storing and subsequent distribution of thermal energy of heating water. They are fitted with a stainless-steel tube DHW heat exchanger, permitting installation of electric heating elements and connection of other heat sources. For a better thermal layering, the tank volume is separated by a baffle. For proper operation of a tank, it is necessary to have an optimum hydraulic design of the entire heating system, i.e. -
Page 4: Technical Data And Dimensions Of Hsk 390 P Thermal Store
3 - Technical Data and Dimensions of HSK 390 P Model HSK 390 P Combination Thermal Store Main features HSK 390 P Application accumulation of thermal energy for space and DHW heating combination thermal store with DHW heating in an integrated... -
Page 5: Operation
HSK 390 P Combination Thermal Store Dimensions TAPPINGS Tipping height without insulation 1940 mm connec- height pos. description tion [mm] Heat sources Incoming from heat source G 1“ 1780 Return to heat source G 1“ 1210 Incoming from heat source G 1“... -
Page 6: Typical Layout Examples With Thermal Store
5 - Typical Layout Examples with Thermal Store Example I. Heat pump + el. heating element + fireplace + PV possible recirculation HW CW electric heating element for DHW electric heating elements for space heating PV el. heating elements can be inserted here Example II. -
Page 7: Installation And Commissioning
6 - Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 8: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Product description Thermal insulation is a part of thermal stores, preventing heat loss. For easier handling, the insulation shall not be fitted on the tank until it reaches its definite place of installation. The insulation is made of fleece with a PUR leather surface. - Page 9 │...
-
Page 10: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packaging shall be disposed of in compliance with the valid rules. - Page 11 │...
- Page 12 ©2023 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
