- Page 1 Installation and Operation Manual THERMAL STORE with stainless-steel DHW heat exchanger HSK 250, 650 PB HSK 250, 650 PB...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ..............................1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Packaging ............................2 General Information ............................3 Technical Data and Dimensions of HSK PB Thermal Stores ..............4 Operation ............................... 5 Connection of HSK PB to a Heating System ..................... 6 Installation and Commissioning ........................ -
Page 3: Description
1 - Description Combination thermal stores of HSK PB series with an integrated stainless-steel heat exchanger and a tight separating metal plate is intended for storing heat and heating of domestic hot water. Thanks to the modified construction and the tight separating plate, it is sufficient to use only one zone valve for switching between heating the upper and lower part of the tank. -
Page 4: Technical Data And Dimensions Of Hsk Pb Thermal Stores

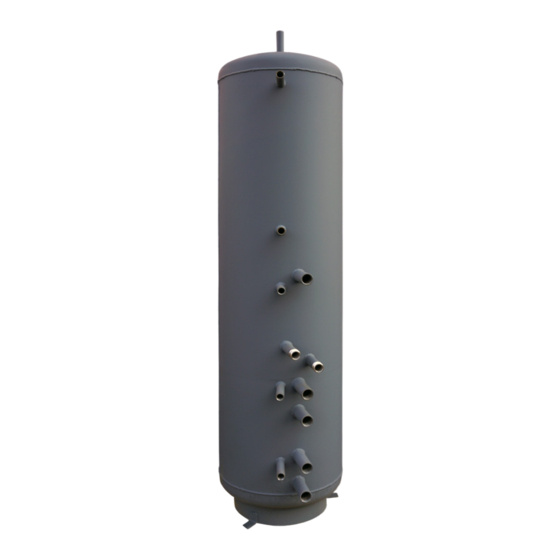

3 - Technical Data and Dimensions of HSK PB Thermal Stores HSK 250 PB Combination Thermal Store Main Features Combination thermal store with integrated stainless-steel heat exchanger and a tight separating metal sheet is intended for heat accumulation and DHW heating. Thanks to its modified design and the... - Page 5 HSK 250 PB Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 1" F Return to heat source G 1" F Supply from heat source G 1" F Heating system Flow to heating system G 1"...
- Page 6 HSK 650 PB Combination Thermal Store Main Features Combination thermal store with integrated stainless-steel heat exchanger and a tight separating metal sheet is intended for heat accumulation and DHW heating. Thanks to its modified design and the tight separating metal sheet, just one zone valve is Application sufficient for switching between heating the upper and lower tank sections.
-
Page 7: Operation
HSK 650 PB Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 1" F Return to heat source G 1" F Supply from heat source G 1" F 1250 Heating system Flow to heating system G 1"... -
Page 8: Connection Of Hsk Pb To A Heating System
5 - Connection of HSK PB to a Heating System 5.1 HSK 250 PB │... - Page 9 5.2 HSK 650 PB │...
-
Page 10: Installation And Commissioning
6 - Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 11: Maintenance
○ defects caused by failure to use the product in compliance with its intended purpose, by improper use and insufficient maintenance, ○ defects caused by mechanical damage to the product, ○ defects caused by tampering or incompetent repair. 8 - Maintenance Clean the exterior of the tank with a soft cloth and a mild detergent. - Page 12 ©2024 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
