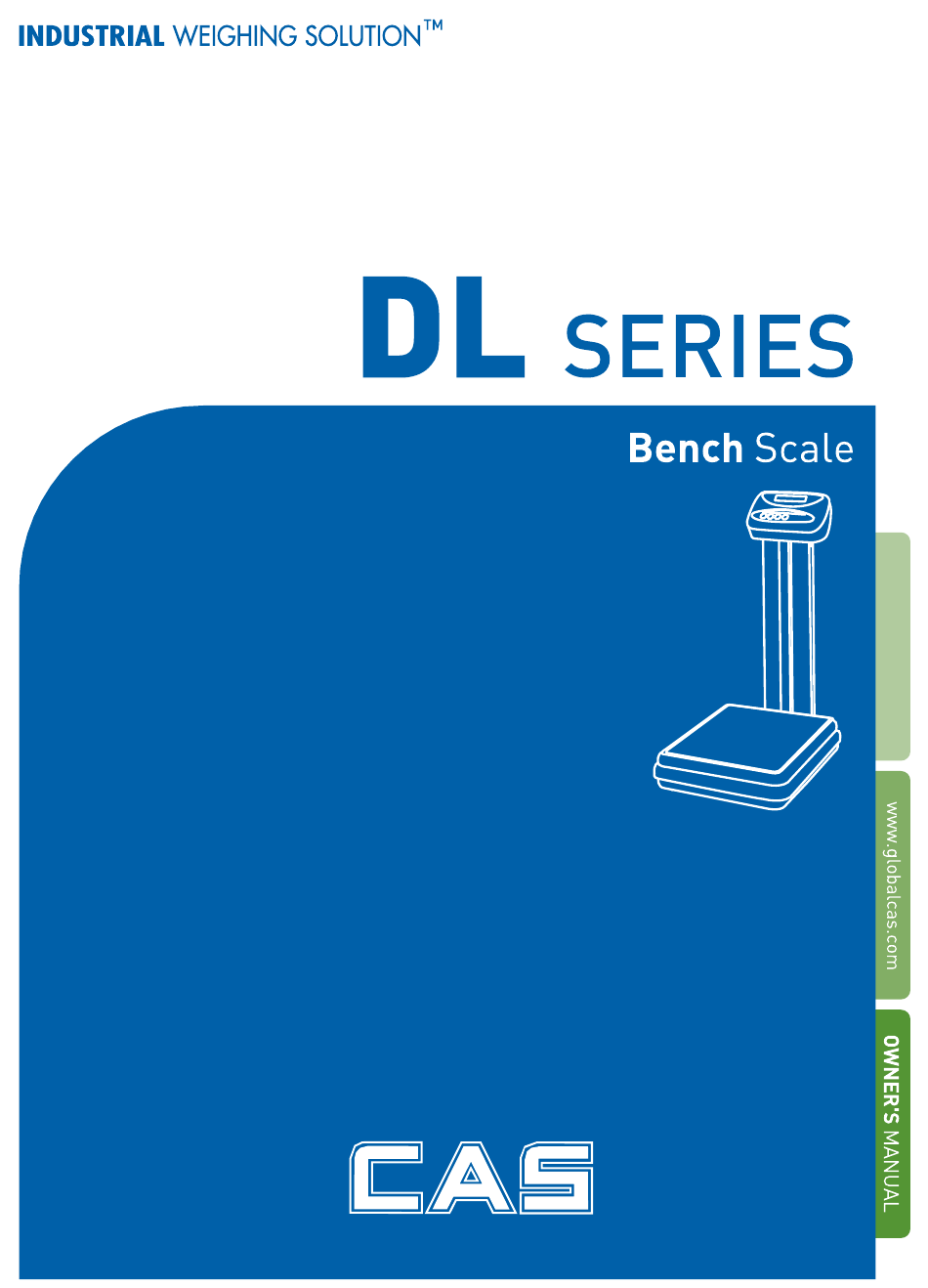

CAS DL Series Owner's Manual

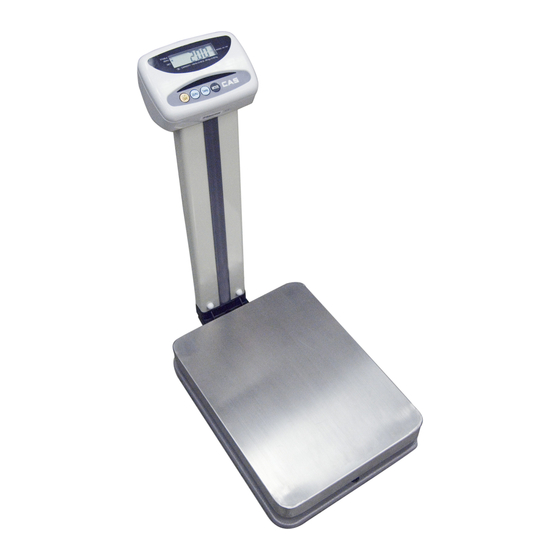

Bench scale
Hide thumbs Also See for DL Series:

Advertisement

Table of Contents

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL Series and is the answer not in the manual?

Questions and answers

Related Manuals for CAS DL Series

Summary of Contents for CAS DL Series

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ..........4 PREFACE ..............6 NAMES AND FUNCTIONS .....6 INSTALLATIONS ...........8 OPERATIONS ............9 1. General Weighing..........9 2. Weighing with Tare ........10 3. Changing Unit of Weight......10 4. HOLD Function..........11 5. Comparator Function ........11 6. AUTO Power Off Function......13 BATTERY MAINTENANCE ....14 ERROR MESSAGE ..........14...

  • Page 5: Preface

    CAS products. We believe that your needs will be satisfied and you will have reliability. This manual will help you with proper operation and care of the DL series. Please keep this handy for future reference. NAMES AND FUNCTIONS...
  • Page 6 DISPLAY AND KEYBOARD ■ KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare. Used to operate the following sequence on the display. [WEIGHT]  [HOLD]  [WL on or off]  [WEIGHT] Used to turn on and off the scale.

  • Page 7: Installations

    INSTALLATIONS 1. Insert and fasten the bracket support assembly screws. 2. Connect the load cell wire and power line to head. 3. Insert the support cover into the support. 4. Insert and fasten the screws.

  • Page 8: Operations

    OPERATIONS ■ Turn on the display by pressing the ON/OFF key. Then the display will show all the segments and count up "0" to "9". You may stop this automatic counting by pressing the ZERO key. ■ When you turn on the display, make sure that platter is empty. Otherwise, display will show "Err", an error of initial zero range.

  • Page 9: Weighing With Tare

    2. Weighing with Tare ■ TARE means the weight of container being used for a commodity. ■ TARE key function is to subtract the weight of the container from full weight loaded. ① Place a container on the ② Press the TARE key. ③...

  • Page 10: Hold Function

    4. HOLD Function ■ When the weight is not stable, press the MODE key. The display shows the “HOLd” and then press ZERO key. The display will show average weight. ② The display shows the "HOLd". ③ Press ZERO key. Then "HOLd" display blink for two times.
  • Page 11 ④ Press the MODE key to ⑤ Press ZERO key to set up ⑥ If you set up HIGH limit you have number increase. To HIGH limit. The display shows can go out by pressing ZERO move flash to next digit, press "0.0"...

  • Page 12: Auto Power Off Function

    6. Auto Power Off Function Auto-Power off function is to automatically power off as time is set. This function is helpful to save battery, which is not in use. The following is the setting procedure of Auto-power off. ① When the scale is turned off ②...

  • Page 13: Battery Maintenance

    Set the platter empty. Try to turn OFF and ON the scale. Init Problems on Analog Module Call your CAS dealer if still problems. Remove it from the platter Overload on the platter Do not put somthing exceeding maximum capacity on the platter...

  • Page 14: Specifications

    SPECIFICATIONS MODEL DL-60N DL-100N DL-150N CAPACITY 150lb / 60.00kg 200lb / 100.00kg 300lb / 150.00kg MIN. DIVISION 0.05lb / 20g 0.1lb / 50g 0.1lb / 50g INTERNAL RESOLUTION 1/30,000 1 / 20,000 1 / 30,000 EXTERNAL RESOLUTION 1/3,000 1 / 2,000 1 / 3,000 DISPLAY 5 digit LCD...
  • Page 15 MEMO...
  • Page 16 MEMO...
  • Page 17 MEMO...

This manual is also suitable for:

Dl-60nDl-100nDl-150n
