CAS DB-1 Owner's Manual

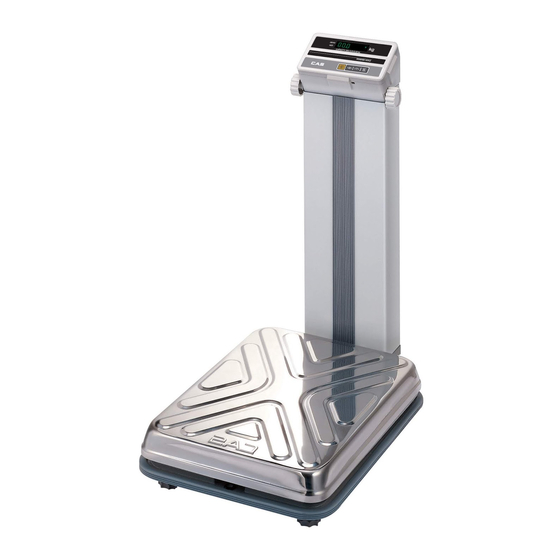

Bench scale
Hide thumbs

Advertisement

Table of Contents

2

Advertisement

Table of Contents
loading

Related Manuals for CAS DB-1

Summary of Contents for CAS DB-1

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS............ 4 PREFACE.............. 6 NAMES AND FUNCTIONS......... 6 INSTALLATIONS..........7 OPERATIONS............8 ..........8 1. General Weighing ..........9 2. Weighing with Tare ..........10 3. Hold Function ..........11 4. How to Set Print ERROR MESSAGES ......... 13 SPECIFICATIONS..........14...

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    CAS products. We believe that your needs will be satisfied and you will have reliability. This manual will help you with proper operation and are of the DB-1/1H series. Please keep this handy for future reference. NAMES AND FUNCTIONS...

  • Page 6: Installations

    KEYBOARD KEYS FUNCTIONS Turn the displays on or off. Used to correct the zero point. Used to enter a tare weight. Used to clear a tare weight. PRINT FUNCTION (OPTION) – Print version When the weight is not stable, display will show the average weight for 4 seconds.

  • Page 7: Operations

    3. Insert the support cover into the 4. Attach the head to the support. support as fig 3. Insert and fasten stop bolt as fig 4. fig. 3 fig. 4 OPERATIONS 1. General Weighing ■ When you turn on the power switch, the scale will count “00000” to “99999”. Then the scale will read “0.00”...

  • Page 8: Weighing With Tare

    2. Tare Weighing ■ Tare is the weight of container being used for a commodity. ■ The key subtracts the weight of the container. ① Place the container on the ② Press the key. ③ Place the commodity in the platter.

  • Page 9: Hold Function

    3. Hold Function (Hold version) ■ Key hold ① Place an item on the platter and then press the HOLD key. NE T NE T ② “ HOLD” is shown on the ③ Average weight is shown on display. the display. ■...

  • Page 10: How To Set Print

    4. How to Print (print version) NE T ① While pressing the PRINT key, press the POWER key. The display shows “U SEt”. NE T ② Press the TARE key, the display shows “Pr off”. (If the setiing value already exist in the scale, then it would display as the setting.) ③...
  • Page 11 Sample format(DLP-50) 1. Weight + tare 2. Weight + Tare + Barcode Sample format(DEP-50)

  • Page 12: Error Messages

    Remove unstable facts. not stable. The "Err 1" occurs when a current "Err 1" zero point has shifted from the last Please call your CAS dealer. span calibration. "Err 3" The "Err 3" is an overload error. Please remove the weight.

  • Page 13: Specifications

    SPECIFICATIONS MODEL DB-1 DB-1H 60kg 150kg 200kg 60kg 150kg CAPACITY 30kg / 0.01kg 60kg / 0.02kg 100kg / 0.05kg 30kg / 0.005kg 60kg / 0.01kg 60kg / 0.02kg 150kg / 0.05kg 200kg / 0.1kg 60kg / 0.01kg 150kg / 0.02kg...
  • Page 14 MEMO...
  • Page 15 MEMO...
  • Page 16 MEMO...
  • Page 17 MEMO...

This manual is also suitable for:

Db-1h
