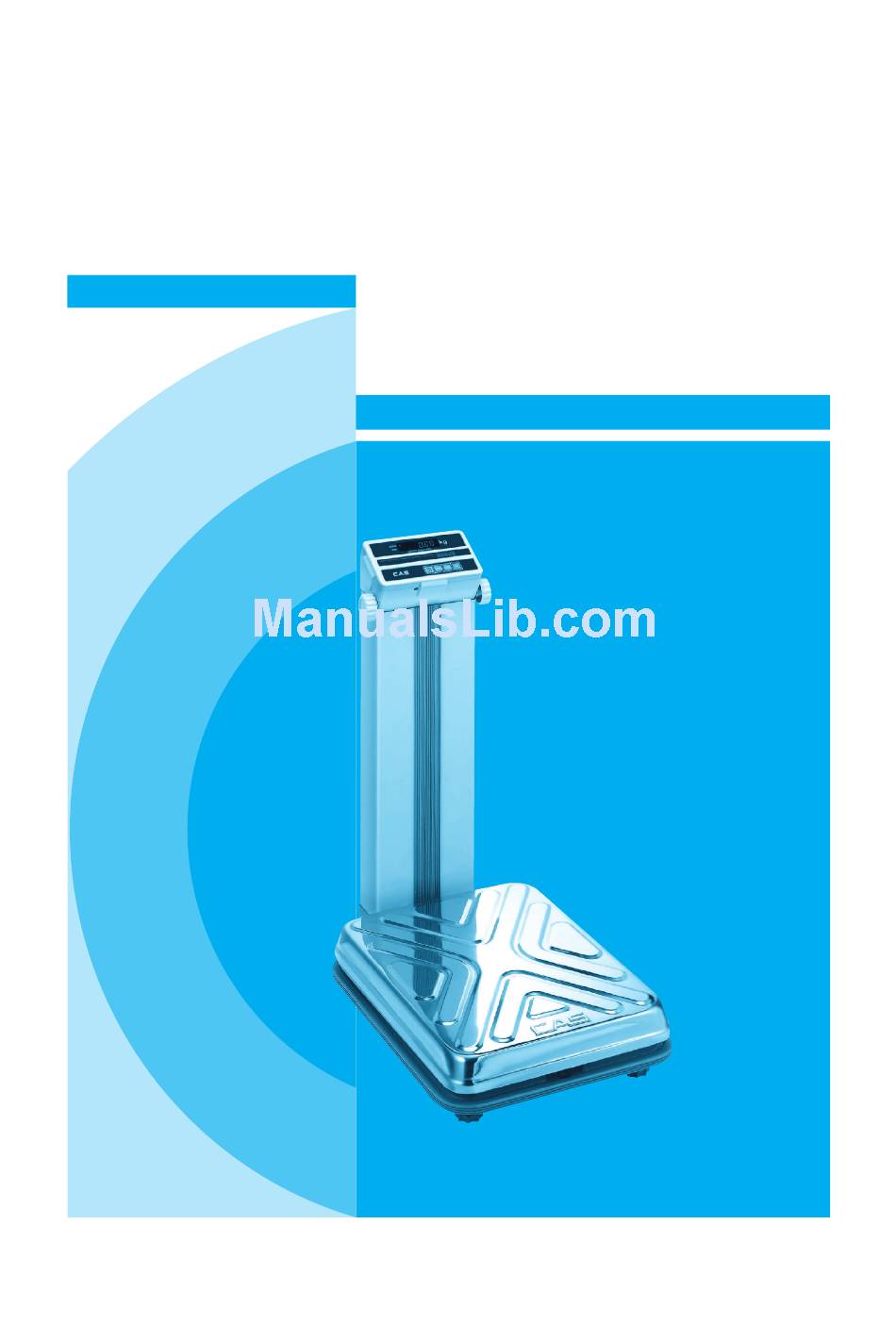

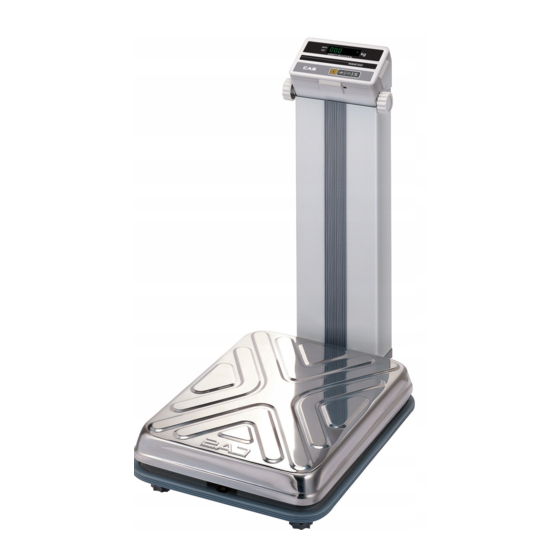

  • Page 1 DB-1H Bench Scale OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS PREFACE NAMES AND FUNCTIONS INSTALLATIONS OPERATIONS 1. General Weighing 2. Weighing with Tare ERROR MESSAGES SPECIFICATIONS SPECIFICATIONS FOR CE MARKING...

  • Page 3: Precautions

    PRECAUTIONS Make sure that you plug your scale into the proper power outlet. Plug into a power outlet 30 minutes before operations. Place the scale on a flat and stable Do not subject the scale to sudden surface. temperature changes. Do not subject the platter to sudden This scale must be installed in a dry shocks.
  • Page 4 If the scale is not properly level, please adjust the 4 legs at the bottom of the scale (turn legs clockwise or counterclockwise) so as to center the bubble of the leveling gauge inside the indicated circle (See Fig.) Lift the platter, then you will see the leveling gauge.

  • Page 5: Preface

    CAS products. We believe that your needs will be satisfied and you will have reliability. This manual will help you with proper operation and care of the DB-1H series. Please keep this handy for future reference. NAMES AND FUNCTIONS...

  • Page 6: Installations

    KEYBOARD KEYS FUNCTIONS Turn the display on or off. Used to correct the zero point. ZERO Used to enter a tare weight. TARE Used to clear a tare weight. No function key. INSTALLATIONS 1. Insert the power line into the support. 2.

  • Page 7: Operations

    3. Insert the support cover into the 4. Attach the head to the support. support as fig 3. Insert and fasten stop bolt as fig 4. Support cover Support Stop bolt fig. 3 fig. 4 OPERATIONS When you turn on the power switch, the scale will count "00000" to "99999". Then the scale will read "0.00"...

  • Page 8: Weighing With Tare

    Err 1 An error of the initial ZERO range 2.Make sure that there is a platter on the scale Call your CAS dealer Err 2 Failure of returning the normal mode Failure of the analog module Call your CAS dealer...

  • Page 9: Specifications

    SPECIFICATIONS MODEL DB-1H 30kg 60kg 150kg CAPACITY 0 15kg 0.005kg, 10 30kg 0.01kg, 0 60kg 0.02kg, 15 30kg 0.01kg 30 60kg 0.02kg 60 150kg 0.05kg Vacuum Fluorescent Display DISPLAY: 5 DIGIT WEIGHT ZERO and NET DISPLAY DESIGNATORS -30.00 kg -60.00kg -99.95 kg...

  • Page 10: Specifications For Ce Marking

    SPECIFICATIONS FOR CE MARKING 1. Symbol Description SYMBOL PUBLICATION DESCRIPTION IEC 417. NO. 5032 ALTERNATING CURRENT IEC 417. NO. 5019 PROTECTIVE CONDUCTOR TERMINAL 2. Electrical conditions for LVD (Low Voltage Directive) testing. Power source: AC 220V ~ 240V 50Hz, 250mA, 10W Insulation class: 3.
