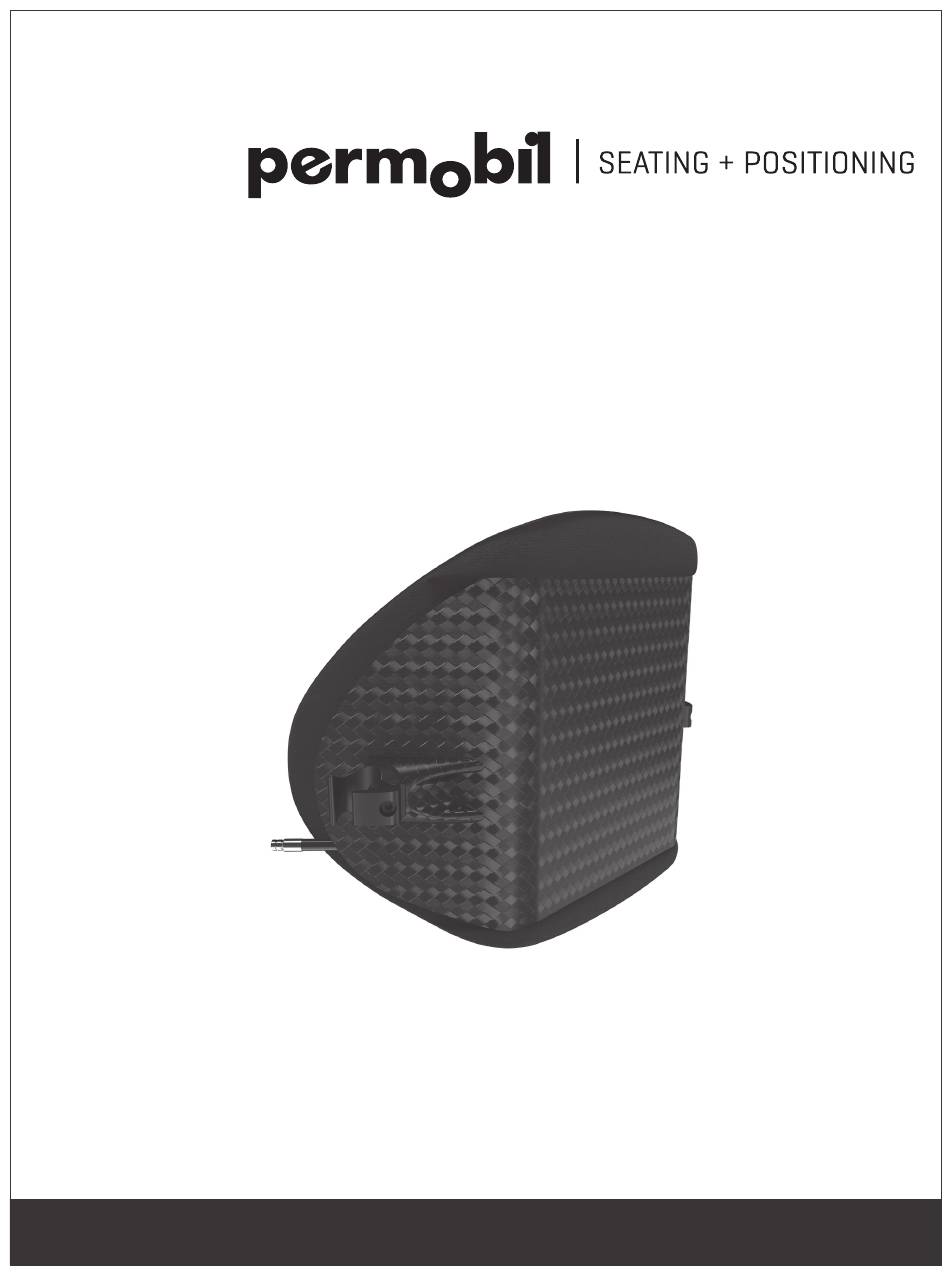

- Page 1 ROHO ® AGILITY CARBON ® Contour Back Support Operation Manual s h a p e f i t t i n g t e c h n o l o g y ®...
-
Page 3: Table Of Contents
. Zytel is a registered trademark of DuPont. ® ® Product information is changed as needed; current product information is available at permobilus.com. ROHO, Inc. is part of Permobil Seating and Positioning. Rev. 2019-02-10 © 2016, 2019 Permobil... -
Page 4: Intended Use
ROHO AGILITY CARBON Contour Back Support Operation Manual Intended Use The ROHO AGILITY CARBON Contour Back Support (AGILITY CARBON) is a lightweight back support replacement for a wheelchair and is intended to ® ® provide trunk/pelvis support and positioning. AGILITY CARBON has a weight limit of 265 lbs. (120.2 kg). Models include:... -
Page 5: Product Specifications
ROHO AGILITY CARBON Contour Back Support Operation Manual Important Safety Information Cautions: - AGILITY CARBON is intended to be used with an AGILITY CARBON - Unless otherwise stated in this manual, the product is not intended cover, foam pad, and either the air insert or the foam insert. The air to be used with, and has not been tested for use with, other insert and the foam insert are not intended to be used together. -
Page 6: Parts Detail
ROHO AGILITY CARBON Contour Back Support Operation Manual Parts Detail Package Contents: Back Shell with Cover and Hardware Back Shell Cover Attachment Slot Hardware T-handle wrench Fastener Circle (x2) Cover Cover with foam and air inserts Hand pump Back Shell... - Page 7 ROHO AGILITY CARBON Contour Back Support Operation Manual Hardware Selection Part One: Discs / Screws Warnings: - If the wrong hardware is used, the product will NOT fit correctly on the wheelchair. Follow these instructions to select the correct hardware.
- Page 8 ROHO AGILITY CARBON Contour Back Support Operation Manual Hardware Selection Part Two: Outer Cane Clamps Instructions: Select the correct outer cane clamps. Then, continue with "Hardware Attachment". 1. Measure the diameter of your wheelchair canes. Diameter = "X". 2. Select the correct outer cane clamps.
-
Page 9: Hardware Selection
ROHO AGILITY CARBON Contour Back Support Operation Manual Hardware Attachment Warnings: - If the wrong hardware is used, the product will NOT fit correctly on the wheelchair. Before attaching the hardware, follow the "Hardware Selection" instructions to ensure you are using the Discs correct hardware for the wheelchair. -
Page 10: Angle Adjustment
ROHO AGILITY CARBON Contour Back Support Operation Manual Angle Adjustment Follow these instructions for left and right sides. Warnings: - DO NOT adjust the angle while the product is installed on the wheelchair. If the product is installed, first remove it from the wheelchair before adjusting the angle. -
Page 11: Installation And Height Adjustment
ROHO AGILITY CARBON Contour Back Support Operation Manual Installation and Height Adjustment Follow the instructions for Installation Option A or Installation Warnings: Option B, depending on your wheelchair cane type. - DO NOT install, remove, or adjust the height of the product while the individual is seated in the wheelchair. -
Page 12: Lumbar Support Pad
ROHO AGILITY CARBON Contour Back Support Operation Manual Installation and Height Adjustment, continued Installation Option B Use this option if your wheelchair canes have push handles or other equipment that may interfere with installation. 1. Before installing the product make sure the hardware is correct for the wheelchair and back shell. -
Page 13: Product Removal
ROHO AGILITY CARBON Contour Back Support Operation Manual Product Removal Warning: DO NOT remove the product while the individual is seated in the wheelchair. For back canes WITHOUT push handles: For back canes WITH push handles: 1. Loosen, but do not remove, the 2. -
Page 14: Cover Removal And Installation
ROHO AGILITY CARBON Contour Back Support Operation Manual Cover Removal and Installation Warnings: - DO NOT remove or install the cover while the individual is in the wheelchair. - DO NOT use the product without the cover, the foam pad, and the air insert or foam insert. -
Page 15: Foam Pad With Air Insert Removal And Installation
ROHO AGILITY CARBON Contour Back Support Operation Manual Foam Pad and Air Insert Removal and Installation Warning: Inspect the foam and air insert for damage and replace if necessary. To Remove the Foam Pad and Air Insert 1. Detach the cover and foam from the back shell. -
Page 16: Air Insert Adjustment
ROHO AGILITY CARBON Contour Back Support Operation Manual Air Insert Adjustment Warnings: DO NOT: - Check inflation frequently, at least once a day! - use the air insert as a seat cushion. - The air insert must be used with the air cells facing the individual. -
Page 17: Troubleshooting
ROHO AGILITY CARBON Contour Back Support Operation Manual Troubleshooting For additional assistance, contact your equipment provider, distributor, or Customer Support. The hardware is loose The wheelchair canes are too small. Check the outer cane clamp size. If the back canes on your wheelchair are ¾ in. -
Page 18: Cleaning And Disinfecting
ROHO AGILITY CARBON Contour Back Support Operation Manual Cleaning and Disinfecting Warnings: Cautions: - Cleaning and disinfecting are separate processes. Cleaning must - DO NOT use abrasives such as steel wool or scouring pads on the precede disinfection. Before use by a different individual: clean, product. - Page 20 Mailing/Shipping Address: 1501 South 74th Street, Belleville, IL 62223-5900, USA Administrative Offices: 100 North Florida Avenue, Belleville, IL 62221-5429, USA U.S.: 1-800-851-3449 • Fax 1-888-551-3449 Outside U.S.: 1-618-277-9150 • Fax 1-618-277-6518 permobilus.com T20232 Rev. 2019-02-10 Print Date: Qty:...
