GPS Antenna Connection
When using GPS, install it in a location that will not hinder positioning and
in a direction that will not hinder driving.
GPS Antenna
NOTE:
• The supplied GPS antenna is only for use in the car. It cannot be installed outside
the vehicle.
• Do not bend or pull the coaxial cable forcibly.
• Do not step on the coaxial cable, place heavy objects on it, or pinch it.
• Do not touch the connection cable with wet hands.
• When routing the coaxial cable, be careful not to apply excessive force.

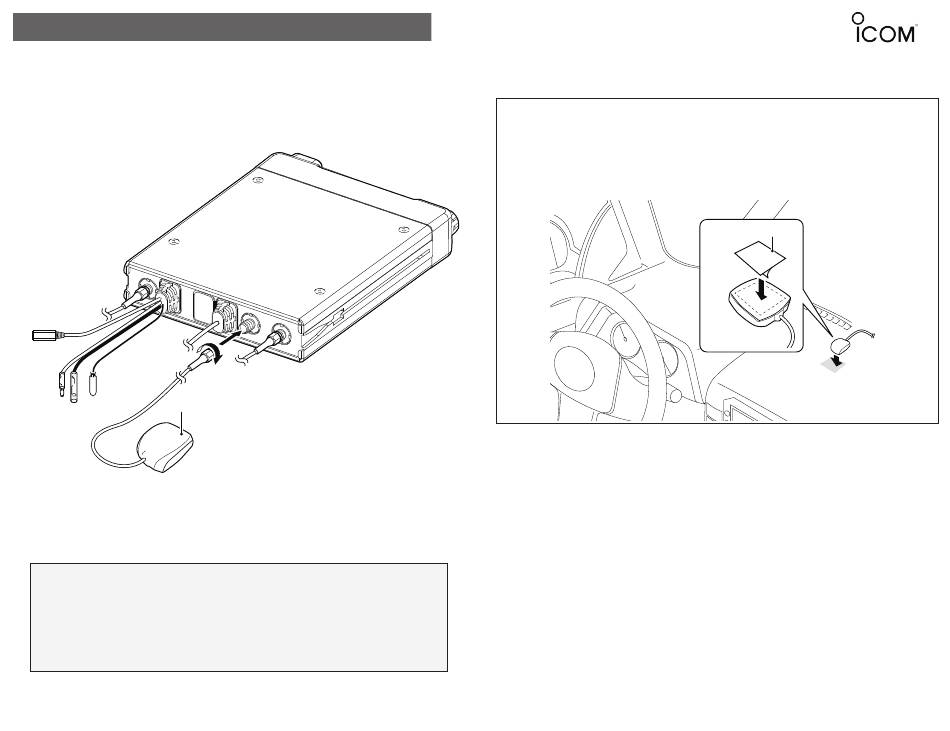

IP501M Rear View
NOTE: Install the antenna nut part
by hand turning it clockwise and
make sure it is not too loose or
over tight.
Attaching the GPS Antenna
• Before installation, remove dust and dirt from the dashboard with the
included cleaner/sponge.
• To make it easier for reception, install the antenna on a horizontal
surface (near the windshield) on the dashboard.
But not obstructing the view
www.icomamerica.com
©2020 Icom America Inc. The Icom logo is a registered trademark of Icom Inc. 42827
Double-sided
adhesive pad
Back of GPS antenna
