Icom IP501M Installation Manual page 2

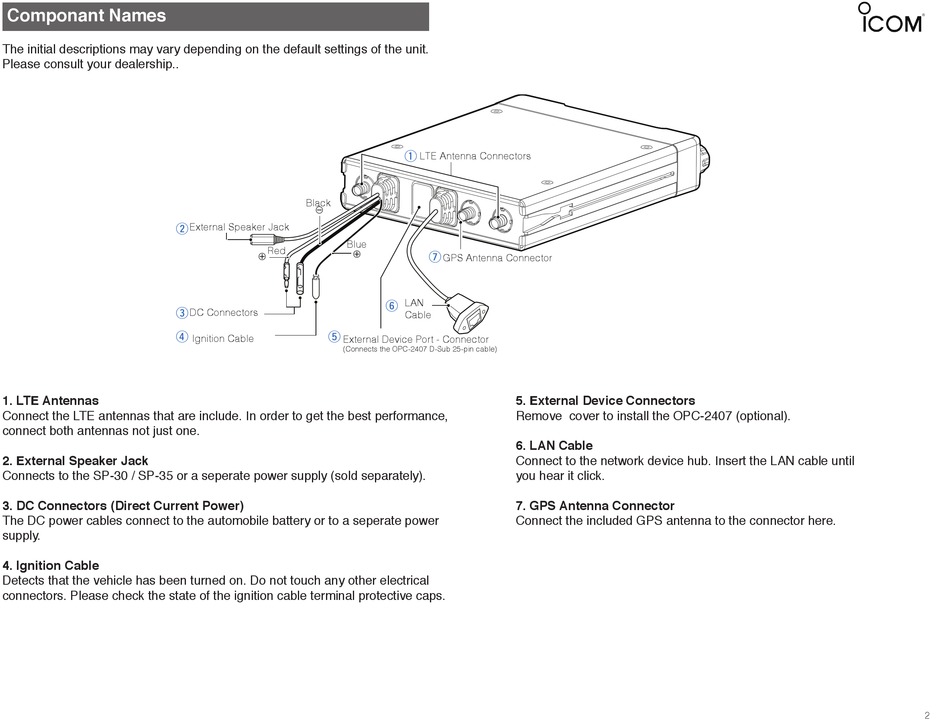

Componant Names
The initial descriptions may vary depending on the default settings of the unit.
Please consult your dealership..
w
e
r
1. LTE Antennas
Connect the LTE antennas that are include. In order to get the best performance,
connect both antennas not just one.
2. External Speaker Jack
Connects to the SP-30 / SP-35 or a seperate power supply (sold separately).
3. DC Connectors (Direct Current Power)
The DC power cables connect to the automobile battery or to a seperate power
supply.
4. Ignition Cable
Detects that the vehicle has been turned on. Do not touch any other electrical
connectors. Please check the state of the ignition cable terminal protective caps.
Black
_
External Speaker Jack
Blue
Red
+ +
+
DC Connectors
Ignition Cable
t External Device Port - Connector
(Connects the OPC-2407 D-Sub 25-pin cable)
LTE Antenna Connectors
q
GPS Antenna Connector
u
LAN
y
Cable
5. External Device Connectors
Remove cover to install the OPC-2407 (optional).
6. LAN Cable
Connect to the network device hub. Insert the LAN cable until
you hear it click.
7. GPS Antenna Connector
Connect the included GPS antenna to the connector here.
2
