Icom IP501M Installation Manual page 3

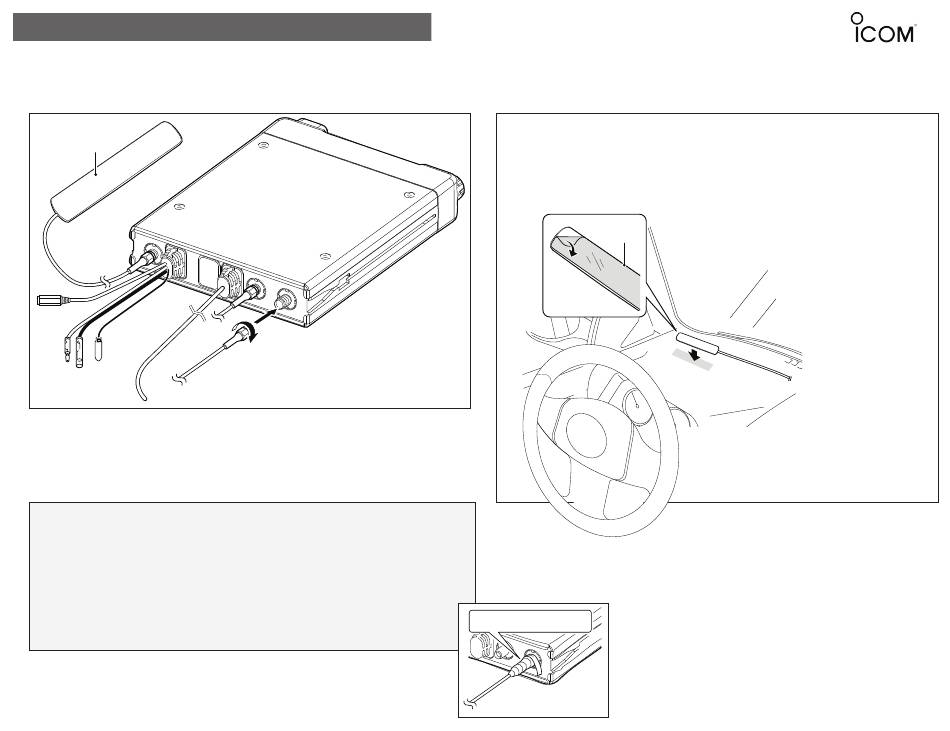

LTE Antenna Connection
Attach both LTE antennas to ensure sufficient performance.
NOTE: If you feel that the radio reception is not ideal, change the location of the LTE antenna.
IP501M Rear View
LTE Antenna
NOTE:
• Icom has received a technical standard conformity certification (construction design
certification), so only the included LTE antenna can be used.
• Do not bend or pull the coaxial cable forcibly.
• Do not step on the coaxial cable, place heavy objects on it, or pinch it.
• Do not touch the connection cable with wet hands.
• When routing the coaxial cable, be careful not to apply excessive force.
• It is recommended if your vehicle is in a damp environment to wrap a waterproof
self-adhesive tape around the cables (LTE antenna, GPS antenna DC power cables etc)
as shown in the drawing to help guard against the effects of any water intrusion.
NOTE: When attaching the antenna nut
to the connector DO NOT over tighten.
Before installing, clean the dashboard from dirt and debris.
• Keep at least 30cm between LTE antennas.
• Keep the LTE antenna and microphone at least 30cm away.
• To make it easier for reception, install the antenna on a horizontal surface
(near the windshield) on the dashboard. But not obstructing the view
Wrap tape from the top of the
coaxial cable as shown below.
LTE Antenna
Peel back the red colored film to adhere the
antenna to the dashboard surface. Peel and
stick as shown
3
