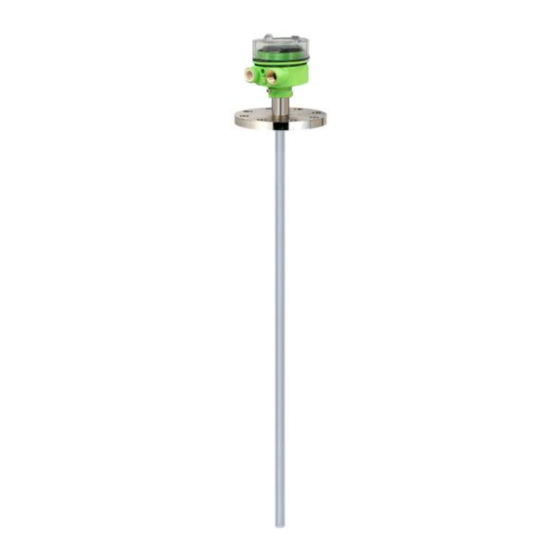

Capacitance type level transmitter
Hide thumbs Also See for HT-100CT-2 Series:
Table of Contents

Advertisement

Quick Links

HT(HPC)-100CT-2 Series
HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)-82-31-950-9700
FAX. : (00)-82-31-943-5600
www.hitrol.com

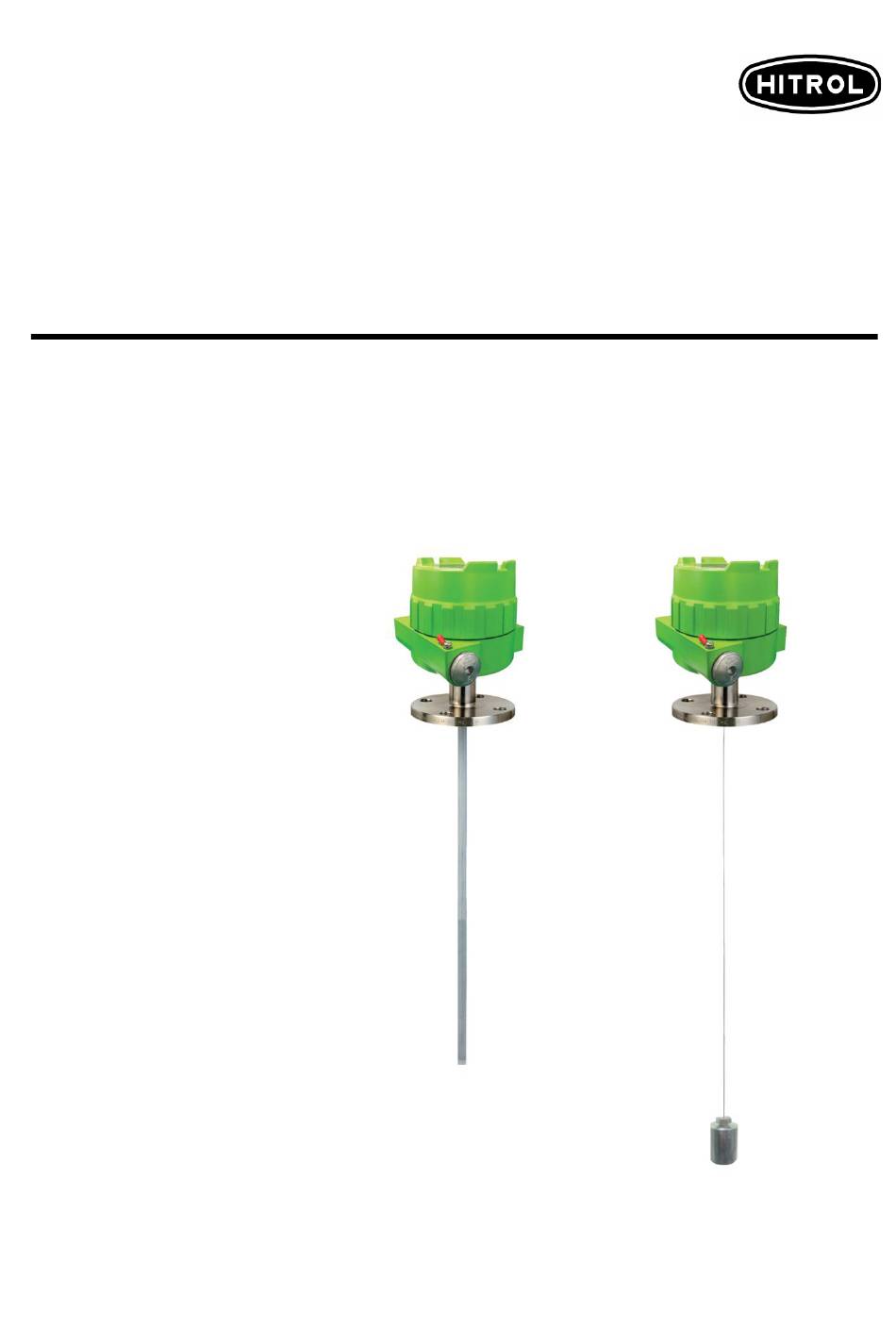

INSTRUCTION MANUAL
CAPACITANCE TYPE LEVEL TRANSMITTER
HT-100CT-2 Series
HPC-100CT-2 Series
Doc. no : HT(HPC)100CT2_IM_Eng_Rev.2
Issue date: 2020. 02
HITROL CO., LTD.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-100CT-2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HITROL HT-100CT-2 Series

Summary of Contents for HITROL HT-100CT-2 Series

  • Page 1 HT(HPC)-100CT-2 Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)-82-31-950-9700 FAX. : (00)-82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL CAPACITANCE TYPE LEVEL TRANSMITTER HT-100CT-2 Series HPC-100CT-2 Series Doc. no : HT(HPC)100CT2_IM_Eng_Rev.2 Issue date: 2020. 02...

  • Page 2: Table Of Contents

    Precautions for Transportation & Assembly · · 19 Precautions for Installation · · · · · · · · · · · · 19 Precautions for Grounding · · · · · · · · · 19 HITROL CO., LTD.

  • Page 3: Overview

    ΔC. ε₁ : Dielectric constant of air ε₂ : Dielectric constant of medium (contents) : Height of tank : Level of medium (contents) : Outer diameter of tank : Outer diameter of sensing probe HITROL CO., LTD.

  • Page 4: Specifications

    Ex-Proof (Ex d IIC T6, IP65) Ex-Proof (Ex d IIC T4, IP65) Ex-Proof (Ex d IIC T6, IP65) Ex-Proof (Ex d IIC T4, IP65) Wetted Parts Material SUS 304, 316L with TEFLON Process Connection PT 1”(M) Screw 50A JIS 10K RF Flange Housing ; Cable Entry AL. ; PF 3/4”(F) Accuracy ±0.5% F.S HITROL CO., LTD.

  • Page 5: Amplifier Specification

    ■ Bi-Color LED [Green] 정상 동작 State Indicator ■ Bi-Color LED [Red] 비정상 상태 경고 ■ Bi-Color LED [Orange] Zero, Span 미설정 Setting Menu Quick Menu / Set Menu / UART Display mA, %, m, ft, Level, Distance HITROL CO., LTD.

  • Page 6: Product Composition & Technical Data

    Teflon material: SS, Teflon material: material: SS w/ Teflon SS w/ Teflon Wire Probe Rod Probe Wire Probe Rod Probe Wire Probe Rod Probe with Ground Wire with Ground Wire with Ground tube with Ground rod (Corrosion) HITROL CO., LTD.
  • Page 7 Hexane, Liquid Butanol 17~18 Ammonia 16~25 Alcohol 16~31 Acetone Caustic soda 22~26 Ethanol Methanol 32~33 Glycerin 47~68 Water Sulfuric acid The data of dielectric constant value can be downloaded from technical data by accessing our website www.hitrol.com. HITROL CO., LTD.

  • Page 8: Installation

    ■ Ground rod type shall be used for corrosive liquid. (d) ■ Bracket insulated to a sensing probe shall be installed at the bottom of probe in order to fix it if the probe length is long or there is slopping of medium in the tank. (e) HITROL CO., LTD.
  • Page 9 ■ Ground tube type shall be applied for ball tank and external chamber shall be installed for side mounting of tank. (h) ■ When side mounting, the chamber shall be installed. (i) ■ Ground tube에는 적절한 위치에 vent holes이 있어야 합니다.( j) ( j) Vent holes HITROL CO., LTD.

  • Page 10: Metal Tanks

    When installing on a conductive tank, the transmitter housing and tank shall be grounded as shown below. 되어야 합니다 ■ Non-metal tanks (Non-conductive tank) When installed on a non-conductive tank, use the ground tube (rod) or ground wire type. Also, the transmitter housing and tank shall be grounded as shown below. HITROL CO., LTD.

  • Page 11: Wiring & Amp Composition

    Output “20mA” for 5 sec [90] Error Number Output Display of error number according to malfunction [91] Capacity value Output Display Zero, Span, and current measured value [100] Reset Reset the all setting [Table 1] Setting Menu List HITROL CO., LTD.
  • Page 12 1 second then the green LED will be flickering and you can go back to the Setting Mode. □ Select the Setting Menu About 1 sec. In the Setting Menu, use buttons to select the user setting function.  Pressing button for 1 second will enter the function.  HITROL CO., LTD.
  • Page 13 Tank Height The distance from the bottom of the tank to the top of the tank is called “Tank Height Distance This refers to the direction of the downing of the medium from the top of the tank. HITROL CO., LTD.
  • Page 14 Run screen configuration: You can check the sensor measurement status, sensitivity setting value, relay setting status, etc. ■ Monitoring using a PC Component – PC, USB Extension cable (typical USB to Micro USB B), UART ADAPTOR [USB Extension cable] [HT-100CT-2 PC UART Compositions] HITROL CO., LTD.
  • Page 15 HT(HPC)-100CT-2 Series [HT-100CT-2 PC UART Launch Screen Compositions] HITROL CO., LTD.
  • Page 16 Sensor cable open circuit, short, broken probe insulation, module sensor failure, etc Below or above the set value of Zero or Span NAMUR ME43 Caution area (below 4mA, above 20mA) Abnormal setting Zero, Span conversely set state [A Description of the Current Operating Status (##Err State)] HITROL CO., LTD.
  • Page 17 Continue [Open App] [Select the UART Connection] [Enter the password] [Home screen] [Operation screen] [HT-100CT-2 Smartphone UART Launcher] [Enter exit and Fly command] [Enter exit command] [End of program] [Select the UART Disconnection] [HT-100CT-2 Smartphone UART Exit] HITROL CO., LTD.

  • Page 18: Failure Check & Maintenance

    ■ If there is explosive gas atmosphere, do not open the cover. ■ Disassemble work shall be done with the power off. ■ Make sure than any O-ring or gasket is not damaged while opening or closing the cover of product. HITROL CO., LTD.

  • Page 19: Precautions For Transportation & Assembly

    - Make sure to separate the amplifier and main unit from housing before disposing the products. Also, the amplifier shall be detached and discard the metal and non-metallic materials. No part (ex. Mercury switch) has influence on the environment, so no special attention is required. HITROL CO., LTD.

  • Page 20: Marking

    You can request A/S at our website or by contacting our headquarters. Headquarters ․ Factory ․ Laboratory Contact Number ■ Address: HITROL CO., LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea TEL: 031-950-9700 (Headquarters & A/S) FAX: 031-950-9796 ~ 9799 (Headquarters & A/S)
