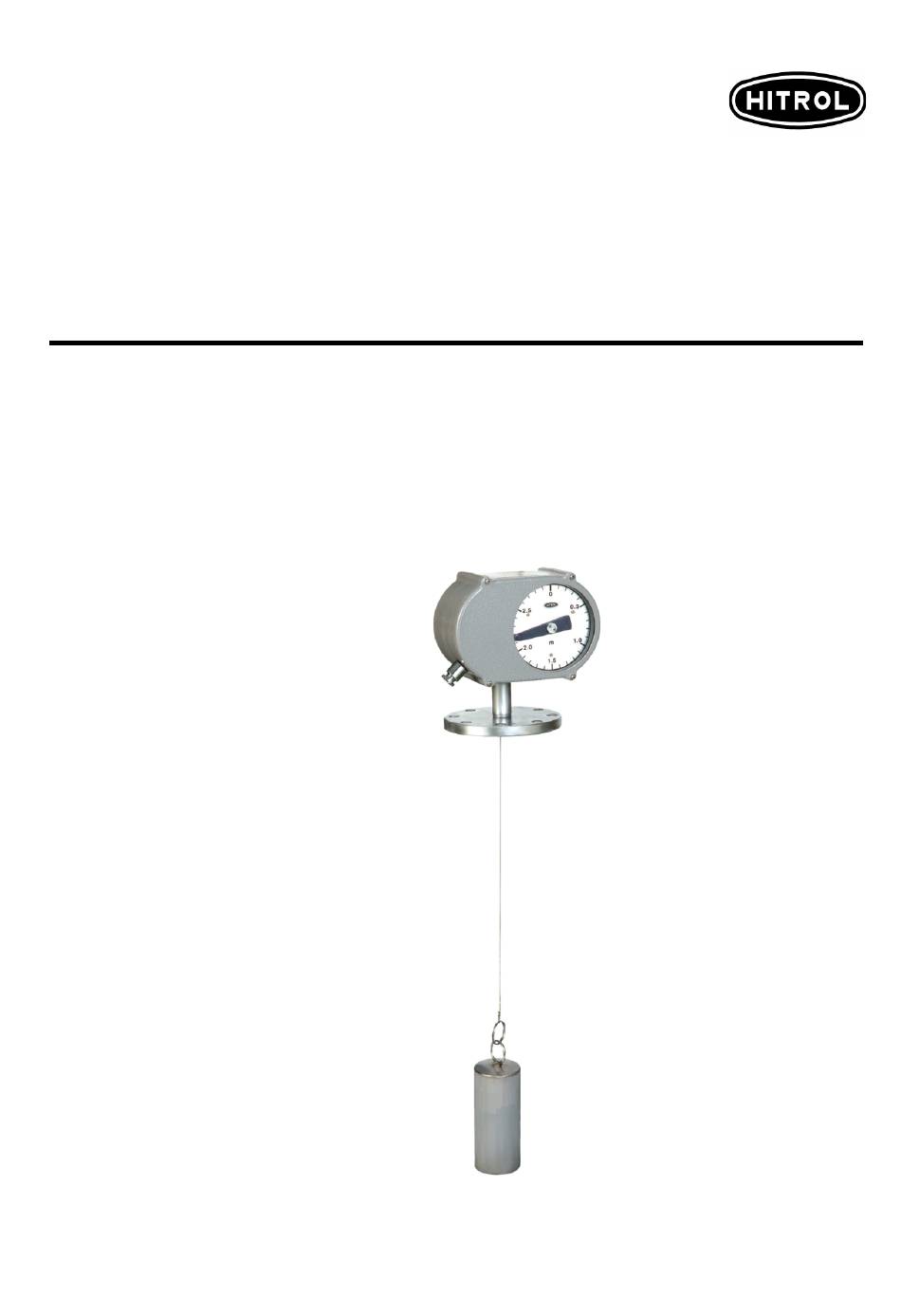

HT-100F Series
HITROL CO., LTD.
HEAD OFFICE. FACTORY. R&D INSTITUTE
HITROL CO., LTD., 141, Palhakgol-gil, Jori-eup,
Paju-si, Gyeonggi-do, Korea
TEL.: (00)-82-31-950-9700
FAX: (00)-82-31-943-5600
www.hitrol.com
INSTRUCTION MANUAL
FLOAT-TYPE LEVEL TRANSMITTER
HT-100F(I) Series
Doc. No.: HT100F_IM_Eng_Rev.2
Date Issued: 2019.10
HITROL CO., LTD.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HITROL HT-100F Series
Summary of Contents for HITROL HT-100F Series
- Page 1 HT-100F Series HITROL CO., LTD. HEAD OFFICE. FACTORY. R&D INSTITUTE HITROL CO., LTD., 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea TEL.: (00)-82-31-950-9700 FAX: (00)-82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL FLOAT-TYPE LEVEL TRANSMITTER HT-100F(I) Series Doc. No.: HT100F_IM_Eng_Rev.2 Date Issued: 2019.10 HITROL CO., LTD.
-
Page 2: Table Of Contents
HT-100F Series Table of Contents Cautions for Installation · · · · · · · · · · · · · · · · 10 Overview and Features · · · · · · · · · · · · · · · · · · · 3 Cautions for the Inserted External Wire ·... -
Page 3: Overview And Features
HT-100F Series Overview and The HT-100F Series is a float-type level transmitter for continuously measuring and Features the liquid level in a container with buoyancy. It is mainly used to measure liquid for purification, industrial water, sewage treatment plants, wastewater, and fuel tanks. -
Page 4: Specifications
HT-100F Series Specifications Model HT-100F HT-100F(I) Mounting Top, Flange Indicator None 1-point dial Ambient Temperature −20°C ~ +60°C Process Temperature Max. 80°C Process Pressure Range (m) Max. 7.5m Power Source DC 24V None (Std.) / DC 24V (Opt.) Display (Std.) /... -
Page 5: Float Application Table
HT-100F Series Float Application Table Float Size Range Spring Length Outer MEAS. Range Length Diameter 5 m / ~3.5 m 89.1 7.5 m / ~6 m 10 m / ~7.5 m 5 m / ~3.5 m 76.3 7.5 m / ~6 m 10 m / ~7.5 m... -
Page 6: Dimensions
HT-100F Series Dimensions <HT-100F> <HT-100FI> <HT-100FI Guide Type> Wiring and Cautions R/I Converter ■ + −: DC 24V (DC 4~20mA Loop) ■ T: Output Test Point ■ H.C.L: Wire to Connect the Sensor and R/I converter * Cable color: H – Red, C – White, L – Black ■... -
Page 7: Zero/Span Adjustment
HT-100F Series Zero/Span Adjustment Step 1 Step 2 Step 3 Step 4 Green LED is turned on Press and hold the button for 3s Press the button Press the button when the power is connected to finish zero/span setting with... -
Page 8: Maintenance
HT-100F Series Maintenance The HT-100F Series level transmitter requires inspection for the sensor, drive, and transmission sections. The sensor section has REED S/W; the drive section has the wire drum, spring drum, and spur gear; and the transmission section has the R/I converter. -
Page 9: Attachment And Cautions
HT-100F Series Attachment and Cautions If it is installed on the inlet, install a guide, If the liquid flows or slashes, or make it distanced from the inlet to use the protection pipe type. prevent malfunction. Install it on the concrete wall as shown above. -
Page 10: Cautions For Removal
HT-100F Series Removal ■ Check the level and presence of liquid in the tank before removing it. Cautions ■ Disconnect the power first. ■ Connect flanges with same dimensions. Cautions for ■ Make sure to insert washers between bolts and nuts to prevent loosening. -
Page 11: User Training
HT-100F Series User Understand the aforementioned, and never use it to measure any liquid that Training exceeds 80°C. In addition, make sure that the ambient temperature of the housing is maintained at −20°C ~ +60°C. Troubleshooting Action Output Current of 4mA or Less... -
Page 12: Warranty And Contact
You can request A/S at our website or by contacting our headquarters. Headquarters / Factory / Research Center Address: HITROL CO., LTD., 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea TEL.: 031-950-9700 (Headquarters and A/S) FAX: 031-943-5600 (Headquarters and A/S)
