Page 1: General Information

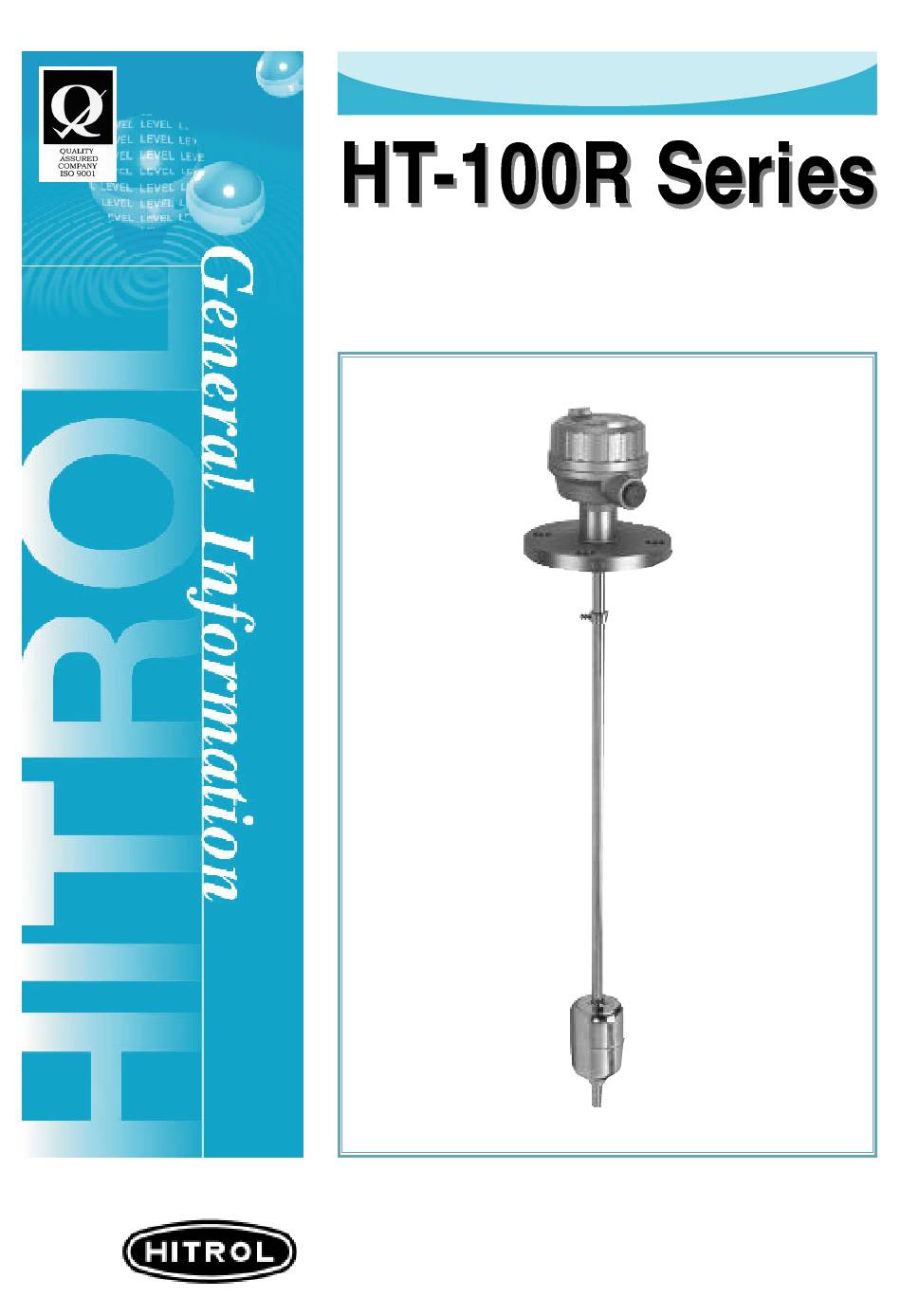

No. 2000-18E General Information Magnetic Float Type Liquid Level Tr a n s m i t t e r HITROL CO., LTD. - Page 2 HT-100R Series General Information H -100R Series is a level transmitter to measure for liquids as installed in tank. The installation and calibration are simple and can use to all kind of plants such as , oil, and chemical. Waste water and sewage treatment plants...
- Page 3 HT-100R Series General Information ✽ Please use to shield cable C o n n e c t i o n separated(2C X 1.25Ø). ✽ Separate to power line of plant. ✽ Please have to have ground line. D i m e n s i o n s...
- Page 4 Conduit Conn. 1 : PF 1/2" 2 : PF 3/4" HT - 100R - 呼 HITROL CO., LT D . HEAD OFFICE・F A C T O R Y ・ R & D INSTITUTE 62-182 BONGILCHEON-RI CHORI-EUP PAJU CITY KYUNGGI-DO KOREA...
