HT-100R Series
HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)-82-31-950-9700
FAX. : (00)-82-31-943-5600
www.hitrol.com

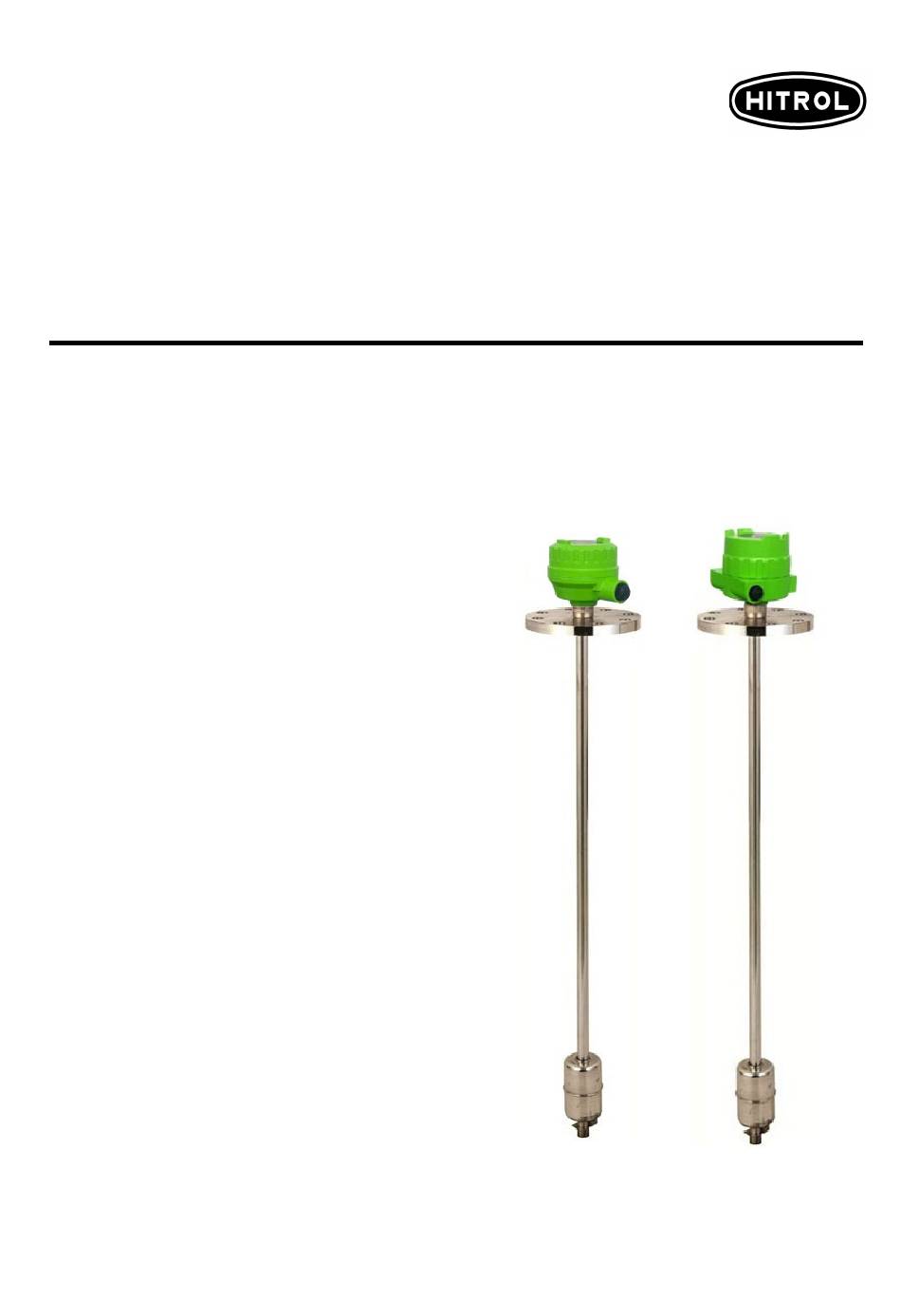

INSTRUCTION MANUAL
FLOAT TYPE LEVEL TRANSMITTER
HT-100R Series
Doc. no.: HT100R_IM_Eng_Rev.7.2
Issue date: 2024. 08
HITROL CO., LTD.
1
Advertisement
Table of Contents
Related Manuals for HITROL HT-100R Series
Summary of Contents for HITROL HT-100R Series
- Page 1 HT-100R Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)-82-31-950-9700 FAX. : (00)-82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL FLOAT TYPE LEVEL TRANSMITTER HT-100R Series Doc. no.: HT100R_IM_Eng_Rev.7.2 Issue date: 2024. 08 HITROL CO., LTD.
-
Page 2: Table Of Contents
APPENDIX L · · · · · · · · · M-100R User Manual Flap Type Level Gauge with HT-100R Series · · · · 11 Maintenance · · · · · · · · · · · · · · · · · · · · · · · · · · 12 Precautions for Removal ·... -
Page 3: Overview
HT-100R Series Overview HT-100R(-Ex) Series are FLOAT TYPE LEVEL TRANSMITTER that continuously measure water levels in containers using buoyancy. These transmitters can be easily installed and adjusted and can be used for chemicals because PVC and Teflon are used on their detecting elements. -
Page 4: Specifications
HT-100R Series Specifications STAINLESS STEEL Model HT-100RS HT-100RSH HT-100RS-Ex HT-100RSH-Ex Mounting Flange Process Temperature Max. 80℃ Max. 150℃ Max. 80℃ Max. 150℃ Process Pressure Up to 20kg/cm2(300#) Power Source DC +24V Output DC 4~20mA(2-wire) Weather-Proof (IP65) Ex-Proof (Ex d IIC T6) -
Page 5: Float Application
HT-100R Series Application Environment Float Temperature Pressure Acid Alkaline Solvent Liquid gas (℃) (㎏/㎠) SUS 316L -40 ~ +150 Up to 20 △ ○ ○ ◎ △ -10 ~ +60 ○ ○ △ TEFLON -20 ~ +150 0.5~3 ◎ ◎... -
Page 6: Section Distance
HT-100R Series Section Distance Section Distance Distance(mm) Section 2" 3" 4" 50 (SUS, TEFLON) 100 (PVC) 250~5000(*) 50 (SUS) 70 (TEFLON) 80 (PVC) A = Upper Dead Band; Minimum length which cannot be measured from the Upper Dead Band; Minimum length which cannot be measured from the bottom of flange B = Measuring Range;... -
Page 7: Float Specifications
HT-100R Series Float Application Table Dimensions (mm) Guide Product Size Material S.G Range Tube Ф49 Ф15.5 Ф12.7 316L 0.7~1.0 2" Ф50 Ф20 Ф15.8 0.6~0.9 Ф42 Ф15 Ф12.7 316L 0.8~1.3 Ф73 Ф23.5 Ф21.7 316L 1.0~1.5 3" Ф73 Ф23 Ф21.7 Titanium 0.6~0.9 HT-100RS Ф65... -
Page 8: Product Composition
HT-100R Series Product Composition ABS Housing Aluminum Housing Aluminum Housing Aluminum Housing Aluminum Housing Aluminum Housing MAX 80℃ MAX 80℃ MAX 150℃ MAX 80 MAX 80℃ MAX 150℃ Flange Flange Flange Flange Flange Flange 304, 316L 304, 316L 304, 316L... -
Page 9: Dimensions
HT-100R Series Dimensions <WEATHER-PROOF Version> HT-100RS HT-100RV HT-100RT HT-100RSH HT-100RTH HITROL CO., LTD. -
Page 10: Ex-Proof Version
HT-100R Series <Ex-PROOF Version> HT-100RV-Ex HT-100RT-Ex HT-100RS-Ex HT-100RSH-Ex HT-100RTH-Ex HITROL CO., LTD. -
Page 11: Flap Type Level Gauge With Ht-100R Series
HT-100R Series FLAP TYPE LEVEL GAUGE with HT-100R Series HT-100R HT-100R+HLG-100F HT-100RH+HLG-100F HT-100RH-Ex+HLG-100F HT-100R-Ex+HLG-100F HT-100R-Ex VENT PLUG : L1= A+30mm VENT VALVE /w PLUG : L1= A+100mm HITROL CO., LTD. -
Page 12: Maintenance
HT-100R Series Maintenance The major parts of the HT The major parts of the HT-100R(-Ex) Series level transmitters to be inspected are divided level transmitters to be inspected are divided into the sensor element and the transmission element into the sensor element and the transmission element. The sensor element consists of... -
Page 13: Precautions For Removal
HT-100R Series Precautions for - Check the level and presence of measurements in the tank before removing it. Removal - Wear gloves when removing it, to prevent a burn. - Disassemble work shall be done with the power off. - If there is explosive gas atmosphere, do not open the cover. -
Page 14: Installation
HT-100R Series Installation Below recommendation shall be considered when installation. The product may malfunction if the product has When there is flow or sloshing in the been installed at the inlet through which the measured object or there is agitator measure object flows in. -
Page 15: Safety And Environment
HT-100R Series Safety and ■ Precautions for Use Environment - Make sure to connect the product and vessel using required tools for sure. - Keep the lock key safe and make sure that it is locked. - Do not apply high impact to the product. -
Page 16: User Training
HT-100R Series User Training The above matters should be fully understood, and the temperature of fluids in the container where the product is used shall not exceed 80℃ in the case of general types and 150℃ in the case of high-temperature types. In addition, make sure that the ambient temperature of housing is kept at -20℃... -
Page 17: Output Current Holding Phenomenon
PTFE Float and Tube have a warranty period of one year after the product is shipped. ■ Headquarters ․ Factory ․ Laboratory Contact Number ADRESS: HITROL CO., LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea T E L : 031-950-9700 (Headquarters & A/S) F A X : 031-943-5600 (Headquarters & A/S) - Page 18 APPENDIX M HT-100R DISPLAY User Manual Float Type Level Transmitter Doc. no.: Rev0.3 Issue date: 2024.09.10...
- Page 19 1. HT-100R Display Module Configuration & Function Configuration Function ■ Function setting S Key ■ Save the setting ■ Mode change M Key ■ Cancellation ■ Span Set ▲ Key ■ Setting the value left & up ■ Zero Set ▼...
-
Page 20: Specifications
2. Specifications Items Specifications Model M-100RD (Compact), M-RIU (Local) Microprocessor 16Bit Microprocessor Current Loop Interface 2-Wire Loop Current Supply Voltage DC+17V ~ +40V @ Typ.+24V Output Current Accuracy 4.0mA ~ 20.0mA @ ±0.2% F.S Resolution ±10mm @ With Sensor ■ 3.8mA ~ 20.5mA @ Alarm 3.6mA, 21mA [NAMUR NE43] Output Current Range ■... - Page 21 3. Configuration of Setting Menu Content Description Remarks [00] Select Unit : mA / % : mA : % (※ Unit Setting for [02], [03]) [01] Select Level / Distance : Level : Distance Quick Menu Setting 0.0% ~ 95.0% or 4.000 mA ~ 19.200 mA Quick [02] Zero Setting...
- Page 22 4. Setting and Operating Setting and Operating Display Mode Display Mode Whenever Whenever button is pressed, Display Mode is switched button is pressed, Display Mode is switched sequentially. sequentially. ※ Rotation mode ( ) show each display mode automatically at interval of 1 second by default. ) show each display mode automatically at interval of 1 second by default.
- Page 23 □ How to select the Setting Menu Press Each Setting Menu can be switched by usage of arrow ( ) buttons. Press S button for 1 second to set of each function referring of below table. □ How to change the setting value Shift Digit Change Value “Flickering only one Digit”: It is available to shift to the other digit.
-
Page 24: Auto Setting
■ Definition of Height Criterion of Level: The direction in which the medium : The direction in which the medium is raised based on the bottom of the tank. is raised based on the bottom of the tank. Zero Height: The height from bottom of t t: The height from bottom of tank to center of float at zero position. - Page 25 ※ Caution: If wrong setting, Yellow LED will be flickering and 3.6mA current will be out. ■ Auto Setting (Applied to HT-100R Series Only.) In case the M-100R to be replaced without separation of the sensor from the tank, set it as below.
- Page 26 ■ Offset Adjust as below when fine adjustment is required or there is an error of the measuring device. Step. 1 Step. 2 Step. 3 ▷Span◁ 또는 Hold down button and adjust a current output finely using button. ▷Zero◁ 또는 Press buttons at once for Press...
