HITROL HT-100R Series Instruction Manual

HITROL HT-100R Series Instruction Manual

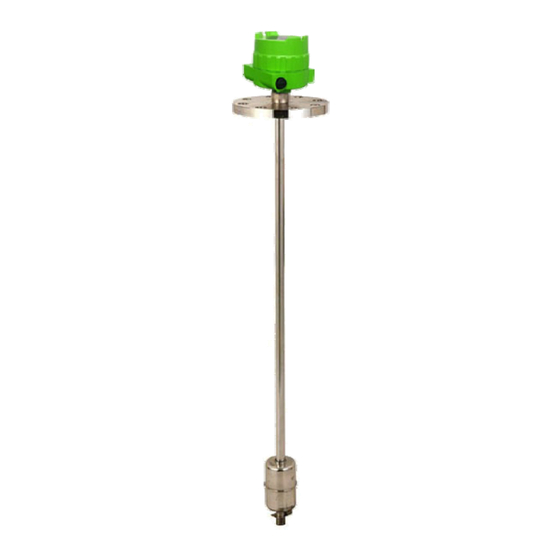

Float type level transmitter
Hide thumbs Also See for HT-100R Series:

Advertisement

HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO.,LTD 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)-82-31-950-9700
FAX. : (00)-82-31-943-5600
www.hitrol.com
INSTRUCTION MANUAL
FLOAT TYPE LEVEL TRANSMITTER
Doc. no. : HT-100R(EX) M_Kor_2015, Rev. 1
Issued date : 2015. 06
HITROL CO.,LTD.
HT-100R Series
HT-100R Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-100R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HITROL HT-100R Series

  • Page 1 HT-100R Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO.,LTD 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)-82-31-950-9700 FAX. : (00)-82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL FLOAT TYPE LEVEL TRANSMITTER HT-100R Series Doc. no. : HT-100R(EX) M_Kor_2015, Rev. 1 Issued date : 2015. 06...
  • Page 2: Table Of Contents

    Ex-PROOF Version· · · · · · · · · · · · · · · · · · · · · · · · · ·10 FLAP TYPE LEVEL GAUGE with HT-100R Series· · · ·11 Maintenance method· · · · · · · · · · · · · · · · · · · · · 12 Precautions for separation·...
  • Page 3: Overview Of The Product

    HT-100R Series Overview HT-100R(Ex) Series are FLOAT TYPE LEVEL TRANSMITTERs that continuously measure water levels in containers using buoyancy. These transmitters can be easily installed and adjusted and can be used for chemicals because PVC and PTFE are used on their detecting elements.
  • Page 4: Specifications

    HT-100R Series Specifications STAINLESS STEEL Model HT-100RS HT-100RSH HT-100RS-Ex HT-100RSH-Ex Mounting Flange Temperature Max. 80℃ Max. 150℃ Max. 80℃ Max. 150℃ Process Pressure Up to 20kg/cm2(300#) Power Source DC 24V Output DC 4~20mA(2~wire) Enclosure Weather-Proof Ex-Proof(Ex d IIC T6) Ex-Proof(Ex d IIC T4)
  • Page 5: Specifications Applied To The Float

    HT-100R Series Specifications Environment applied to the Float Temperature Pressure Acid Alkaline Solvent Liquid gas FLOAT SUS 304 -20℃~150℃ Up to 20kg/㎠ △ ◎ ◎ △ SUS 316 -20℃~150℃ Up to 20kg/㎠ △ ○ ◎ ◎ △ -10℃~60℃ 0.5kg/㎠ ○...
  • Page 6: Zero/Span Adjusting Method

    HT-100R Series ■ When connecting the power, be attentive not to be confused with the + − polarities. ■ The supplied power should be within the range of 18–30 V. ■ The connection work should not be performed when power is supplied.
  • Page 7 HT-100R Series FLOAT application table Size (mm) Product name SIZE GUIDE TUBE Material SG range Ф49 Ф15.5 Ф12.7 316L 0.8–1.2 Foam 2" Ф50 Ф20 Ф15.8 0.6–0.8 316L Ф45 Ф15 Ф12.7 0.8–1.2 316L Ф73 Ф23.5 Ф21.7 0.8–1.2 Titanium 3" Ф73 Ф23 Ф21.7...
  • Page 8: Product Composition

    HT-100R Series Product composition Aluminum Housing Aluminum Housing Aluminum Housing Aluminum Housing Polycarbonate Housing MAX 80℃ MAX 80℃ MAX 150℃ MAX 80℃ MAX 150℃ Flange Flange Flange Flange 304, 316L 304, 316L 304, 316L, W/PTFE Stopper Stopper Stopper Stopper 316L...
  • Page 9: Weather-Proof Version

    HT-100R Series Product Size <WEATHER-PROOF Version> HT-100RS HT-100RV HT-100RT HT-100RSH HT-100RTH HITROL CO.,LTD.
  • Page 10: Ex-Proof Version

    HT-100R Series <Ex-PROOF Version> HT-100RV-Ex HT-100RT-Ex HT-100RS-Ex HT-100RSH-EX HT-100RTH-EX HITROL CO.,LTD.
  • Page 11: Flap Type Level Gauge With Ht-100R Series

    HT-100R Series FLAP TYPE LEVEL GAUGE with HT-100R Series HT-100R HT-100R+HLG-100F HT-100RH+HLG-100F HT-100R-Ex HT-100R-Ex+HLG-100F HT-100RH-Ex+HLG-100F HITROL CO.,LTD.
  • Page 12: Maintenance Method

    HT-100R Series Maintenance ■ Product inspection method The major parts of the HT-100R (Ex) Series level transmitters to be inspected are divided into the sensor element and the transmission element. The sensor element consists of REED S/W, resistors, and the FLOAT, and the transmission element is the R/I CONVERTOR.
  • Page 13: Precautions For Installation

    HT-100R Series Precautions for ■ When flanges or screws are used for fastening, the size should be the same. installation ■ The user should place a washer between each bolt and nut to prevent loosening. ■ When fastening flanges to each other, gaskets should be used.
  • Page 14: Attachment And Precautions For Attachment

    HT-100R Series ■ When attaching the product, the following matters should be considered. Attachment and precautions for attachment When the measure object flows or slops The product may malfunction if the product has been installed at the protecting tube type products should be inlet through which the measure object flows in.
  • Page 15: Product Marking

    HT-100R Series ■ Matters that require attention when the product is used Matters When fastening the product to the container, make sure that the product is maximally regarding safety pressed to the container by using tools. and environment - The locking device should not be lost while the product is being used and the product should be locked without failure.
  • Page 16: Matters Regarding User Education

    HT-100R Series Matters regarding The above matters should be fully understood, and the temperature of fluids in the container user education where the product is used shall not exceed 80℃ in the case of general types and 150℃ in the case of high-temperature types. In addition, temperatures around the housing should be within the range of −20–60℃.
  • Page 17: When The Output Current Is Held At Around 12Ma

    HT-100R Series When the output current is held at around 12mA Cause Matters to be checked The COMMON cable of the sensor has been opened. Reconnect The HIGH and LOW cables of the sensor have been Reconnect opened. The sensor FLOAT broke away.
  • Page 18: Warranty And Contact Number

    A/S may be requested through our home page or head office. Head office • Factory • Laboratory contact number Address : HITROL CO.,LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea TEL : 031-950-9700 (head office and A/S) FAX : 031-943-5600 (head office and A/S) Doc.
