Installation Instructions
INSTALLING THE REFRIGERATOR (Cont.)

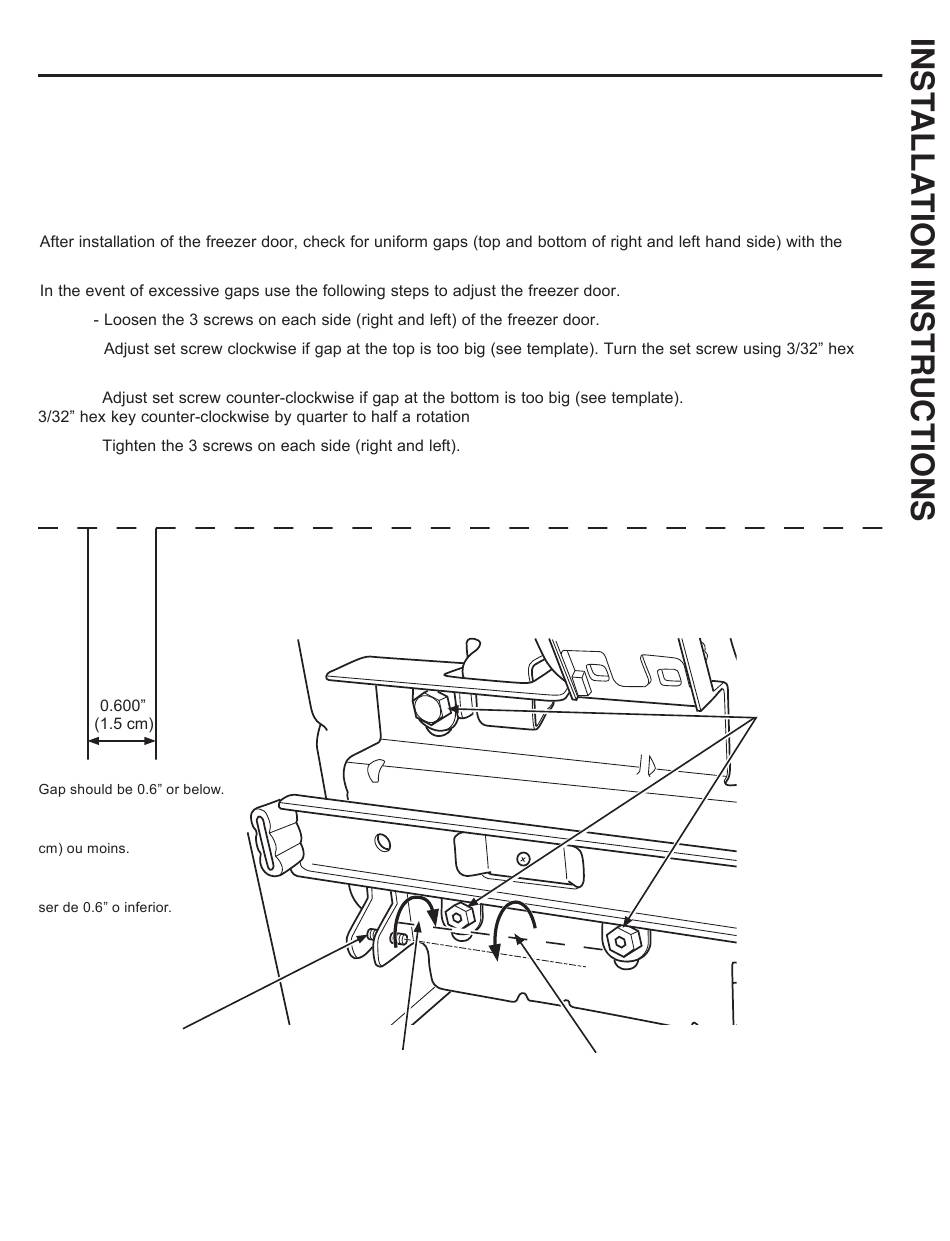

Instructions for adjusting freezer door gaps:
IMPORTANT!
The 6 mounting screws (3 on each side) are NOT interchangeable with the center or top hinge screws.
Drawer screws have flat washer heads, and other screws have lines/ribs on washer heads.
template provided.
Step 1
Step 2 -
key clockwise by quarter to half a rotation
Step 3 -
Step 4 -
Step 5 - Re-check the gaps using the template and repeat steps 1 to 4 if required and complete with step 5.
Fold here for using template
Template for checking gaps.
Gabarit pour vérifier les écarts.
L'écart doit être de 0,6 po (1,5
Plantilla para el control de
espacios. El espacio debería
Set Screw
Vis d'ajustement
Tornillo del Set
