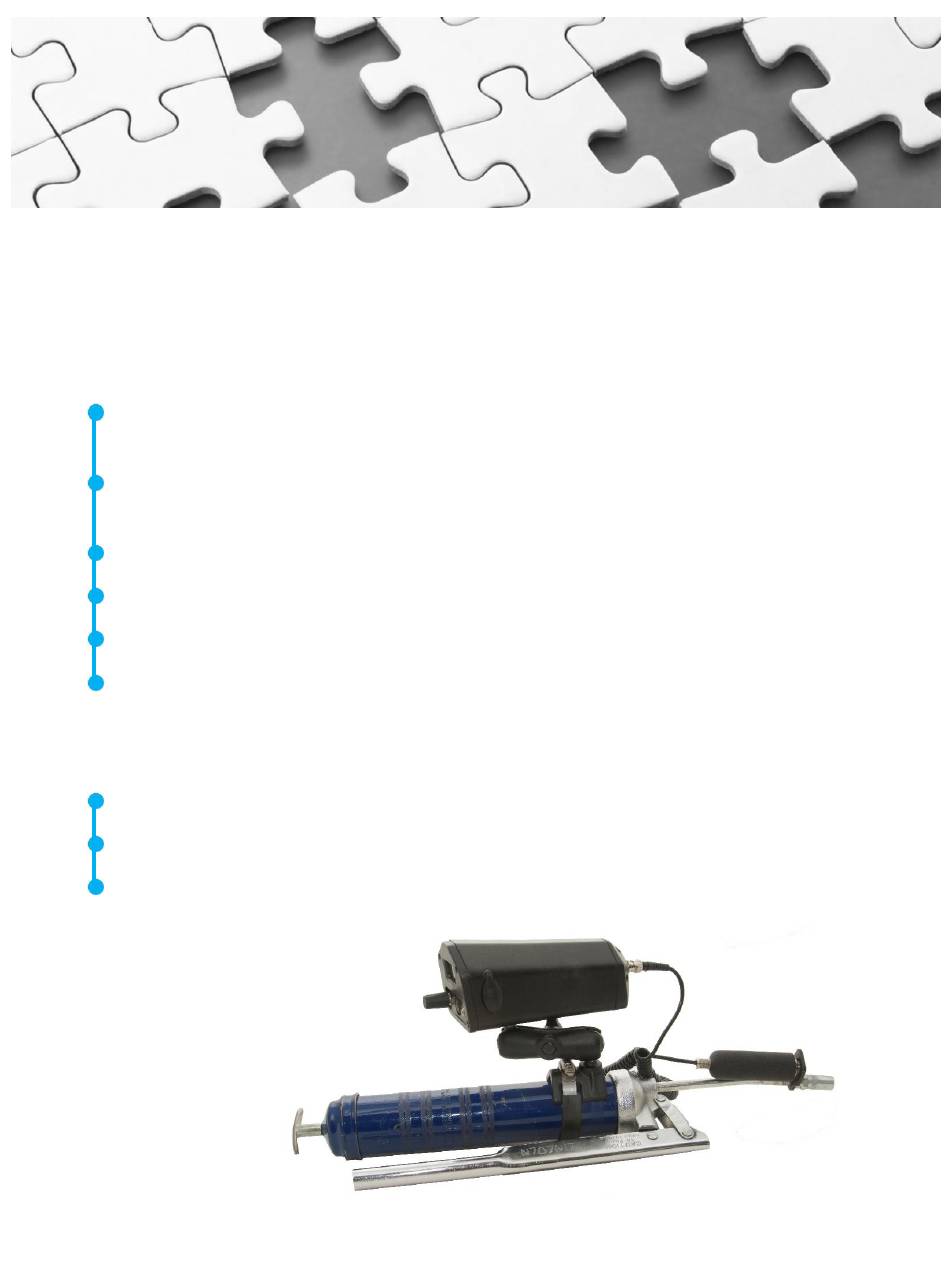

MOUNTING AND SETUP

MOUNTING THE 401 DIGITAL GREASE CADDY TO GREASE GUN
Screw Mount Ball into threaded fitting on the bottom of the Digital Grease Caddy housing
as shown.
Place Mount on Grease gun so that the Grease Gun Mount Foot (15) is resting on the
grease gun.
Place Grease Gun Ring with foam strip around the Grease Gun and over the Mount foot.
Tighten the Grease Gun Ring until the mount is firmly in place.
Attach the Digital Grease Caddy by placing the Gun Mount Ball in the open clamp end.
Tighten the clamp knob.

SETUP

Attach the 401 Digital Grease Caddy mount to the grease gun as described above.
Attach the Magnetic Mount transducer cable to BNC connector.
Plug in the Headphones to the Headphone jack.

COMPLETED ASSEMBLY
