LutronR
PowPak Fixture Controls
®
The PowPak wireless fixture control is a radio-
®
frequency (RF) device that controls either the LutronR
EcoSystemR or 0–10 V- electronic fluorescent ballasts
and LED drivers (depending on model). This is based
on RF input from PicoR wireless controls, Radio Powr
SavrT wireless sensors, or wired inputs from the
PowPak fixture sensor. The control module mounts to
®
a fixture or a U.S.-style junction box. Communication
with RF input devices is accomplished using LutronR
Clear ConnectR RF Technology. See the Applications
and Selecting the Right Control section for more
details on selecting the appropriate controls for your
application.
The PowPak fixture sensor (optional) mounts to the
®
ceiling or to a fixture and measures light in the space
(daylighting) while detecting people moving within an
area to determine passive infrared occupancy. The
sensor controls the lights to balance light level in the
space, combining convenience, exceptional energy
savings, and ease of installation. The sensor contains
two wires which connect to the PowPak
fixture control.
Models Available
Model Number Description
FC-SENSOR PowPak
FC-VSENSOR PowPak
FCJ-010
PowPak
FCJ-ECO PowPak
* Lights do not turn on automatically with a vacancy sensor. A Pico
S p e c i f i c at i o n S u b m i t ta l
®
Job Name:
*
Job Number:
FC-SENSOR, FC-VSENSOR, FCJ-010, FCJ-ECO
wireless
®
fixture sensor (occupancy)
®
fixture sensor (vacancy)*
®
wireless fixture control for 0-10 V- drivers and ballasts
®
wireless fixture control for EcoSystem
®
Model Numbers:

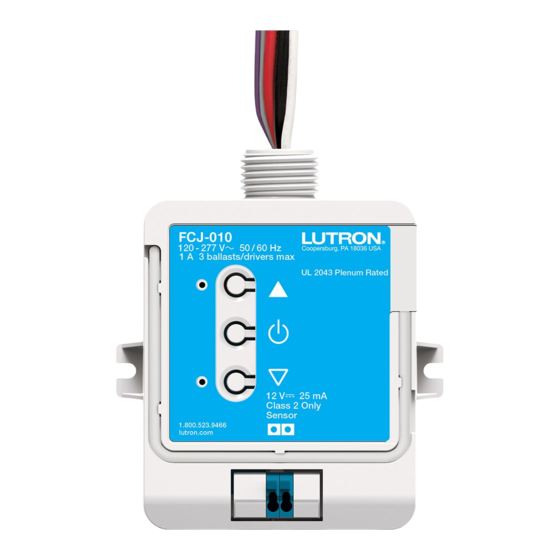

PowPak Wireless Fixture Control
®
drivers and ballasts
®
wireless control is needed to turn on the lights.
®
PowPak Fixture Controls
®
369866c 1 09.10.15
