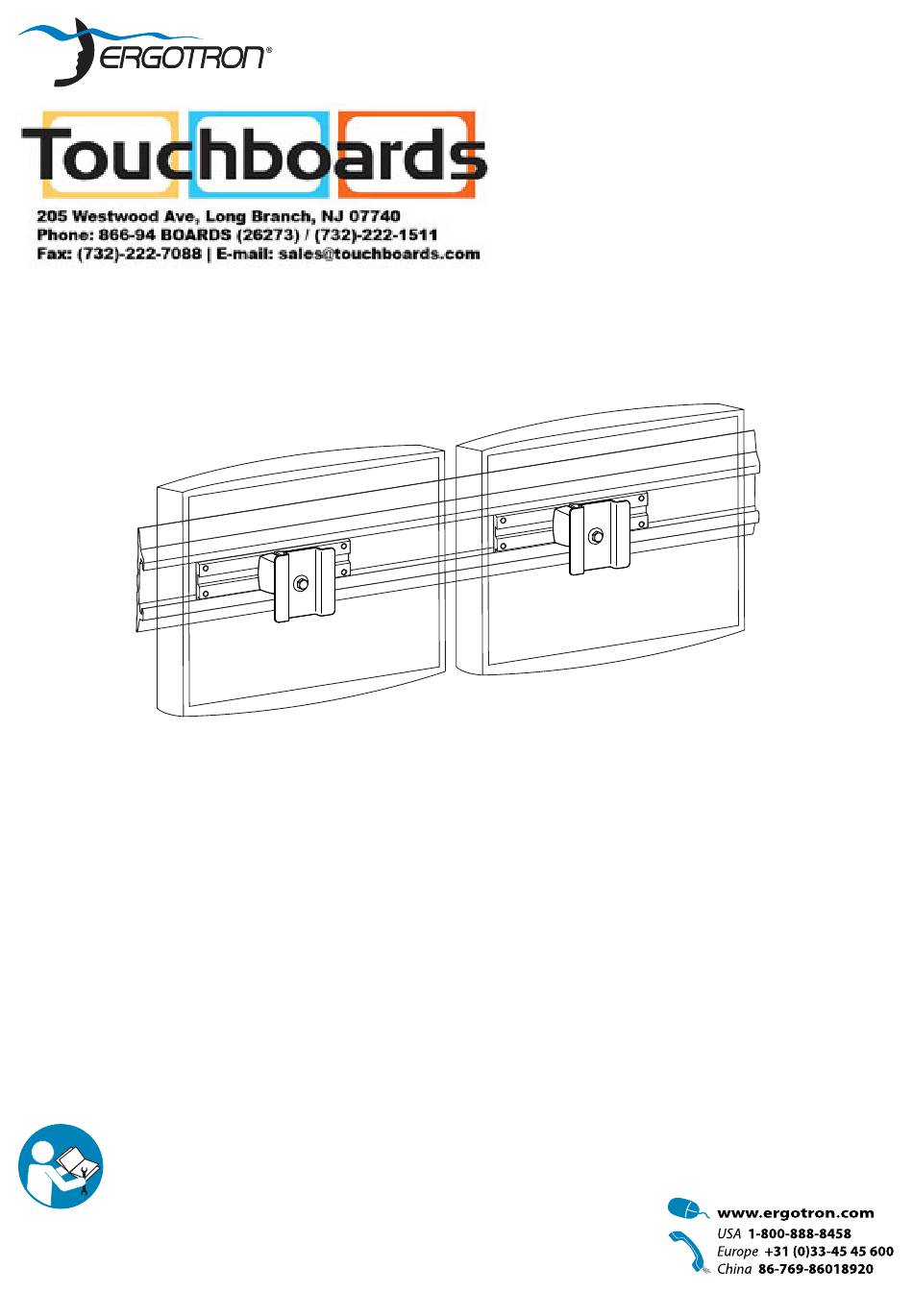

User's Guide
Neo-Flex Dual Display
Wall Mount
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-61-113-G-00 rev.A • 05/14
1 of 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Neo-Flex 28-514-800
Summary of Contents for Ergotron Neo-Flex 28-514-800
- Page 1 User's Guide Neo-Flex Dual Display Wall Mount For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano Användarhandbok - svenska...
- Page 2 ST6.3 x 50 mm ST6.3 x 50 mm 1/4-20 x 1/2" 1/8" set screw #8-32 x 1/4" M4 x 10mm 8-32 x 5/16" M4 x 10mm 75-100mm 3/32" 1/4-20 x 2" M6 x 70mm See Wall Mounting Options for additional tools needed for your type of wall installation. 1/2"...
-
Page 3: Wall Mounting Options
1“ 8“ 0.85“ Wall Mounting Options (25mm) (203mm) 8“ (22mm) 8“ (203mm) 5“ (203mm) 1“ (127mm) (25mm) 2“ (51mm) WARNING: 0.5“ (13mm) Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage. - Page 4 Attach to Wall Wood Studs ≥ 25 gauge steel Stud Finder Wood Ø 3/16" (5 mm) ST6.3 x 50 mm Studs ≥ 25 gauge steel ST6.3 x 50 mm NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time.
-
Page 5: Hollow Wall
≥ 5/8” Attach to Wall Hollow Wall Sheetrock Ø 1/2" (13 mm) 1. Push anchor plate into hole. 2. Pull loop back so plate opens fl at against inside surface of wall. 3. Push collar into hole. 4. Snap off loop. 1/4-20 x 2"... - Page 6 Attach to Wall Concrete Ø 3/8" (10 mm) 3-1/8" (80 mm) WARNING: Mounting holes must be at least 3-1/8” (80mm) deep and must be located within solid con- crete, not mortar or covering material. If you drill into an area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid concrete! WARNING: Anchors that are not fully set in solid concrete will not...
- Page 7 Attach Pivots to Brackets 3/32" 1/4-20 x 1/2" set screw 8-32 x 5/16" 1/2" 1/2" 1/2" 1/2" Attach Displays 75 x 75mm 100 x 100mm 3/32" #8-32 x 1/4" M4 x 10 mm M4 x 10 mm 888-61-113-G-00 rev.A • 05/14 7 of 9...
-
Page 8: Range Of Motion
Attach Displays to Wall Bracket 1/8" Range of Motion This product is designed to adjust quickly and easily according to your needs – refer to following steps for adjustment. Tilt – Forward and Backward Adjust Tilt – Forward and Backward If it does not stay in place or movement is stiff , tension needs adjustment. - Page 9 Attach Pivot Covers Attach Cable Management For local customer care phone numbers visit: http://contact.ergotron.com 888-61-113-G-00 rev.A • 05/14 9 of 9...
