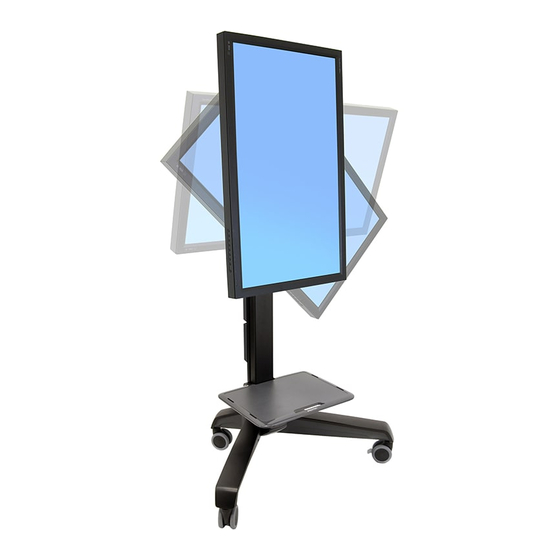

Mobile media center, uhd with 90˚ portrait/landscape rotation
Hide thumbs Also See for Neo-Flex Mobile MediaCenter VHD:

Advertisement

Quick Links

Stored Energy Hazard: The lift mechanism in the tower is under tension and will move up
rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove
equipment or make adjustments to lift tension unless the front assembly has been moved to the
highest position on the tower! Failure to follow this instruction may result in serious personal
injury and/or equipment damage!
Riesgo de energía almacenada: El mecanismo de elevación de la torre está bajo tensión y se
moverá rápidamente hacia arriba por sí solo si se retira el equipamiento que hay conectado
al mismo. Es por ello que NO deberá quitar equipamiento ni hacer ajustes en la tensión de
elevación a menos que la estructura delantera se haya movido antes hacia la posición más alta de
la torre. No seguir estas instrucciones podría provocar daños personales y/o materiales graves.
Danger : Le mécanisme d'élévation dans la tour est sous tension et se lève rapidement, tout
seul, dès que le matériel est retiré. Pour cette raison, NE PAS retirer votre matériel ou faire des
ajustemensts à la tension d'élévation à moins que la partie avant n'ait été mise à la position la
plus élevée de la tour ! Risque de blessure corporelle ou d'endommagement matériel en cas de
non respect de cette instruction.
888-24-064-M-02 rev. J • 02/11
WARNING
ADVERTENCIA
AVERTISSEMENT

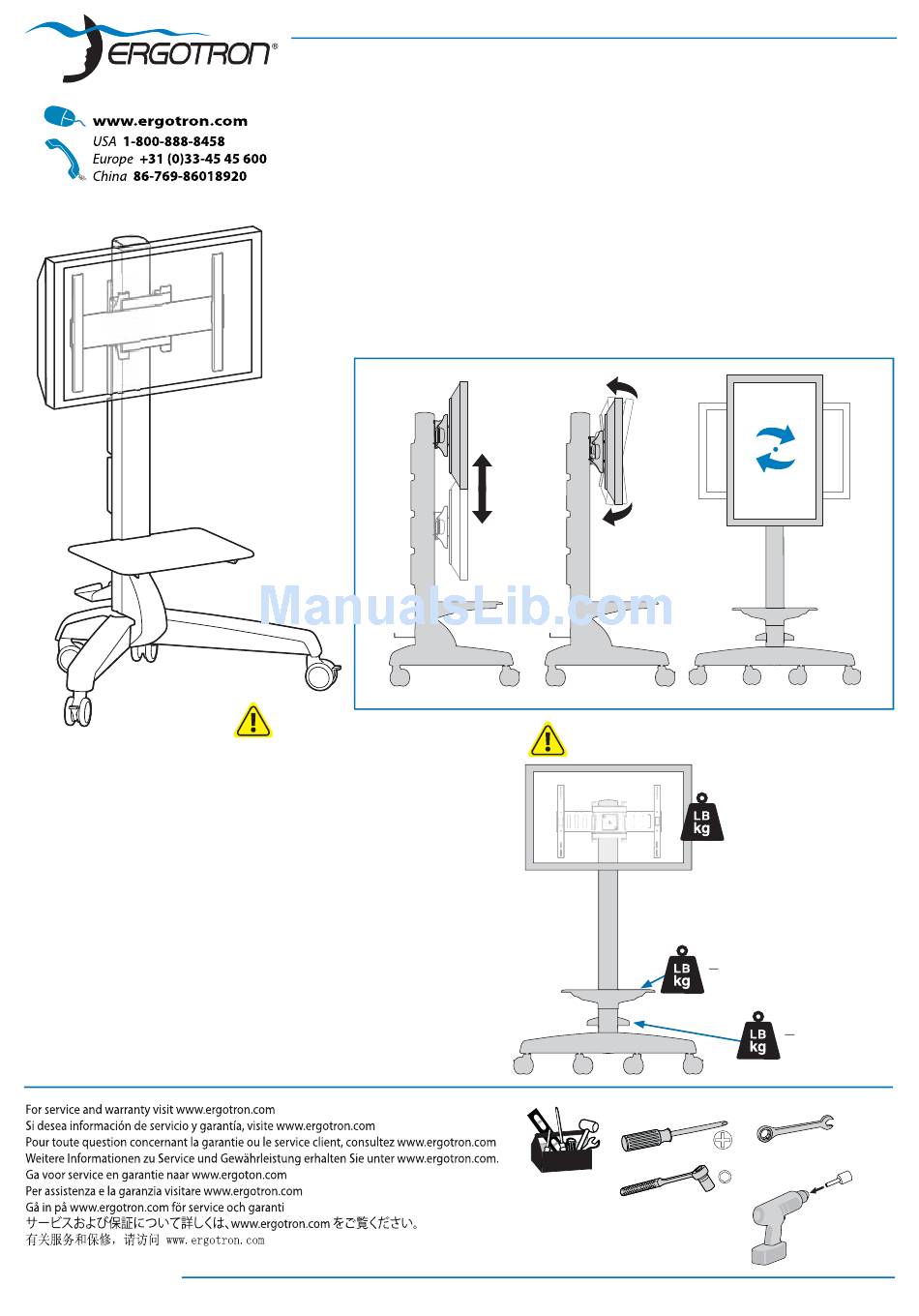

Neo-Flex Mobile Media Center, UHD
with 90˚ Portrait/Landscape rotation
20"
(510 mm)
User's Guide
Guía del usuario
Manuel de l'utilisateur
-15˚
90˚
+5˚
UHD: 90 - 120 lbs
(41 - 54 kg)
<30 lbs
(15 kg)
<5 lbs
(2.2 kg)
13mm
15mm
14mm
1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Neo-Flex Mobile MediaCenter VHD and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergotron Neo-Flex Mobile MediaCenter VHD

  • Page 1 WARNING Stored Energy Hazard: The lift mechanism in the tower is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment or make adjustments to lift tension unless the front assembly has been moved to the highest position on the tower! Failure to follow this instruction may result in serious personal injury and/or equipment damage! ADVERTENCIA...
  • Page 2 5.1(ID) x 10(OD) x 6mm 8.1(ID) x 16(OD) x 6mm 5.1(ID) x 10(OD) x 18mm 8.1(ID) x 16(OD) x 24mm 5.3(ID) x 16(OD) x 1.0mm 6.3(ID) x 14(OD) x 1.0mm 2 of 12 M4x20mm M4x40mm M5x20mm M5x40mm Leg Mounting Hardware M10 x 60mm Leg Cover Mounting Screws M3.5 x 6mm...
  • Page 3 Shipping Box Caja de embalaje Boîte d'expédition Leg Cover Mounting Screws M3.5 x 6mm CAUTION: DO NOT overtighten fasteners. Overtightening may cause damage to your equipment. Cuidado:: No sobreapriete los tornilllos, pues podría causar un daño al equipo. Attention: ne forcez pas le serrage de la vis, cela pourrait endommager l’écran et/ou les attaches. 888-24-064-M-02 rev.
  • Page 4 Shelf Mounting Hardware M3 x 37mm Shelf Mounting Hardware M3 x 37mm 888-24-064-M-02 rev. J • 02/11 4 of 12...
  • Page 5 TM Mounting Hardware M6x8mm 200 mm 600 mm 500 mm 400 mm 300 mm 200 mm 888-24-064-M-02 rev. J • 02/11 300 mm 400 mm TM Mounting Hardware M8 x 14mm 13mm 500 mm 600 mm 400mm Extension Hardware M5 x 16mm 5 of 12...
  • Page 6 FIND APPROPRIATE FASTENERS FOR YOUR DISPLAY: BUSQUE ABRAZADERAS APROPIADAS PARA LA PANTALLA: TROUVEZ LES FIXATIONS APPROPRIÉES À VOTRE ÉCRAN : Large Display Cart Hardware M6x20mm M6x45mm M8x25mm M8x50mm Ø Screw Diameter Diámetro de tornillo Diamètre de vis Screw Length Longitud de tornillo Longueur de vis IMPORTANT: To ensure screws have the minimum thread engagement in the display, tighten screws with at least six, full, 360°...
  • Page 7 200 mm Use fastener chosen from Step 6. Utilice la abrazadera elegida en el paso 6. Utilisez la fi xation choisie au cours de l’étape 6. Tighten screws with at least six, full, 360° revo- lutions*, but do not over tighten; over tightening may cause damage to display and/or brackets.
  • Page 8 It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. Adjustments should move smoothly and easily through the full range of motion and stay where you set it.
  • Page 9 TM Mounting Hardware 90˚ 888-24-064-M-02 rev. J • 02/11 9 of 12...
  • Page 10 Power Strip Hardware 10 of 12 M5x9mm Cable Management Support Hardware Cable Management Support Hardware 888-24-064-M-02 rev. J • 02/11 M5x8mm...
  • Page 11 38.4"-58.4" (974 - 1484 mm) 64" (1633 mm) 9.8" (249 mm) 5" (127 mm) 888-24-064-M-02 rev. J • 02/11 Cable Management Support Hardware NOTE: Leave enough slack in cables to allow full range of motion. No deje el cable excesivamente tenso Laisser du mou dans le câble 16.8"...
  • Page 12: Tipping Hazard

    DO NOT remove safety guards or labels designed to protect or inform of possible hazards. Only Ergotron-approved installers may service or otherwise modify cart/stand. Failure to heed this Warning may result in serious Personal Injury and Damage both to the cart/stand and equipment.
