870-03-005, rev. 05/30/03
Quartex Informatica
www.quartex.it

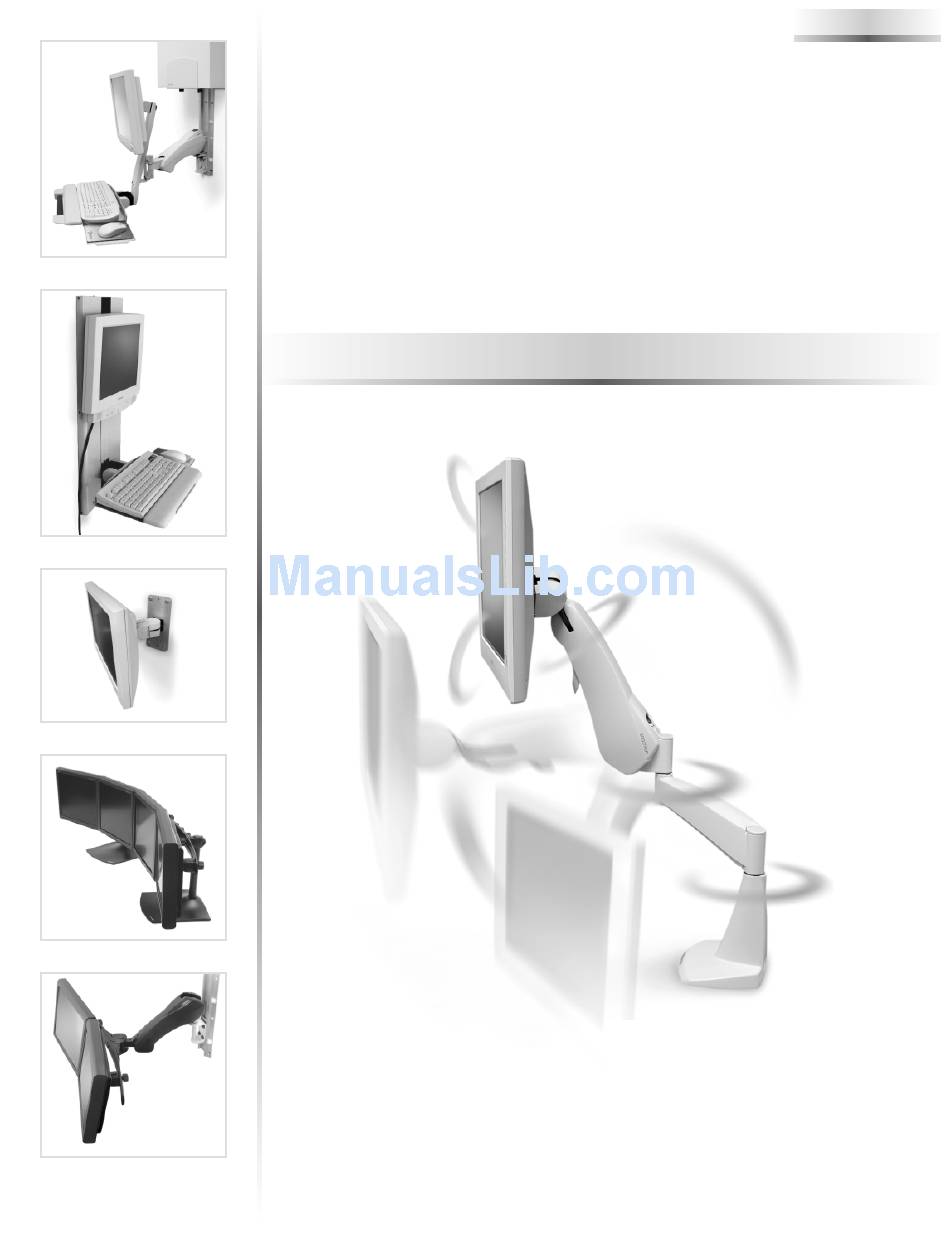

Flat Panel Monitor
Mounting Solutions
Maximize the effectiveness of Flat Panel Monitors
Quartex Informatica
Via Paolo Giovio n.5
20144 Milano
tel 02 4984998
fax 02 4985894
e-mail: ergotron@quartex.it
Show-Room
Via Paolo Giovio Angolo Via
Andrea Verga
20144 Milano
Orderguide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 870-03-005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron 870-03-005

Summary of Contents for Ergotron 870-03-005

  • Page 1 Quartex Informatica Via Paolo Giovio n.5 20144 Milano tel 02 4984998 fax 02 4985894 e-mail: ergotron@quartex.it 870-03-005, rev. 05/30/03 Quartex Informatica www.quartex.it ® Flat Panel Monitor Mounting Solutions Maximize the effectiveness of Flat Panel Monitors Orderguide Show-Room Via Paolo Giovio Angolo Via...

  • Page 3: Table Of Contents

    Orderguide Flat Panel Monitor ARMS Table of Contents Introduction ........How to Select ARMS .

  • Page 4: Introduction

    • ARMS Orderguide • rev. 05/30/03 lat panel monitors provide space-saving convenience. Ergotron’s Adjustable Rotating Mounting Solutions (ARMS) deliver this technology where you need it. Patented ARMS products instantly lift, swing, tilt and rotate for optimum ergonomic positioning without the need for knobs or adjustment levers.

  • Page 5: Flat Panel Arms Product Overview

    Wall Tracks Wall Plates Slatwall Components Command Posts Pole Mounts Desk Mounts Furniture Mounts Direct Mounting 870-03-005 Accessory Options Keyboard/Mouse Trays, Laptop Trays Wrist Rests & Mouse Pads Extenders Monitor Interface Accessories CPU Holders & Storage Components Ergotron Carts Mobile...

  • Page 6: Arms Product Selection

    • Double Pivot w/ P/L: 180˚ up/down tilt, 360˚ P/L, & 180˚ left/right tilt 180˚ Side View Up/down tilt Keyboard/Laptop Arms 180° Combo Arms Side View Keyboard Tray Movement 870-03-005 180˚ Rotate Arm Top View 90˚ 360˚ 360˚ Front View Portrait/landscape 22"...
  • Page 7 Accessory Options Page # Extenders Keyboard/Mouse Trays, Laptop Trays & Accessories Monitor Interface Accessories CPU Holders Storage Components Peripheral Table • ARMS Orderguide 870-03-005 rev. 05/30/03 Shipping Weight 11 lbs (5 kg) 13 lbs (5.9 kg) 12 lbs (5.5 kg) 12 lbs (5.5 kg)
  • Page 8 Sales Representative for more information. (See page 47 for details.) Mounting Options & Accessories for 400 Horizontal/Suspend Mount Arms Surface Attachment Options Surface Clamps Direct Mounting Furniture Mounts 870-03-005 Weight Capacity 28 lbs (12.7 kg) 25 lbs (11.3 kg) 23 lbs (10.4 kg)
  • Page 9 Note the VESA FDMI monitor interface where the monitor attaches to the arm. Shown with optional Surface Clamp. A 400 Series Arm is teamed with an Extender to enhance placement capability. 400 Series Arm suspended from a ceiling. • ARMS Orderguide 870-03-005 rev. 05/30/03 •...

  • Page 10: 300 Series

    • Telescopic motion 360˚ 9" Extension 360˚ 180˚ Top View Monitor Pivot 180˚ Side View Up/down tilt Keyboard/Laptop Adjustment rev. 05/30/03 870-03-005 20" (508 mm) Arm folded back 23" (584 mm) 360˚ 180˚ Front View Top View Portrait/landscape Left/right tilt 16"...
  • Page 11 * Order Keyboard/Mouse Tray or Laptop Tray separately (p.44). Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact your Sales Representative for more information. (See page 47 for details.) 870-03-005 Weight Shipping Capacity...
  • Page 12 Surface Attachment Options Direct Mounting, Wall Plates Wall Tracks Command Posts Pole Mounts Slatwall Components Mobile WorkStands rev. 05/30/03 870-03-005 Weight Capacity 23 lbs (10.4 kg) 7.5 lbs (3.4 kg) Notes Combine with other arms for telescopic motion** Combine with other arms for telescopic motion** Combine with other arms for telescopic motion** Attach to…...
  • Page 13 The top view of a cubicle where a 300 Series Arm with two 9" Extensions brings the monitor to point of use. A 300 Series Arm with one 9" Extension attached to Wall Mount Plate. Rear view of a 300 Series Arm. Note the cable routing. • ARMS Orderguide 870-03-005 rev. 05/30/03 •...

  • Page 14: 200 Series

    Bow Pivot • Up/down tilt controlled by adjustment lever: +25°/-10° • Portrait/landscape motion available with single-arm configurations only Side View Up/down tilt Keyboard/Laptop and Combo Pivots rev. 05/30/03 870-03-005 6" Vertical Slide Pivot 6" (152 mm) 360˚ Front View Top View...
  • Page 15 Go to page listed to get more information about the different brackets and clamps. Directly to vertical surfaces Wall Plates See page 38 Wall Track See page 39 870-03-005 Weight Capacity Shipping per Pivot Weight 25 lbs 4 lbs (11.3 kg) (1.8 kg)
  • Page 16 24 lbs (10.9 kg) 28-347-200 27 lbs (12.2 kg) 28-281-200 13 lbs (5.9 kg) 28-370-200 22 lbs (10 kg) 28-280-200 25 lbs (11.3 kg) rev. 05/30/03 870-03-005 Weight Capacity Shipping per Pivot Weight 25 lbs 14 lbs (11.3 kg) (6.3 kg) 25 lbs 14 lbs (11.3 kg)
  • Page 17 Combo Interface 45-123-180, grey 5" Extension 45-123-200, black w/ Crossbar Interface 45-125-180, grey 9" Extension 45-125-200, black w/ Crossbar Interface 870-03-005 Weight Capacity per Pivot 25 lbs (11.3 kg) 25 lbs (11.3 kg) 25 lbs (11.3 kg) 25 lbs (11.3 kg)

  • Page 18: Height Adjustment

    Wall Tracks Command Posts Pole Mounts Slatwall Components Mobile WorkStands rev. 05/30/03 870-03-005 Attaches to… 1-1/2" Round Pole (p.42) 1-1/2" Round Pole (p.42); use with Single Pivot (47-011-xxx), Keyboard/Laptop Pivot (47-009-xxx) or 6" Vertical Slide (60-321-009) 1-1/2" Round Pole (p.42); use w/ Vertical Bar (60-324-xxx) or Combo Bracket (60-374-xxx) 1-1/2"...
  • Page 19 A triple-monitor configuration attached to slatwall using a 1-1/2" Round Pole and Slatwall Pole Clamp. 200 Combo Arm and CPU Holder attached to Wall Track. Vertical Mount 200 Series 6" Vertical Slide Pivot. 200 Series Desk Mount configuration. • ARMS Orderguide 870-03-005 rev. 05/30/03 •...

  • Page 20: 100 Series

    Mounting Options & Accessories for 100 Series Surface Attachment Options Direct Mounting, Wall Plates Wall Tracks Command Posts Pole Mounts Slatwall Components Mobile WorkStands rev. 05/30/03 870-03-005 360˚ up to 180˚ Top View Side View Left/right tilt Up/down tilt Weight Capacity 28 lbs (12.7 kg)

  • Page 21: Fx Series

    Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact your Sales Representative for more information. (See page 47 for details.) Mounting Options & Accessories for FX Series Surface Attachment Options Direct Mounting 870-03-005 Weight Capacity 30 lbs (13.6 kg)

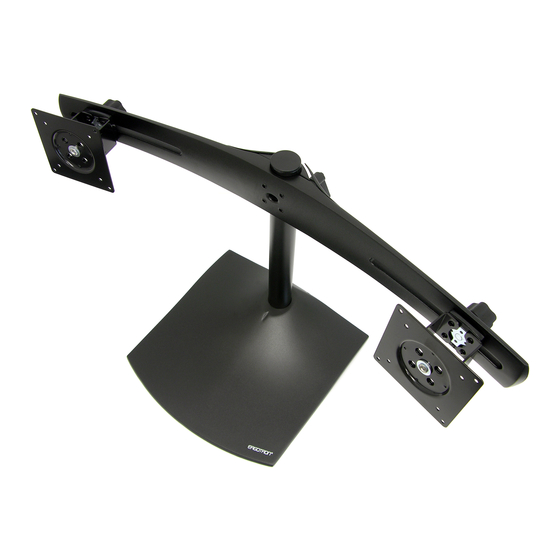

  • Page 22: Ds100 Series

    Left/right tilt Rear View Adjustment thumbscrew Motion range varies… • Sliding Pivot: left/right or up/down tilt • Sliding Pivot with P/L: left/right or up/down tilt; portrait/landscape rev. 05/30/03 870-03-005 Top View Left/right tilt Side View Front View Up/down tilt Portrait/landscape...
  • Page 23 Pyramidal (P) Quad Monitor includes: • 60-349-200, Desk Clamp Base • 20-161-200, 36" Pole • 60-410-200, 46" Crossbar • 47-046-085 (2), Sliding Pivots • 47-051-200, Clamping Double Pivot w/ P/L 870-03-005 Weight Capacity per Pivot 23 lbs (10.4 kg) 23 lbs (10.4 kg) 28 lbs (12.7 kg)
  • Page 24 Key for Recommended Configurations: (H) = horizontal; (V) = vertical; (P) = pyramidal; (S) = square. Mounting Options & Accessories for DS100 Series Surface Attachment Options Freestanding, Desk Clamp, Grommet Mount rev. 05/30/03 870-03-005 Attach to… No attachment necessary Worksurface edge ≤ 2-1/8" (54 mm) thick Worksurface through hole 3/8" to 3" (10 to 76 mm) wide, up to ≤...
  • Page 25 A horizontal quad-monitor configuration – two bases support four monitors across a level plane while creating a viewing parabola with Ergotron's Paraview Technology. Close-up view of the Sliding Pivot on the Paraview bow. With the turn of the knob, a monitor is easily moved to accommodate multiple, different-sized screens on the same stand.

  • Page 26: Ds400 Series

    Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact your Sales Representative for more information. (See page 47 for details.) Mounting Options & Accessories for DS400 Series Surface Attachment Options Freestanding rev. 05/30/03 870-03-005 90˚ Side View Vertical 360˚ Front View...

  • Page 27: Hd Series

    HD Dual-Monitor Arm Height adjustment HD Combo Arm Side View Side View Up/down tilt Height adjustment HD Laptop Arm Side View Height adjustment/tilt 870-03-005 15" (381 mm) Side View Top View Height adjustment Side-to-side Top View Top View Left/right tilt...
  • Page 28 48 lbs (21.8 kg) 53 lbs (24 kg) 2-1/2" (64 mm) Attention: For additional weight capacity information, see page 53. rev. 05/30/03 870-03-005 Weight Capacity Shipping per Pivot Weight 20–xx lbs (9.1–xx kg) 9 lbs for “xx”, see chart below (4.1 kg)
  • Page 29 Desk Clamp, Grommet Mount Direct Mount (Vertical Mount, above), Wall Plates Wall Tracks Command Posts 870-03-005 Attaches to… Horizontal surface at edge ≤ 3" (76 mm) thick Horizontal surface through hole 3/8" to 3" (10 to 76 mm) wide, up to 4" (102 mm) thick Vertical surface: wall, Command Post, Wall Track, etc.

  • Page 30: Vl Series

    • Monitor tilts up and down 10° – monitor tilt varies between monitors Keyboard Adjustment • Keyboard tilts 90° • Keyboard extends 6-1/2" (165 mm) – optional rev. 05/30/03 870-03-005 9" (229 mm) Side View 10˚ Side View Side View 90˚...
  • Page 31 16-1/2" 3-1/2" (419 mm) Fig. 1 Fig. 2 Mounting Options & Accessories for VL Series Surface Attachment Options Direct Mounting Command Posts 870-03-005 Weight Capacity** 9–34 lbs (4.1–15.5 kg) 5–30 lbs (2.3–13.6 kg) 5–30 lbs (2.3–13.6 kg) Centerline of Four-Hole...

  • Page 32: Md Series

    MD102 accepts monitor up to 17-1/4" x 14-1/2" x 3" (438 x 368 x 76 mm). Mounting Options & Accessories for MD Series Surface Attachment Options Enclosures (Orderguide 870-03-017) 19" Racks rev. 05/30/03 870-03-005 Max. Monitor Weight 25 lbs (11.3 kg) 25 lbs (11.3 kg)

  • Page 33: Carts: Mobile Workstand

    Range of Motion Height adjustment • Up to 20" (508 mm) 20" (508 mm) Mobile WorkStand Standing or sitting use Fully mobile – casters allow unlimited system relocation 870-03-005 • ARMS Orderguide • rev. 05/30/03...
  • Page 34 CPU Holders & Wire Storage Basket * Recommended for system stability. ** Requires separately ordered Pole Mount Bracket. May be mounted to Bracket shared by other peripheral or Arm. rev. 05/30/03 870-03-005 27-159-100, Touch-Screen Base Unit Dimensions H x W x D 1"...
  • Page 35 Kit for Pivot (1 Bracket & Pivot Mount Plate) Pivot Mount Plate Surface Attachment Options Page # 870-03-005 Dimensions H x W x D 50" x 2" x 2" (1270 x 51 x 51 mm) 7" x 27" x 27"...
  • Page 36 Consult the Mobile WorkCenter Orderguide, 870-03-010, for ordering information. HD Series Cart: The HD Series Cart provides easy single-motion adjustment to place your computer where you need it with little effort. Consult the HD Series Cart Orderguide, 870-03-019, for ordering information. rev. 05/30/03 870-03-005...
  • Page 37 Mobile WorkCenter shown with 300 Series Desk Mount. HD Series Carts HD Series Cart – Flat Panel Configuration shown with Ergotron Power Supply at bottom. Mobile WorkStand shown in sitting use position. Mobile WorkCenter shown with 6" adjustable Suspension Arm for CRTs.

  • Page 38: Surface Attachment Options

    Always consult the appropriate construction, engineering, or architectural personnel to ensure the product is mounted securely to handle applied loads. For most vertical-surface applications, Ergotron recommends an additional mounting interface, such as a Wall Plate or Wall Track, for added support.

  • Page 39: Wall Tracks

    60-156 97-090 97-091 Wall Track provides a common interface for mounting multiple Ergotron components. When mounting components to Wall Track, you must order the appropriate Track Mount Bracket Kits. Peripherals for Wall Track can be found on pages 45–46. Part...

  • Page 40: Command Posts

    Bracket Interface for Cable Box Note: See “Mounting Options and Uses Table” to determine which Post, Base/Bracket and Arm(s) to choose. rev. 05/30/03 870-03-005 Dimensions (H x W x D) 48" x 3" x 3" (1219 x 76 x 76 mm) 80"...

  • Page 41: Configuration Examples

    HD Series 400 Series Arm Floor vs. Ceiling-Mount Applications Base shown in Base upside floor-mount down in ceiling application application 870-03-005 Floor/Ceiling Wall/Bench/Machine allowable configuration allowable configuration Arm, no Extender Arm w/ Extender Arm, no Extender Arm w/ Extender Arm(s) w/ Extender...

  • Page 42: Pole Mounts

    Note: Slatwall Pole Clamps also available. See Slatwall Components section (p.43) for product information. * Order two Brackets for 200, 300 and 400 Series installation. rev. 05/30/03 870-03-005 Application 200, 300, 400 Series, HD Pivot, Extenders on vertical 2" Round Pole CPU Holders, Wire Storage Basket on vertical 2"...

  • Page 43: Slatwall Components

    Herman Miller Note: Minimum of 3 slats are required to attach slatwall components. Sample Configurations Typical slatwall Vertical Mount Slatwall Bracket 870-03-005 7" Extension w/ Pole Clamp 1-1/2" Round Pole Slatwall Pole Clamp • ARMS Orderguide rev. 05/30/03 Shipping Weight 2 lbs (.9 kg)

  • Page 44: Accessory Selections

    99-033-078 6" (152 mm) 8-1/2" (216 mm) rev. 05/30/03 870-03-005 Dimensions W x D x H 16-1/2" x 7-1/4" x 2" (420 x 185 x 51 mm) 17-1/2" x 9 to 12" x 2-1/2" (445 x 229 to 305 x 64 mm) 7-1/8"...

  • Page 45: Monitor Interface Accessories

    80-059-xxx 80-061-xxx Attach your monitor to Ergotron ARMS with the Quick Mounting Kit – no tools necessary. The Quick Release Kit makes removal and reattachment of your monitor fast and easy. The Tamper Resistant Kit secures the lever of the Quick Release Kit.

  • Page 46: Storage Components

    Number 85-023-100, grey* Footrest * To attach to Command Post, order either Bracket 60-157-100 or 60-158-100. rev. 05/30/03 870-03-005 Dimensions H x W x D 6-1/8" x 13-1/8" x 4-1/8" (156 x 333 x 105 mm) 9-1/8" x 7-7/8" x 4-3/8"...

  • Page 47: Monitor Interface & Vesa Standard Guide

    Contact the monitor manufacturer to see if they have this option available. If it is not available from the monitor manufacturer, Ergotron has developed a number of custom brackets to interface with existing flat panel monitors. Contact Ergotron at 800-888-8458 (option 2) to see if one is available for your monitor.

  • Page 48: Ergonomics Data & Mounting Heights

    Sitting or standing for 95% range of users: ≥ 12.9" vertical adjustment range required. Sitting & standing for average range of users: ≥ 19.5" vertical adjustment range required. Keyboard placement... Keyboard to monitor relationship: The optimal distance is 21" in all applications. rev. 05/30/03 870-03-005 † data expressed in inches Elbow Height Eye-to-Elbow Measurement Var.

  • Page 49: Ergonomic Ground Rules - Metric Units

    Sitting or standing for 95% range of users: ≥ 328 mm vertical adjustment range. Sitting & standing for average range of users: ≥ 495 mm vertical adjustment range. Keyboard placement... Keyboard to monitor relationship: The optimal distance is 533 mm in all applications. 870-03-005 † data expressed in millimeters Elbow Height...

  • Page 50: Mounting Height Illustrations

    62" (1575 mm) Standing Use 46" (1168 mm) (1168 mm) Sitting Use Sitting Use 100 Series or FX Series (Fixed Height) rev. 05/30/03 870-03-005 46" Up to 14" (356 mm) (1168 mm) vertical Standing Use adjustment range 30" (762 mm)
  • Page 51 20" to 22" (508 to 559 mm) Standing Use 40" (1015 mm) Standing Use GENERAL GUIDE: Set the monitor and keyboard at the ergonomic heights shown. 870-03-005 Arm in “full up” position 68" (1575 mm) Arm in “full up” Standing Use position 61"...

  • Page 52: Technical Specifications

    Pivot. For every 1" (25 mm) of additional distance between a monitor's C/G and the end of the Pivot, reduce the weight capacity by 6 lbs (2.7 kg). 1" 2" Weight capacity is 23 lbs rev. 05/30/03 870-03-005 9" 9" 27" 32" (D) 2"...

  • Page 53: Performance Information

    The Table assumes that the Center of Gravity (CG) of the monitor is slightly off center (60%) towards the front. Temperature Range The optimal temperature range for Ergotron ARMS is 40˚ to 110˚F (4˚ to 43˚C). Operating outside this range may affect performance of product. Warranty Information We are so confident that Ergotron products will outlast your computer hardware that we back our structural components with a lifetime warranty and a five (5)-year warranty on Arms and Pivots.

  • Page 54: Interface Dimensions For Direct Mounting

    Break Through Allowed 1.944" (49.3 mm) B #3/8-16 UNC Tap 1.0 Deep, No Break Through Allowed Ø.188" (4.8 mm) rev. 05/30/03 870-03-005 400 Series Vertical Mount Fixed Arm Interface (includes Combination Fixed Arm) Ø .203" (5.2 mm) Slotted 2.05" (52.1 mm) 6"...
  • Page 55 .888" (198.8 mm) 2.088" (22.6 mm) (53.0 mm) 30.125" (765.2 mm) 27.75" (704.9mm) Ø .5" (12.7 mm) 870-03-005 100 Series Double Pivot & Double Pivot w/ P/L Interface 1.75" (44.5 mm) 1.063" 1.063" (26.9 mm) 1.728" (43.9 mm) FX SERIES FX Series Hole Pattern 4.53"...

  • Page 56: Wall Mount Bracket

    Command Post Base, 3" x 3" Hole Pattern Center lines Ø .55" (14 mm) .87" (22 mm) 7.52" (191 mm) rev. 05/30/03 870-03-005 WALL TRACK Wall Track Hole Pattern 5" (127 mm) Outline of an attached Vertical Mount Holes used 1"...
  • Page 57 EXTENDER – 100 SERIES Extender for 100 Series Hole Pattern 1.063" (26.9 mm) Ø .19" (4.8 mm) 1.063" (26.9 mm) 870-03-005 EXTENDER – HD SERIES Extender for HD Series Hole Pattern 3.27" (83 mm) 1" (25 mm) 4.5" (114 mm) .42"...

  • Page 58: Product Dimensions

    (416 mm) 3.88" (98.5 mm) .461" 2.95" (11.7 mm) (75 mm) .203" (5.15 mm) Front View Combo Monitor Bracket rev. 05/30/03 870-03-005 14-1/8" (358 mm) 14-7/8" (379 mm) 16-7/8" (429 mm) 14-3/8" (365 mm) 4-3/4" (121 mm) 14-1/8" (358 mm) 6-5/8"...
  • Page 59 11-5/8" (244 mm) (295 mm) 24-3/4" 33-3/4" (328 mm) (857 mm) 7-1/4" (183 mm) 3-3/8" 3-3/8" (86 mm) (86 mm) 870-03-005 11-1/2" (292 mm) 9" (229 mm) 9" (229 mm) 1-7/8" (48 mm) 11-1/2" (292 mm) 43" (1092 mm) 10-3/8"...
  • Page 60 Attention: Listed allowable widths assume monitor thickness is 4" (102 mm). If monitor thickness is less, allowable width may be more. Contact Ergotron for details. 200 Series Pre-configurations that use Crossbars come standard with Sliding Pivots (i.e., without P/L). •...
  • Page 61 Dia. x4 2.95" (75 mm) 3.94" (100 mm) (Attaches to the Monitor Bracket and a 100 mm ™ Monitor) ® ™ VESA FDMI Monitor) 7" (178 mm) 870-03-005 5-3/8" (137 mm) 2" (51 mm) • ARMS Orderguide rev. 05/30/03 •...
  • Page 62 Attention: Listed allowable widths assume monitor thickness is 4" (102 mm). If monitor thickness is less, allowable width may be more. Contact Ergotron for details. DS100 Series Pre-configurations that use Crossbars come standard with Sliding Pivots (i.e., without P/L). •...
  • Page 63 8-1/8" (208 mm) 18-1/2" (470 mm) 15" (381 mm) 9" (229 mm) 21" (533 mm) 1" Maximum (25 mm) Monitor Thickness 12-1/2" (318 mm) Maximum Monitor 13-1/2" Maximum Height Monitor (343 mm) Width • ARMS Orderguide 870-03-005 rev. 05/30/03 •...

  • Page 64: Sample Configurations

    Sample Configurations Configure your own system with Ergotron’s modular components. Examples listed here are some configuration ideas. A. 400 Series ARMS on Wall Track configuration: 45-007-099, 400 Series Arm, Vertical Mount, Rotate, Double Pivot with P/L 45-006-099, 400 Series Arm, Vertical...

  • Page 65: Track Configuration

    Track configuration: 47-012-099, 100 Series, Double Pivot 47-009-099, 100 Series, Keyboard/Laptop Pivot 97-091, Track Mount Bracket Kit (2) 31-017-182, 26" Wall Track 77-049-100, Keyboard Tray 85-014-100, Front Mouse Tray 60-197-100, 100 Series 5" Extender 870-03-005 rev. 05/30/03 • ARMS Orderguide •...
  • Page 66 Notes • ARMS Orderguide • rev. 05/30/03 870-03-005...
  • Page 67 Notes • ARMS Orderguide • 870-03-005 rev. 05/30/03...
  • Page 68 1982, Ergotron has designed and engineered products specifically for improving the human interface with computers. Innovative engineering concepts incorporate the human factor into each and every product. With our patented Monitor Suspension technology as the core, Ergotron designs Computer Mounting Solutions that consistently meet the ever changing needs of our customers.
