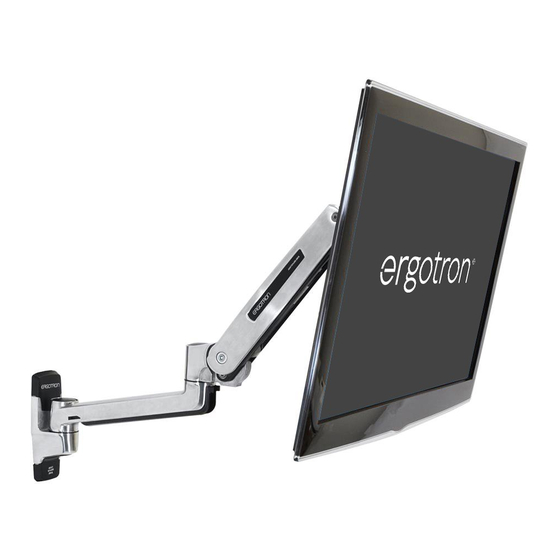

Ergotron LX Sit-Stand Wall Mount Monitor Arm User Manual

Hide thumbs Also See for LX Sit-Stand Wall Mount Monitor Arm:

Advertisement

Quick Links

Download this manual

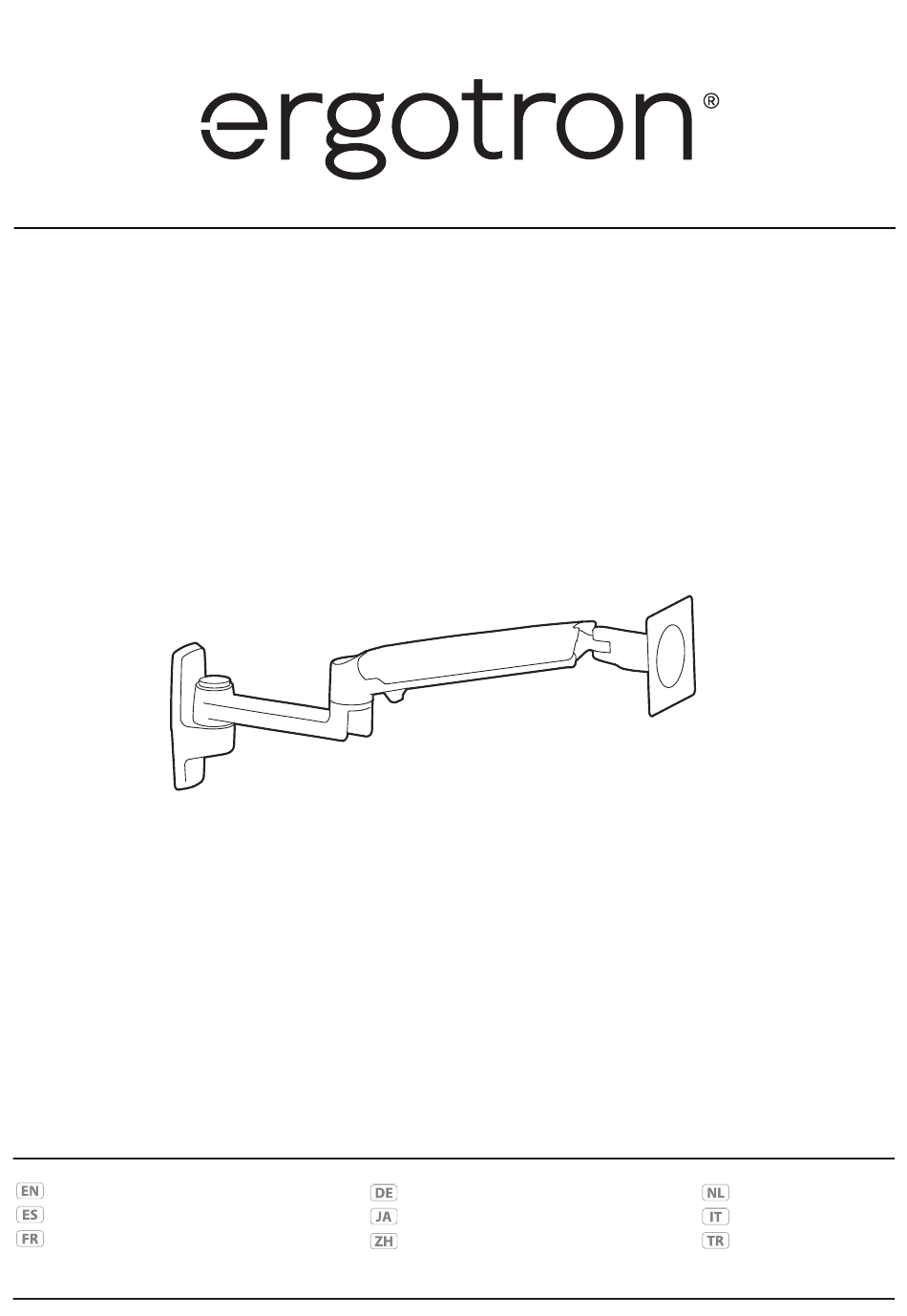

Sit-Stand Wall Mount Monitor Arm
User Guide
Guía del usuario
Manuel de l'utilisateur
www.ergotron.com |
USA: 1-800-888-8458
888-45-275-W-01 rev. L • 09/19
Includes
Constant Force
™
Technology
|
Europe: +31 (0)33-45 45 600
LX
Gebruikersgids
ユーザーガイド
用户指南
|
China: 400-120-3051
Benutzerhandbuch
Guida per l'utente
Kullanıcı Kılavuzu
|
Japan: japansupport@ergotron.com
1 of 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX Sit-Stand Wall Mount Monitor Arm and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron LX Sit-Stand Wall Mount Monitor Arm

Summary of Contents for Ergotron LX Sit-Stand Wall Mount Monitor Arm

  • Page 1 ™ Technology User Guide Gebruikersgids Benutzerhandbuch Guía del usuario ユーザーガイド Guida per l’utente Manuel de l’utilisateur 用户指南 Kullanıcı Kılavuzu www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 1 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 2 Safety Seguridad Sécurité Sicherheit 安全性 安全性 Veiligheid Sicurezza Güvenlik WARNING: Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular application.
  • Page 3 M3 x 6mm M4 x 10mm M4 x 10mm M5 x 7mm M8 x 80mm M4x12mm M6 x 45mm 10-24 x 1/2" M5x12mm M6x12mm 1/8" M5x20mm M8-M5 Reducer 13mm Tools Needed Herramientas necesarias WOOD CONCRETE Outillage requis MADERA CONCRETO Benötigtes Werkzeug BOIS BÉTON SOLIDE HOLZBALKENTRÄGER...
  • Page 4 Mounting Height for Ergonomic Workstation This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’4”-5’9” (163-175cm). If user heights are diff erent than this, you should change mounting height to accommodate user heights. (Change mounting height one inch for every one inch diff...
  • Page 5 Determine mounting location: Determine el lugar de instalación: Déterminez l’emplacement de pose : Montageposition bestimmen: 取り付け位置の決定: 确定安装位置： Bepaal de plaats van de bevestiging: Stabilire l’ubicazione di montaggio: Montaj konumunu belirleyin: 20” (516mm) 10.2” 0.2” (259mm) (5mm) 4.2” 1.3” (32mm) (106mm) 22”...
  • Page 6 Rotate – Portrait/Landscape For 0° rotation, add screw. Rotación (formato vertical y apaisado) Rotation : mode portrait et paysage Rotation – Portrait-/Landscapefunktion 縦/横 纵向/横向 Rotazione – Portrait - Landscape Rotazione – Portrait - Landscape M3 x 6mm Döndürme - Portre/Peyzaj 0°...
  • Page 7 75x75mm 100x100mm M4 x 10mm M4 x 10mm Skip to page 10 to continue installation 7 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 8 100x200mm 200x100mm 200x200mm M5 x 7mm Use the size of screw that fi ts your monitor. M4x12mm M5x12mm M6x12mm NOTE: To reduce M8 holes for use with M5 screws, or if you have a model with Samsung holder rings, follow the M8M5 KIT instructions on the next page. 8 of 24 888-45-275-W-01 rev.
  • Page 9 M8M5 KIT Instructions NOTE: follow this step only if your TV/monitor has M8 holes which need to be reduced to M5 or for Samsung models using the holder ring. M5x20mm M8-M5 Reducer TV/Monitor Mounting M8 size hole Holder Ring (Not included *Samsung Only) 9 of 24 888-45-275-W-01 rev.
  • Page 10 MONTAGGIO SU TRAVE IN LEGNO AHŞAP SAPLAMA MONTAJI CONCRETE CONCRETO BÉTON MASSIVBETON コンクリート 水泥质 BETON CEMENTO BETON ERGOTRON PRODUCT PRODUCTO ERGOTRON PRODUIT ERGOTRON ERGOTRON PRODUKT エルゴトロン製品 ERGOTRON 产品 ERGOTRON-PRODUCT PRODOTTO ERGOTRON ERGOTRON ÜRÜNÜ 10 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 11 WOOD STUD MOUNTING MONTAJE EN ESTRUCTURA DE MADERA POSE SUR UN MONTANT EN BOIS BEFESTIGUNG AN HOLZSTÄNDERN Ø 3/16" (5 mm) 木製スタッドへの取り付け 木质立柱安装 BEVESTIGEN AAN EEN HOUTEN STIJL MONTAGGIO SU TRAVE IN LEGNO AHŞAP SAPLAMA MONTAJI M8 x 80mm 13mm 11 of 24 888-45-275-W-01 rev.
  • Page 12 CONCRETE CONCRETO BÉTON Ø 3/8" (9.5 mm) MASSIVBETON コンクリート 水泥质 13mm BETON CEMENTO WARNING: Mounting holes must be at least 3-1/8” (80mm) deep and M8 x 80mm BETON must be located within solid concrete, not mortar or covering material. If you drill into an area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid concrete! WARNING: Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition...
  • Page 13 ERGOTRON PRODUCT; Wall Track and Brackets sold separately. PRODUCTO ERGOTRON; Guía y soporte de pared Vendido por separado PRODUIT ERGOTRON; 1/8" Montant mural et fi xation Vendu séparément ERGOTRON PRODUKT; Alu-Profi lschiene und Bügel Separat erhältlich エルゴトロン製品; ウォールトラックおよびブラケット別売 ERGOTRON 产品;...
  • Page 14 Do Not Overtighten Screw! M6 x 45mm CONTAINS GREASE. Use bag to protect hands from getting greasy. NOTE: when sliding sleeve on to bracket, align slot Top View over rotation stop. Rotation Stop on Sleeve on Slot Bracket Bracket in Sleeve 14 of 24 888-45-275-W-01 rev.
  • Page 15 15 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 16 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 17 Adjustment Step Lift – Up and down Elevación (arriba y abajo) Ajustement en hauteur : bas et haut Höhenverstellung – rauf und runter リフト(上下) 升降（上下） Verstel in hoogte – Omhoog en omlaag Sollevamento – Su e Giù Kaldırın - Yukarı ve aşağı Increase Lift Strength Decrease Lift Strength If the mounted weight is too heavy...
  • Page 18 Adjustment Step Tilt – Forward and Backward Inclinación (adelante y atrás) Inclinaison : Avant et arrière Neigung – vor und zurück チルト (前後) 倾斜（前后） Kantel – Naar voren en naar achteren Inclinazione – Avanti ed Indietro Eğin - Öne ve Geriye Increase Lift Strength Decrease Lift Strength If the mounted weight is too heavy...
  • Page 19 Yup, that’s it. Really. Now your LX Arm is ready for however you work best. Learn more about ergonomic computer use at: www.ergotron.com/ergonomics 19 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 20 Safety Seguridad Sécurité Sicherheit 安全性 安全性 Veiligheid Sicurezza Güvenlik WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage! ADVERTENCIA: Riesgo de energía almacenada: El mecanismo del brazo está...
  • Page 21 Safety Seguridad Sécurité Sicherheit 安全性 安全性 Veiligheid Sicurezza Güvenlik Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment. Advertencia: Dado que los materiales de la superfi cie de montaje pueden variar enormemente, es imprescindible que se cerciore de que la superfi...
  • Page 22 Safety Seguridad Sécurité Sicherheit 安全性 安全性 Veiligheid Sicurezza Güvenlik Weight Capacity: Capacidad de soporte de peso: Poids supporté : Tragfähigkeit: 可搬重量: 重量： Draagvermogen: 25 lbs Portata: (11.3 kg) Ağırlık Sınırı: 3.15" (80mm) 1.57" (40mm) 1.34" (34mm) 1.14" (29mm) 6.5" 7.1" (165mm) (180mm) 5.1"...
  • Page 23 How to remove covers: Top Cover Bottom Cover 23 of 24 888-45-275-W-01 rev. L • 09/19...
  • Page 24 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com Para acceder a la última versión de la Guía de instalación para el usuario, ingrese a www.ergotron.com Para Garantía, visite: www.ergotron.com/warranty Para servicio, visite: www.ergotron.com Para conocer los números telefónicos locales de atención al cliente, visite: http://contact.ergotron.com...
