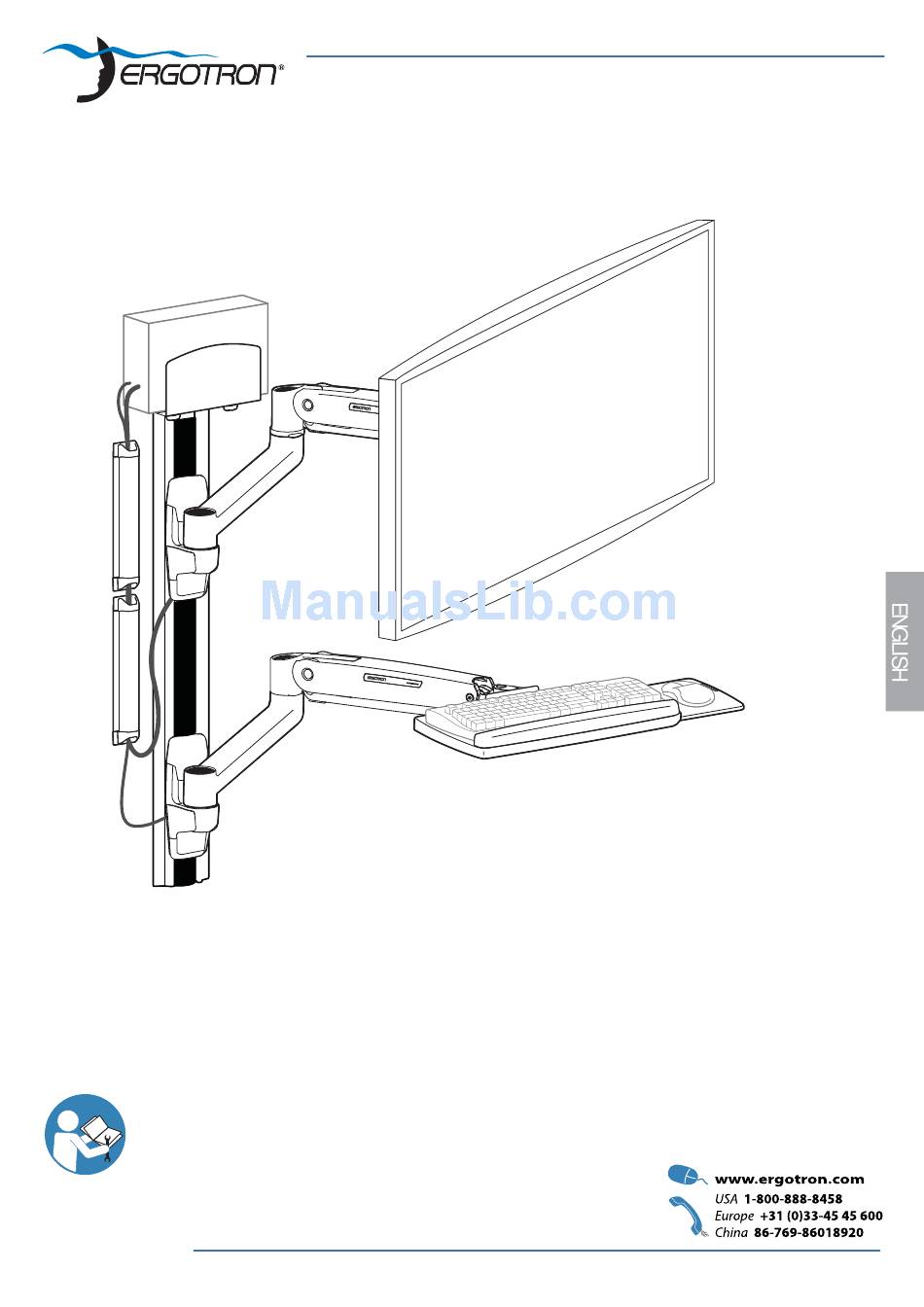

ASSEMBLY INSTRUCTIONS
LX Sit-Stand Wall Mount System
with Universal CPU Holder
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
888-45-277-W-03 rev.G • 06/14
1 of 28

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron LX

Summary of Contents for Ergotron LX

  • Page 1 ASSEMBLY INSTRUCTIONS LX Sit-Stand Wall Mount System with Universal CPU Holder For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano...

  • Page 2: Features And Specifications

    Features & Specifi cations Maximum Screen Size* = 42” 2" - 8" (102 - 203 mm) *Limited to 25 lbs 40 lbs (18 kg) maximum 25 lbs (11.3 kg) 3.15" (80mm) 1.57" (40mm) 1.34" (34mm) 1.14" (29mm) 6.5" 7.1" 0-5 lbs (165mm) (180mm) 5.1"...

  • Page 3: Tools Needed

    Tools Needed Stud Finder Concrete Wall Mounting Ø 3/8” (10mm) 13 mm Wood Stud Mounting 7/16" Ø 3/16" (5mm) Components M4 x 14mm 2x 1x M4.2 x 25mm 1/4-20 x 1/2" 1/4-20 x 2" M10 x 16mm 888-45-277-W-03 rev.G • 06/14 3 of 28...
  • Page 4 Components M3 x 6mm M4 x 10mm M4 x 10mm M6 x 45mm M5 x 7mm 10-24 x 1/2" M4 x 8mm 1/8” M8 M5 Kit M5x20mm M8-M5 Reducer M4x12mm M5x12mm M6x12mm 888-45-277-W-03 rev.G • 06/14 4 of 28...

  • Page 5: Determine Mounting Location

    Mounting Height for Ergonomic Workstation This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’4”-5’9” (163-175cm). If user heights are diff erent than this, you should change mounting height to accommodate user heights. (Change mount- ing height one inch for every one inch diff erence in user heights).
  • Page 6 WARNING: Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage.
  • Page 7 Wood Studs ≥ 25 gauge steel Madera Pernos de acero de calibre ≥ 25 Bois Goujons ≥ calibre 25 en acier Solide Holzbalkenträger Bolzen ≥ Blechlehre Nr. 25 Massief Houten Pilaren Verbindingsbouten ≥ 25 gauge staal Due montanti in legno massiccio Prigionieri in acciaio spessore ≥...
  • Page 8 Hollow Wall Pared Requires minimum material thickness of 5/8” (16 mm). ≥ 5/8” Requiere un grosor mínimo de 16 mm. Wand Epaisseur minimum de 16 mm. Muur Parete Requer uma espessura mínima de 5/8” (16 mm). Sheetrock 壁 Mit einer Materialdicke von mindestens 16 mm. Sheetrock Vereist een minimale materiaaldikte van 1.6 cm.
  • Page 9 M10 x 16mm 1/8" M10 x 16mm 2" - 4" 4" - 8" (51 - 102 mm) (102 - 203 mm) Security Feature Función de seguridad 7/16" Fonction de sécurité Sicherheitsmerkmal Beveiligingsfunctie Dispositivo antifurto セキュリティ機能 888-45-277-W-03 rev.G • 06/14 9 of 28...
  • Page 10 Optional locking feature (customer supplied lock) 1/4-20 x 1/2" 10-24 x 1/2" NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before installation to prevent back-out.
  • Page 11 Mount extension and LCD arm to wall bracket. Do Not Overtighten Cap Screw! M6 x 45mm M6 x 45mm NOTE: when Top View sliding sleeve on to bracket, align slot over rotation stop. Rotation Stop Slot Sleeve on Do Not on Bracket in Sleeve Bracket...
  • Page 12 Portrait / Landscape Options OPTION i If you want full portrait/landscape rotation, skip to step 8 on the next page. OPTION ii If you do not want your TV/Monitor to rotate all all, you can stop rotation by inseting the set screw. 0˚...
  • Page 13 Check size of TV/Monitor hole TV/Monitor Hole VESA Adapter Pattern Sizes Confi gurations pattern 100mm (3-15/16”) 75mm (2-15/16”) 75x75mm 100x100mm 100mm (3-15/16”) 100x200mm 200mm (7-7/8”) 200x200mm 200mm (7-7/8”) 200x100mm 888-45-277-W-03 rev.G • 06/14 13 of 28...
  • Page 14 Mount Type A TV/Monitor to Arm M4 x 10mm 75x75mm 100x100mm 100mm (3-15/16”) 75mm (2-15/16”) M4 x 10mm M4 x 10mm 888-45-277-W-03 rev.G • 06/14 14 of 28...
  • Page 15 Mount VESA Adapters to Arm based on TV/Monitor hole pattern size (B, C, or D) . M5 x 7mm 888-45-277-W-03 rev.G • 06/14 15 of 28...
  • Page 16 Mount Type B, C, or D TV/Monitor to Arm 100mm (3-15/16”) 200mm (7-7/8”) 200mm (7-7/8”) NOTE: To reduce M8 holes for use with M5 screws, or if you have a model with Samsung holder rings, follow the M8M5 KIT instructions on the next page.
  • Page 17 M8M5 KIT Instructions NOTE: follow this step only if your TV/monitor has M8 holes which need to be reduced to M5 or for Samsung models using the holder ring. Install M8M5 reducer bushing to TV/Monitor and use M5 x 20 mm monitor screws to secure when using the Samsung holder ring.
  • Page 18 Mount extension and LCD arm to wall bracket. M4 x 8mm Do Not Overtighten Cap Screw! M6 x 45mm M6 x 45mm NOTE: when Top View sliding sleeve on to bracket, align slot over rotation stop. Rotation Stop Slot Sleeve on Do Not on Bracket in Sleeve...
  • Page 19 888-45-277-W-03 rev.G • 06/14 19 of 28...

  • Page 20: Bottom Cover

    Attach top and To remove covers: bottom bracket a) Wedge the blade of a fl at screwdriver into the gap between the wall mount bracket and the cover. Rotate the blade upward to pry the cover away. covers b) Repeat on the opposite side of the wall mount bracket. c) Once the cover is free on both sides, lift it off .
  • Page 21 CABLE ROUTING Leave Slack in cable 888-45-277-W-03 rev.G • 06/14 21 of 28...
  • Page 22 CABLE ROUTING Ø 7/32" (5.6 mm) M4.2 x 25mm M4.2 x 25mm 888-45-277-W-03 rev.G • 06/14 22 of 28...
  • Page 23 CABLE ROUTING Leave Slack in cable 888-45-277-W-03 rev.G • 06/14 23 of 28...
  • Page 24 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 25 Lift – Up and down Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength: Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength:...
  • Page 26 Tilt – Forward and Backward CAUTION: DO NOT remove screw. Removing screw may cause damage to equipment. Increase Friction If this product moves too easily, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move, then you'll need to decrease friction: 888-45-277-W-03 rev.G •...
  • Page 27 How to remove this tilting feature: 3° 3° Save these screws incase you want to add this feature later. M4 x 14mm 888-45-277-W-03 rev.G • 06/14 27 of 28...
  • Page 28 Blink - Blink often to avoid dry eyes. Break • 2 to 3 minutes every 20 minutes • 15 to 20 minutes every 2 hours. For local customer care phone numbers visit: http://contact.ergotron.com 888-45-277-W-03 rev.G • 06/14 28 of 28...
